LL-VA-RSA-H
LL-VA-RSA-T.pngLL-VA-RSA-H
Round Straight Aluminum Pole Hinged Base - Made in USA - Virginia
25 Year design life

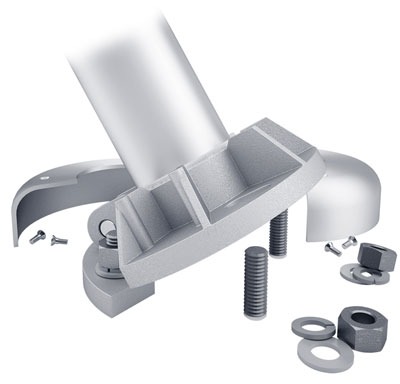

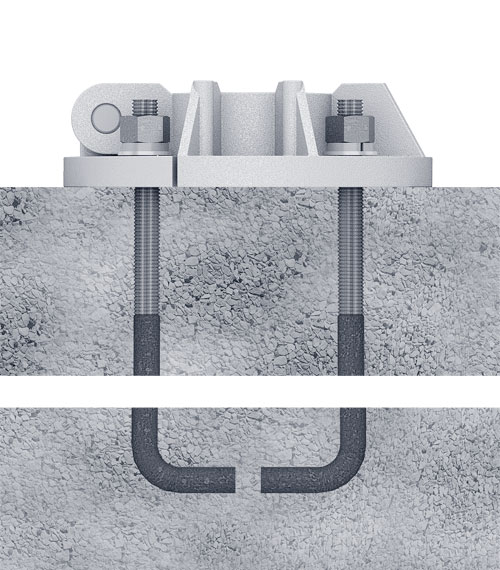

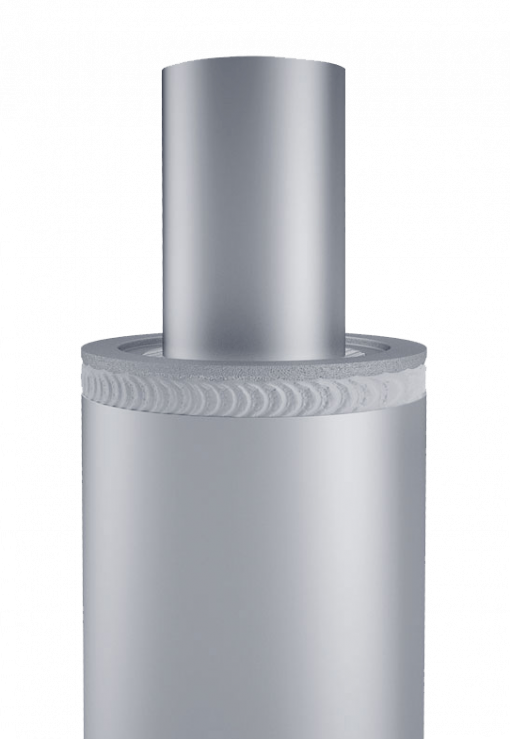

The pole shaft will be constructed of seamless extruded tube of 6063 Aluminum Alloy per the requirements of ASTM B221. The shaft assembly shall be full-length heat treated after base weld to produce a T6 temper. Handhole Anchorage Hinged Cast Aluminum Base Flange of Alloy 356-T6 with 2-Piece Cast Aluminum Base Cover and Stainless Steel Tamper-Resistant Attaching Screws.
The pole shaft will be constructed of seamless extruded tube of 6063 Aluminum Alloy per the requirements of ASTM B221. The shaft assembly shall be full-length heat treated after base weld to produce a T6 temper. Handhole Anchorage Hinged Cast Aluminum Base Flange of Alloy 356-T6 with 2-Piece Cast Aluminum Base Cover and Stainless Steel Tamper-Resistant Attaching Screws.
Resources
Satin Aluminum Finish
Pole surface will contain a uniform Brushed Aluminum natural finish. Finish to be achieved utilizing specially formulated abrasives in a multi-pass, rotary sanding operation.
Powder Coat Finish
Coating material will be a thermosetting polyester AAMA 2604 Super Durable powder electrostatically applied, oven cured and bonded in a closed loop, automated system. Minimum thickness of finish will be two (2) mils. Powder Coat Finish Warranty on aluminum is five (5) years.
Lead Time Information
MADE IN USA
Built to order in Virginia
4 - 6 Weeks
MADE IN USA
Built to order in Virginia
4 - 6 Weeks
Color / Finish
- Black
- Custom
- Dark Bronze
- Dark Green
- Gray
- Satin Aluminum
- White
Pole Height
- 8 Ft.
- 10 Ft.
- 12 Ft.
- 14 Ft.
- 16 Ft.
- 18 Ft.
- 20 Ft.
Materials
- Aluminum
Ratings & Compliance
- Build America Buy America (BABA)
- Buy American Act (BAA)
- Made in America
Style
- Hinged
- Straight
Shape
- Round
Warranty
- 5 yr
Similar Products
LL-VA-SSSTA
Square Straight Steel Tenon Arms - Made in USA - Virginia
LL-VA-RSATA-BH
Round Straight Aluminum Tenon Arms Bullhorn - Made in USA - Virginia

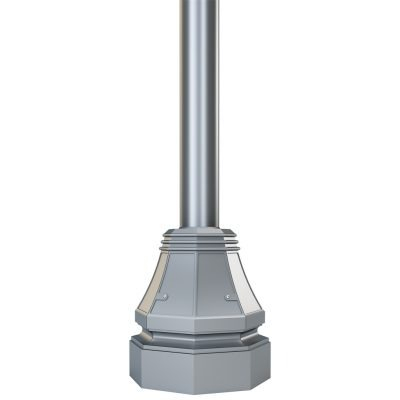

LL-VA-S20-TR
Style 20 Structural - Tapered Round Aluminum Pole - Made in USA - Virginia

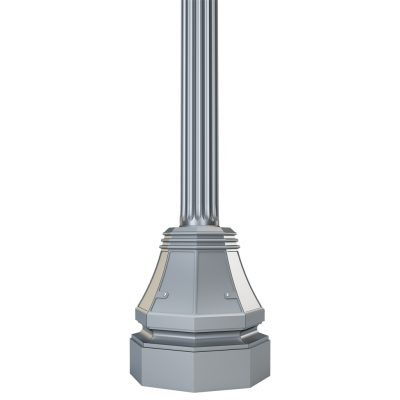

LL-VA-S20-SF12
