LL-VA-SSA-4
SSA 4 BOLT BASE.jpegLL-VA-SSA-4

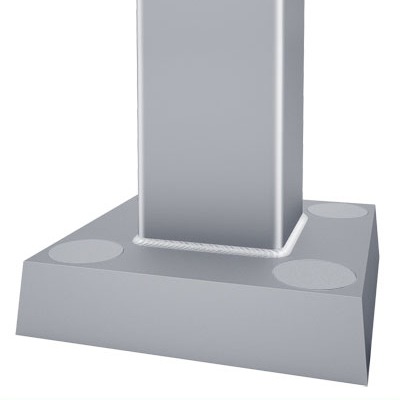

Square Straight Aluminum Pole 4 Bolt Base - Made in USA - Virginia
25 Year design life
The pole shaft will be constructed of seamless extruded tube of 6XXX Series Aluminum Alloy per the requirements of ASTM B221. The shaft assembly shall be full-length heat treated after base weld. 4-Bolt Cast Aluminum Base Flange of Alloy 356-T6 with Aluminum Snap-In Bolt Covers.
The pole shaft will be constructed of seamless extruded tube of 6XXX Series Aluminum Alloy per the requirements of ASTM B221. The shaft assembly shall be full-length heat treated after base weld. 4-Bolt Cast Aluminum Base Flange of Alloy 356-T6 with Aluminum Snap-In Bolt Covers.
Resources
Satin Aluminum Finish
Pole surface will contain a uniform Brushed Aluminum natural finish. Finish to be achieved utilizing specially formulated abrasives in a multi-pass, rotary sanding operation.
Powder Coat Finish
Coating material will be a thermosetting polyester AAMA 2604 Super Durable powder electrostatically applied, oven cured and bonded in a closed loop, automated system. Minimum thickness of finish will be two (2) mils. Powder Coat Finish Warranty on aluminum is five (5) years.
Lead Time Information
MADE IN USA
Built to order in Virginia
4 - 6 Weeks
MADE IN USA
Built to order in Virginia
4 - 6 Weeks
Color / Finish
- Black
- Custom
- Dark Bronze
- Dark Green
- Gray
- Satin Aluminum
- White
Pole Height
- 8 Ft.
- 10 Ft.
- 12 Ft.
- 14 Ft.
- 15 Ft.
- 16 Ft.
- 18 Ft.
- 20 Ft.
- 25 Ft.
- 30 Ft.
- 35 Ft.
Materials
- Aluminum
Style
- Straight
Shape
- Square
Warranty
- 5 yr
