LL-VA-S47-TR
LL-VA-S47.3.jpgLL-VA-S47-TR
Style 47 Structural - Tapered Round Decorative Aluminum Pole - Made in USA - Virginia
25 Year design life.

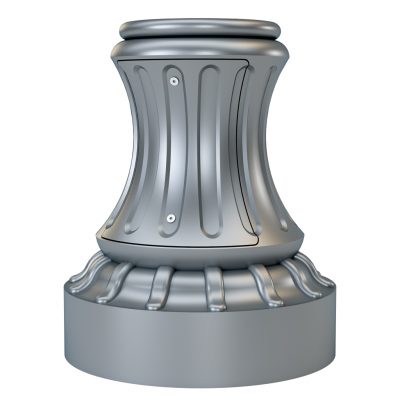

Style 47 features a Cast Aluminum, 1-Piece Structural Pedestal Base of Alloy 356 per ASTM B26 or B108. The base shall have an access door with cast aluminum cover and stainless steel attaching hardware. An internal grounding provision will be provided opposite the access door.
Style 47 features a Cast Aluminum, 1-Piece Structural Pedestal Base of Alloy 356 per ASTM B26 or B108. The base shall have an access door with cast aluminum cover and stainless steel attaching hardware. An internal grounding provision will be provided opposite the access door.
Resources
- Product Code: S47
- Base Diameter: 16 in
- Base Height: 1 ft – 9 in

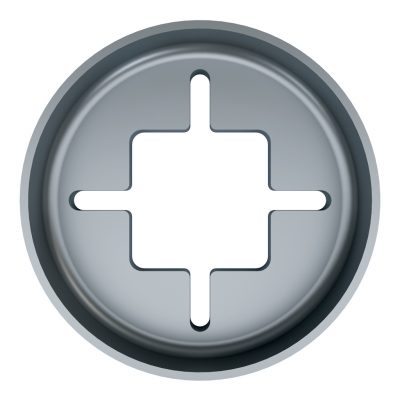

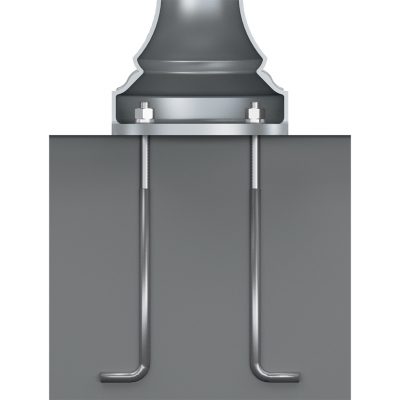

- Bolt Circle: 8 in – 12 in
- Butt Diameters: 4 in | 5 in | 6 in
- Mounting Heights: Up to 25 ft
- Construction: Aluminum Alloy 356
Powder Coat Finish
Coating material will be a thermosetting polyester AAMA 2604 Super Durable powder electrostatically applied, oven cured and bonded in a closed loop, automated system. Minimum thickness of finish will be two (2) mils. Powder Coat Finish Warranty on aluminum is five (5) years.
Lead Time Information
MADE IN USAÂ
Built to order in Virginia
8 - 10 Weeks
MADE IN USAÂ
Built to order in Virginia
8 - 10 Weeks
Color / Finish
- Black
- Custom
- Dark Bronze
- Dark Green
- Gray
- White
Pole Height
- 8 Ft.
- 10 Ft.
- 12 Ft.
- 14 Ft.
- 16 Ft.
- 18 Ft.
- 20 Ft.
- 25 Ft.
Materials
- Aluminum
Style
- Decorative
- Tapered
Shape
- Round
Warranty
- 5 yr
