LL-BHM

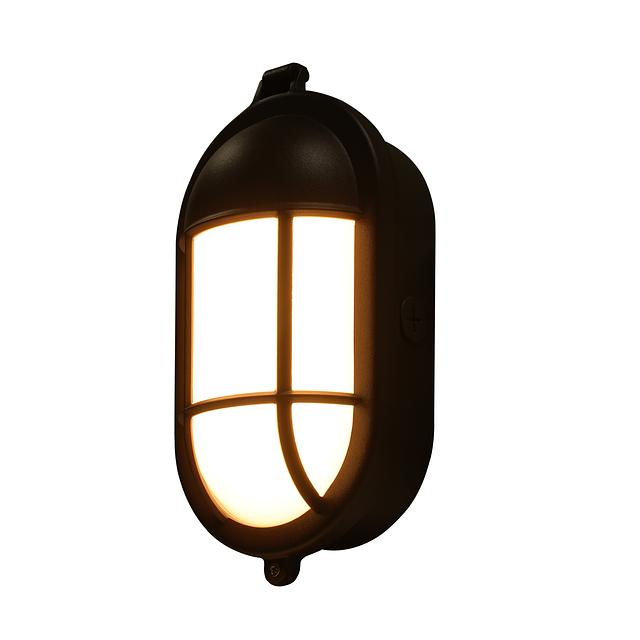

LL-BHM.2.jpgLL-BHM

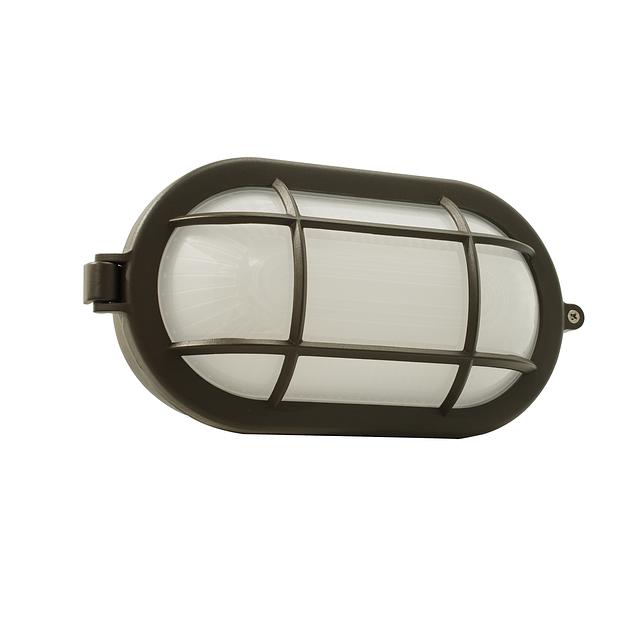

LED BULKHEAD MINI
The LITELUME™ Bulkhead Mini (LL-BHM) is designed to replace HID lighting systems up to 175w MH or HPS. Recommended mounting heights are 8 to 20 feet. It features field-selectable lumens and CCT with 4 different styles.
Applications: Entryways, Tunnels, Walkways, Exterior Wall Lighting, Building Entrances, Pedestrian Walkways, Multi-use Facilities, Industrial Facilities, Parking Lots, Storage Facilities, Education, Multi-Family, Retail, Office.
Applications: Entryways, Tunnels, Walkways, Exterior Wall Lighting, Building Entrances, Pedestrian Walkways, Multi-use Facilities, Industrial Facilities, Parking Lots, Storage Facilities, Education, Multi-Family, Retail, Office.
Resources
Premium Powder-Coat Die Cast Aluminum Bronze Housing
Frosted Polycarbonate Lens
Frosted Polycarbonate Lens
Premium LED's
Ultra efficient driver
Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F)
Universal 120-277 AC voltage (50-60Hz)
0-10V DC dimming driver
Integrated photocell
Photocell can be enabled or disabled by switch
Input transient surge protection = 1kV
Power factor > 90
Total harmonic distortion < 20%
IkV Surge Protection
Ultra efficient driver
Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F)
Universal 120-277 AC voltage (50-60Hz)
0-10V DC dimming driver
Integrated photocell
Photocell can be enabled or disabled by switch
Input transient surge protection = 1kV
Power factor > 90
Total harmonic distortion < 20%
IkV Surge Protection
Long-life LEDs provide 157,000 hours of operation with at least 70% of initial lumen output (L70), and 47,000 hours with at least 90% of initial lumen output (L90)
cULus listed for wet locations
Complies with FCC Part 15, class A
IP65 rated for ingress protection
IK08 rated for impact protection
QuickShip Ordering Information
LL-BHM-4L-UNV-SCT-SP-BZ-PC
LL-BHM-GRIDFP-4L-UNV-SCT-SP-BZ-PC
LL-BHM-GRIDHOZFP-4L-UNV-SCT-SP-BZ-PC
LL-BHM-GRIDVERTFP-4L-UNV-SCT-SP-BZ-PC
cULus listed for wet locations
Complies with FCC Part 15, class A
IP65 rated for ingress protection
IK08 rated for impact protection
QuickShip Ordering Information
LL-BHM-4L-UNV-SCT-SP-BZ-PC
LL-BHM-GRIDFP-4L-UNV-SCT-SP-BZ-PC
LL-BHM-GRIDHOZFP-4L-UNV-SCT-SP-BZ-PC
LL-BHM-GRIDVERTFP-4L-UNV-SCT-SP-BZ-PC
Lumens
- 2900 Lm
- 3400 Lm
- 3800 Lm
Watts
- 19 w
- 23 w
- 26 w
CRI
- 80 CRI
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Bronze
Controls Options
- Photocell
Dimming Protocol
- 0-10 V
Efficacy
- 152 lm/w
Lamp Source
- LED
Listings
- UL
- cULus
Materials
- Die-Cast Aluminum
Mounting
- Surface
Ratings & Compliance
- Exterior
- FCC
- IK08
- IP65
- Wet
Shape
- Oval
Voltage
- 120-277 V
Warranty
- 10 yr
