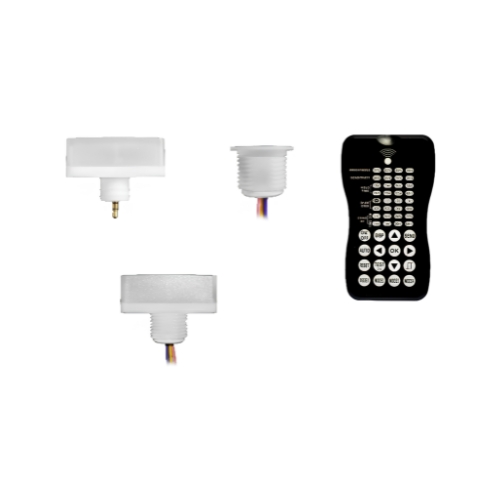

ANT-11-4TANT-11-4T
12-24V DC 0-10V MICROWAVE BI-LEVEL MOTION SENSOR
The ANT-11-4T low voltage Microwave b-level motion sensor provides 3 levels of light control based on motion and/or daylight contribution. It controls 0-10VDC LED drivers or dimming ballasts and as rated for wet and cold locations. All control parameters are adjustable via a wireless
configuration tool.
configuration tool.
Resources
Operating Voltage: DC 12-24V Â
Microwave Frequency: 5.8 GHz ±75 MHz
Mounting Height: 40 FT Max
Detection Radius: 26 FT Max
Dim Control Output: 0-10V
Temperature: -40°F~+158°F(-40°C ~+70°C)
Microwave Frequency: 5.8 GHz ±75 MHz
Mounting Height: 40 FT Max
Detection Radius: 26 FT Max
Dim Control Output: 0-10V
Temperature: -40°F~+158°F(-40°C ~+70°C)
Availability
- In Stock
- Quick Ship
Color / Finish
- White
Controls Options
- Bi-level Dimming
- Daylight Occupancy Sensor
- Daylight Sensor
- High Frequency Microwave
Controls Protocol
- 0-10 V
Dimming Protocol
- 0-10 V
Listings
- cULus
Ratings & Compliance
- Wet
Voltage
- 12-24 V
Warranty
- 5 yr
