LL-SLE (G2)
LL-SLE-Black Body&Top Visor-Side 2.jpg
3.pngLL-SLE (G2)

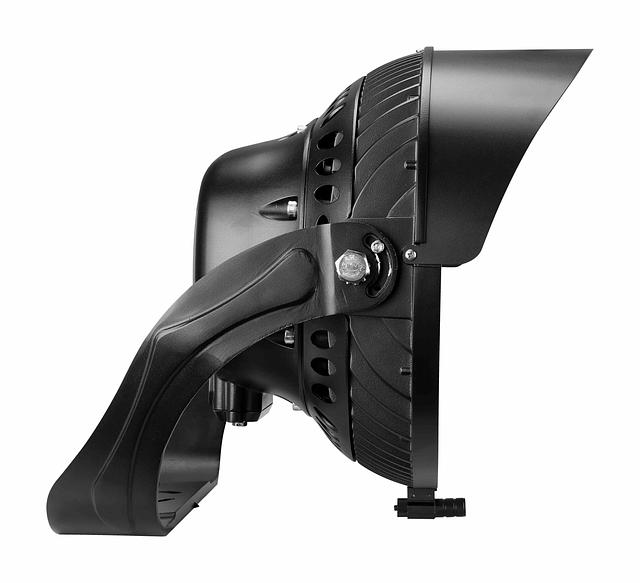

LED Sports Lighter Elite Generation 2
The LITELUME™ Sportlume Series Sports Lighter Elite (LL-SLE) incorporates an updated LED package, premium driver, built in surge suppression, laser site guide along with upgraded dynamic thermal management. Featuring a beautiful solid state die-cast aluminum body, with a premium patented design, 3G vibration rated, specifically tailored for sports field applications.
Resources
Heavy Duty Die-cast Aluminum Housing
Protective powder coat
Protective powder coat
Ultra High Efficiency Premium driver 95%
Isolated 0-10V/PWM/3-Timer-Modes
Dimmable Always-on Auxiliary Power
12Vdc Controls ready Input
Surge Protection: DM 6kV, CM 10kV
IP67 and UL Wet / Dry / Damp Location Driver with Built in surge suppression max 40KV
Premium LED's
4HX4V Narrow Flood
Wireless Synapse controls available
Isolated 0-10V/PWM/3-Timer-Modes
Dimmable Always-on Auxiliary Power
12Vdc Controls ready Input
Surge Protection: DM 6kV, CM 10kV
IP67 and UL Wet / Dry / Damp Location Driver with Built in surge suppression max 40KV
Premium LED's
4HX4V Narrow Flood
Wireless Synapse controls available
QuickShip Ordering Information
LL-SLE-505-50-UNV-BK
LL-SLE-505-50-480-BK
LL-SLE-600-50-UNV-BK
LL-SLE-600-50-480-BK
LED Sports Lighting for Stadium Lights, Football Field, Baseball Field, Soccer Field, Softball Field, Tennis Court, Pickleball, Sports Field, High Mast, Arena, Rec Centers
LL-SLE-505-50-UNV-BK
LL-SLE-505-50-480-BK
LL-SLE-600-50-UNV-BK
LL-SLE-600-50-480-BK
LED Sports Lighting for Stadium Lights, Football Field, Baseball Field, Soccer Field, Softball Field, Tennis Court, Pickleball, Sports Field, High Mast, Arena, Rec Centers
Replaces 1500W MH/PSMH
Replaces 1000W MH/PSMH
Replaces 750W MH/PSMH
Replaces 575W MH/PSMH
Replaces 400W MH/PSMH
Personalized Design
IES Class of Play 1
IES Class of Play 2
IES Class of Play 3
IES Class of Play 4
IES Class of Play 1
IES Class of Play 2
IES Class of Play 3
IES Class of Play 4
Lighting Systems & Controls
Lumens
- 52000 Lm
- 70000 Lm
- 84000 Lm
Watts
- 350 w
- 505 w
- 600 w
CCT
- 4000K
- 5000K
- 5700K
Color / Finish
- Black
Dimming Protocol
- 0-10 V
- Synapse
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
Ratings & Compliance
- Buy American Act (BAA)
- DLC
- IP67
- Title 24
- Wet
Special Programs
- Quick Ship
Voltage
- 120-277 V
- 480 V
- UNV
Warranty
- 10 yr
Inspiration
Similar Products
BAA Compliant Collection

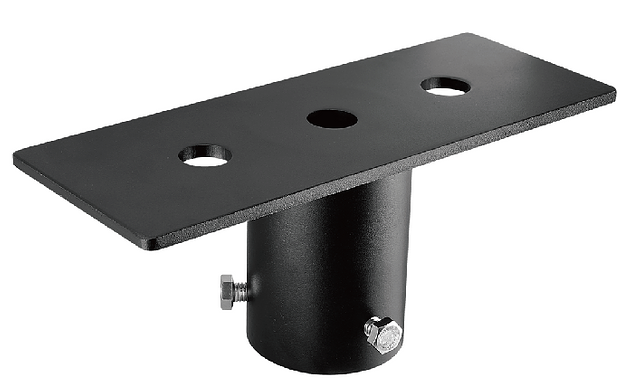

Brackets, Tenons, Spoke Arms And Bullhorns
