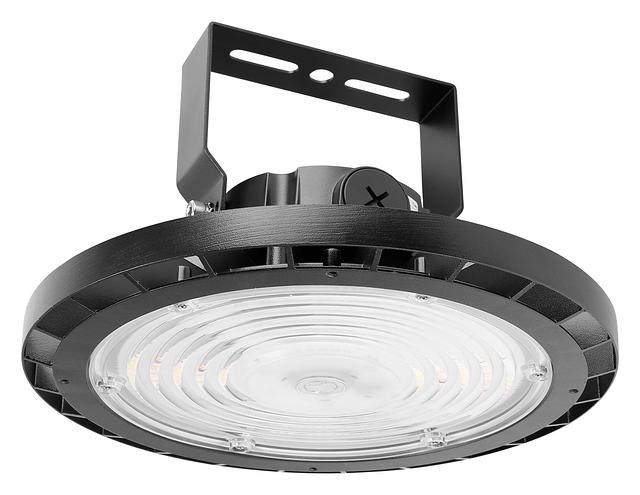

LL-HBRAP-UB Side1.jpg

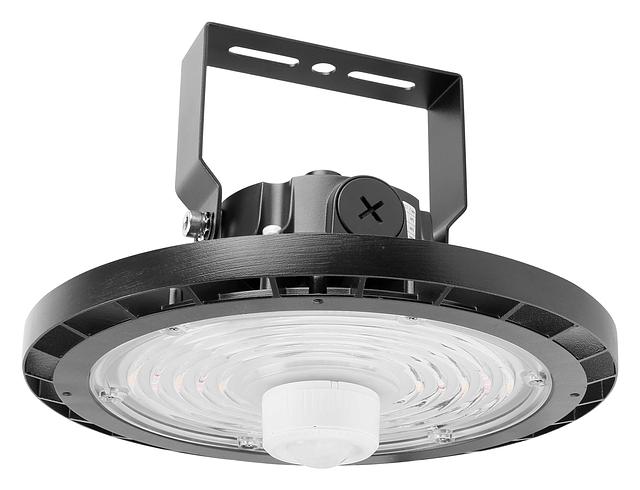

LL-HBRAP-UB Sensor Side1.jpg

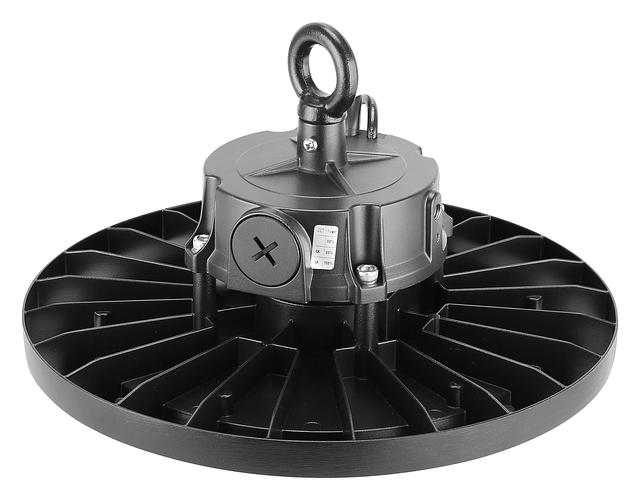

LL-HBRAP Side2.jpg

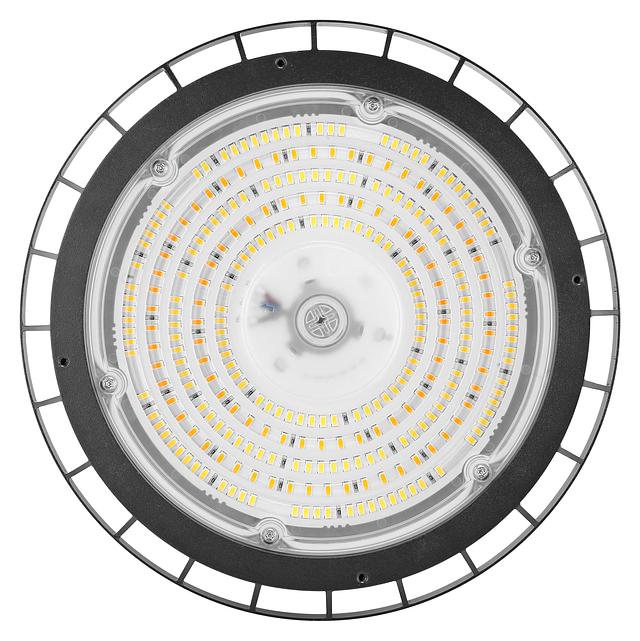

LL-HBRAP Front.jpg

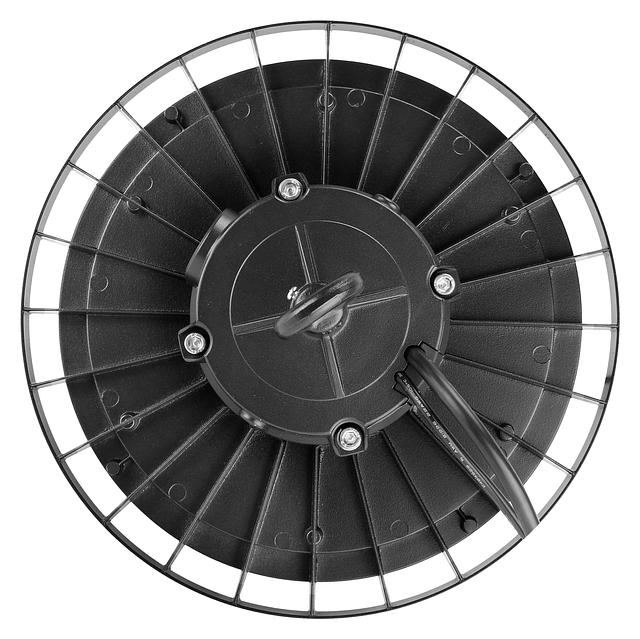

LL-HBRAP Back.jpg

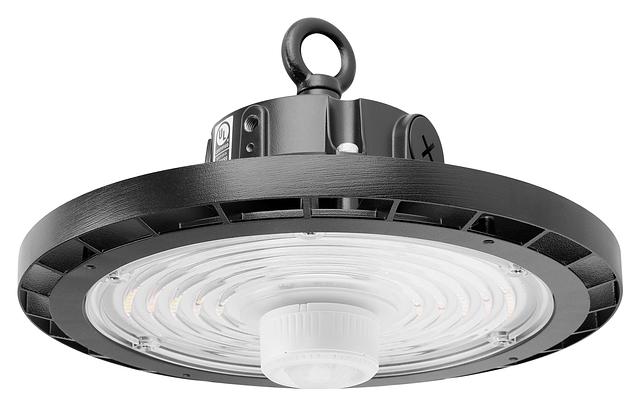

LL-HBRAP Sensor Side1.jpgLL-HBRAP
LED High Bay Round All Purpose
The LITELUMEā¢ LED High Bay Round All Purpose (LL-HBRAP) Features an economical design with a wide range of sizes and lumen options, low UGR, standard with field selectable color temperature, and selectable power. This luminaire is constructed with a IP65, NSF rated die cast housing suitable for both indoor and outdoor use. Incorporating a stylish design while upholding maximum durability and reliability. Controls ready.Ā
Applications include Education, Fitness Centers, Food Processing, Distribution Centers, Wet Locations, Grocery, Gymnasiums, Manufacturing Plants, and Warehouses.
Applications include Education, Fitness Centers, Food Processing, Distribution Centers, Wet Locations, Grocery, Gymnasiums, Manufacturing Plants, and Warehouses.
Resources
Robust Durable Sealed Die Cast Aluminum
Reliable Performance with Advanced Thermal Management
Protected Powder Coat
Enhance Visual Comfort with Limited Glare Anti-UV Prismatic Translucent Lens
IP65
NSF
Simple installation with standard Ring Mount or optional Pendant Mount, or U-Bracket.
Standard: 6' Power Cord
Reliable Performance with Advanced Thermal Management
Protected Powder Coat
Enhance Visual Comfort with Limited Glare Anti-UV Prismatic Translucent Lens
IP65
NSF
Simple installation with standard Ring Mount or optional Pendant Mount, or U-Bracket.
Standard: 6' Power Cord
Premium LED's
Ultra efficient driver
Standard Surge protection 6kV
PF .90
CRI 80
THD <20%
High Efficacy up to 175 lm/W
Field Selectable Lumen Package 14,700 to 82,500 lm
Field Selectable Color TemperatureĀ
4000K/5000K ( LL-HBRAP-25L/31L/36L )
3000K/4000K/5000K ( LL-HBRAP-82L )
Universal 120-277VĀ
0-10V dimming standard for a dimming range of 100% to 10%.
Controls Ready
Optional Emergency battery Backup ( 120-277v only ) ( 25L/31L/36L only )
Ultra efficient driver
Standard Surge protection 6kV
PF .90
CRI 80
THD <20%
High Efficacy up to 175 lm/W
Field Selectable Lumen Package 14,700 to 82,500 lm
Field Selectable Color TemperatureĀ
4000K/5000K ( LL-HBRAP-25L/31L/36L )
3000K/4000K/5000K ( LL-HBRAP-82L )
Universal 120-277VĀ
0-10V dimming standard for a dimming range of 100% to 10%.
Controls Ready
Optional Emergency battery Backup ( 120-277v only ) ( 25L/31L/36L only )
UGR<28
Operating Temperature Range: -40Ā°C to 45Ā°C(-40ĖF- + 113ĖF)
IK08
NSF
UL cUL wet location listed.
Operating Temperature Range: -40Ā°C to 45Ā°C(-40ĖF- + 113ĖF)
IK08
NSF
UL cUL wet location listed.
Food zone, splash zone, and non-food zone.
QuickShip Ordering Information
LL-HBRAP-25L-UNV-SCT-SP-BK
LL-HBRAP-31L-UNV-SCT-SP-BK
LL-HBRAP-36L-UNV-SCT-SP-BK
LL-HBRAP-82L-UNV-SCT-SP-BK
LL-HBRAP-31L-UNV-SCT-SP-BK
LL-HBRAP-36L-UNV-SCT-SP-BK
LL-HBRAP-82L-UNV-SCT-SP-BK
LED Round High Bay Lights, LED UFO
Replaces 1000W MH/PSMH
Replaces 750W MH/PSMH
Replaces 575W MH/PSMH
Replaces 400W MH/PSMH
Replaces 320W MH/PSMH
Replaces 250W MH/PSMH
Replaces 175W MH/PSMH
Replaces 150W MH/PSMH
Replaces 100W MH/PSMH
Availability
- In Stock
- Quick Ship
Beam Angle
- 90
CRI
- 80
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
Controls Options
- Bi-level Dimming
- Bluetooth
- Daylight Harvesting
- Daylight Occupancy Sensor
- Daylight Sensor
- Dimmable
- High Frequency Microwave
- Luminaire-Level Lighting Controls
- Microwave Sensor
- Motion Sensor
- Network Wireless Control
- Occupancy Sensor
- PIR Sensor
- Passive Infrared
- Synapse
- Wireless Control
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
- Synapse
Distribution
- Medium
Efficacy
- 175
Lamp Life
- 100000
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Polycarbonate
Mounting
- Bracket
- Pendant
- Surface
- Suspended
Ratings & Compliance
- Exterior
- IK08
- IP65
- Interior
- Low UGR
- NSF
- TAA
- Wet
Shape
- Round
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
Warranty
- 10 yr
