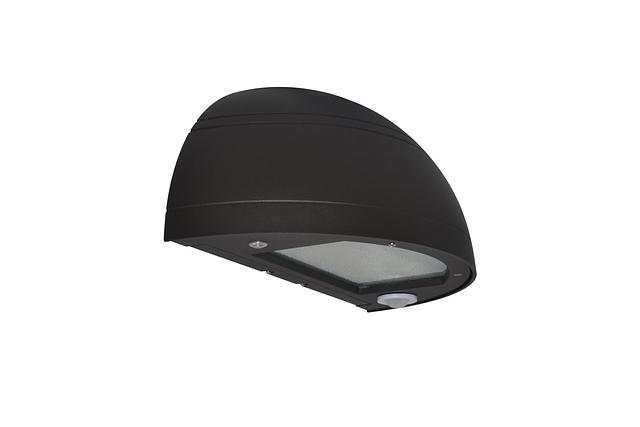

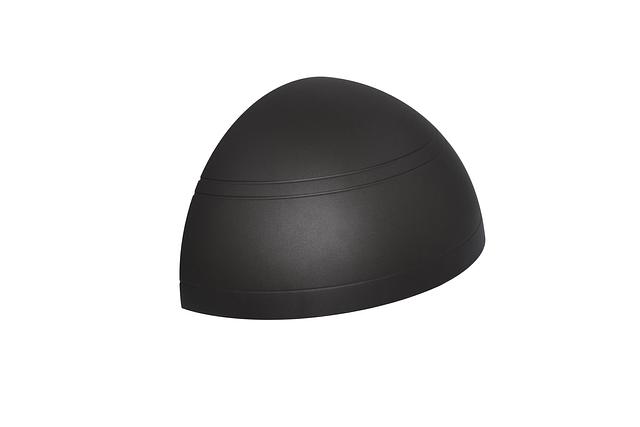

LED Wall Pack Quarter Sphere
The Wall Pack Quarter Sphere (LL-WPQS) provides multiple wattages of down light. Featuring high performance LEDs and a long lasting driver, this fixture provides effective lighting all around. Applications: Retail Malls, Restaurants, Auto Dealerships, Hospitals, Shopping Centers, Entryways, Tunnels, and Walkways, Exterior Wall Lighting, Building Entrances, Pedestrian Walkways, Multi-use Facilities, Industrial Facilities, Parking Lots, Storage Facilities, Education, Multi-Family, Retail, Office, General Hospitality.
Resources
Specification Grade
High Grade Die cast Aluminum
Striking Architectural Appeal
Tempered Glass Lens
User Friendly Quick Mount Bracket with Integrated Level Bubble
High Grade Die cast Aluminum
Striking Architectural Appeal
Tempered Glass Lens
User Friendly Quick Mount Bracket with Integrated Level Bubble
Premium New Generation LED's
Ultra efficient driver
6kV Standard Surge Protection
PF .90
CRI 76
THD <20%
Standard 0-10v continuous Dimming
Field Selectable Lumens 3,362 to 8,358 lm
Field Selectable CCT
L70 rated lifetime of 60,000 Hours
Calculated L70 of 100,000 HoursÂ
Ultra efficient driver
6kV Standard Surge Protection
PF .90
CRI 76
THD <20%
Standard 0-10v continuous Dimming
Field Selectable Lumens 3,362 to 8,358 lm
Field Selectable CCT
L70 rated lifetime of 60,000 Hours
Calculated L70 of 100,000 HoursÂ
QuickShip Ordering Information
LL-WPQS-[25][45][65]-3CCT-UNV-BZ
LED Wall Pack Lights
LED Dark Sky Outdoor Wall Lights
LED Full Cutoff Wall Packs
Architectural LED Wall Pack Light
LL-WPQS-[25][45][65]-3CCT-UNV-BZ
LED Wall Pack Lights
LED Dark Sky Outdoor Wall Lights
LED Full Cutoff Wall Packs
Architectural LED Wall Pack Light
Lumens
- 3563 Lm
- 6134 Lm
- 8358 Lm
Watts
- 25 w
- 45 w
- 65 w
CRI
- 76 CRI
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Custom
- Gray
- White
Controls Options
- Occupancy Sensor
- Photocell
Dimming Protocol
- 0-10 V
Efficacy
- 145 lm/w
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Glass
Mounting
- Wall
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- DarkSky Approved
- Exterior
- FCC
- IP65
- RoHS
- Title 20
- Title 24
- Wet
Shape
- Spherical
Special Programs
- Quick Ship
Voltage
- 120-277 V
- UNV
Warranty
- 10 yr
