LL-WPM
LL-WPL-100-Side 3.jpg
LL-WPL-100-Side 4.jpgLL-WPM

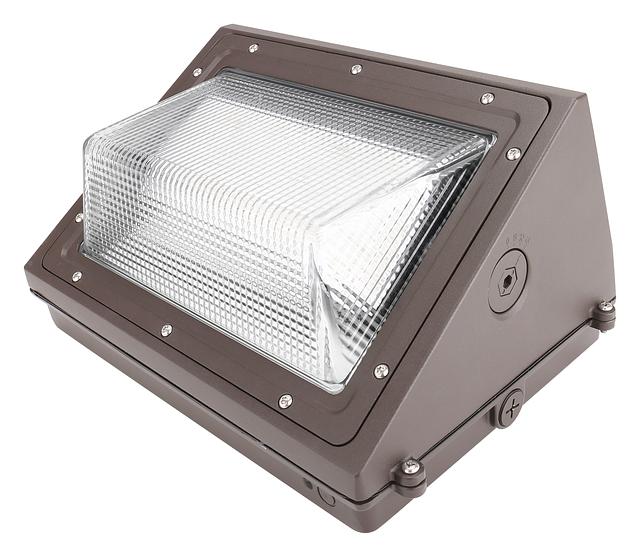

LED Wallpack Medium
The LITELUME™ Wallpack Medium (LL-WPM) features a die-cast aluminum housing with a clear PC lens for long-lasting durability. Field adjustable light engine, CCT and Wattage Selectable.
Applications: Entryways, Tunnels, and Walkways, Exterior Wall Lighting, Building Entrances, Pedestrian Walkways, Multi-use Facilities, Industrial Facilities, Parking Lots, Storage Facilities, Education, Multi-Family, Retail, Office.
Resources
Die-cast Aluminum
Protective powder Coat
Polycarbonate lens, Optional Borosilicate Glass
Must Order Deep Back Box When using Plug n Play Sensors
Protective powder Coat
Polycarbonate lens, Optional Borosilicate Glass
Must Order Deep Back Box When using Plug n Play Sensors
Premium LED's
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v continuous 12Vdc auxiliary dimming
Field Selectable Lumens 3,900 to 14,000 lm
Field Selectable CCT
Field adjustable light engine
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v continuous 12Vdc auxiliary dimming
Field Selectable Lumens 3,900 to 14,000 lm
Field Selectable CCT
Field adjustable light engine
QuickShip Ordering Information
LL-WPM-[24][36][48][60]-3CCT-UNV-BZ-PC
LL-WPM-[24][36][48][60]-3CCT-UNV-BZ-PC
LL-WPM-[40][60][80][100]-3CCT-UNV-BZ-PC
LED Wall Pack Lights
Field Adjustable Wall Pack
LED Wall Pack Lights
Field Adjustable Wall Pack
Lumens
- 4200 Lm
- 6000 Lm
- 6600 Lm
- 7500 Lm
- 8900 Lm
- 9500 Lm
- 12000 Lm
- 14000 Lm
Watts
- 24 w
- 36 w
- 40 w
- 48 w
- 60 w
- 80 w
- 100 w
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Grey
- White
Controls Options
- Bi-level Dimming
- Daylight Occupancy Sensor
- Daylight Sensor
- Motion Sensor
- Occupancy Sensor
- Photocell
- Synapse
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
- Synapse
Efficacy
- 175 lm/w
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Glass
- Polycarbonate
Mounting
- Wall
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- Buy American Act (BAA)
- Exterior
- IP65
- TAA
- Title 24
- Wet
Special Programs
- Quick Ship
Voltage
- 120-277 V
- UNV
Warranty
- 10 yr
