LED 6” Trim Recessed Module Downlight
The LITELUME™ LL-MODR6 Trim Recessed Module delivers sleek performance and versatility for modern spaces. Available in 6" with 5 CCT field selectable color temperatures ranging from 2700K to 5000K. Featuring a white trim baffle for elegant illumination. Pairs with our LED dedicated 6" can with quick connector, ideal for new construction, or use the screw-in adapter to retrofit any 5" or 6" incandescent can for a perfect energy upgrade. Optional Black or Brushed Nickel baffled trims available.
Resources
Premium Powder Coat
Aluminum White Housing
White Trim Baffle

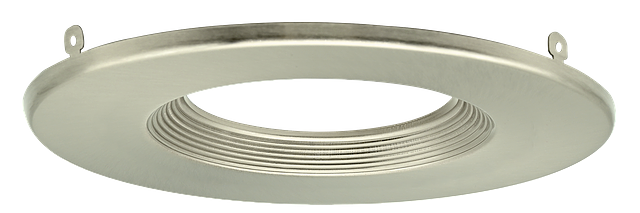

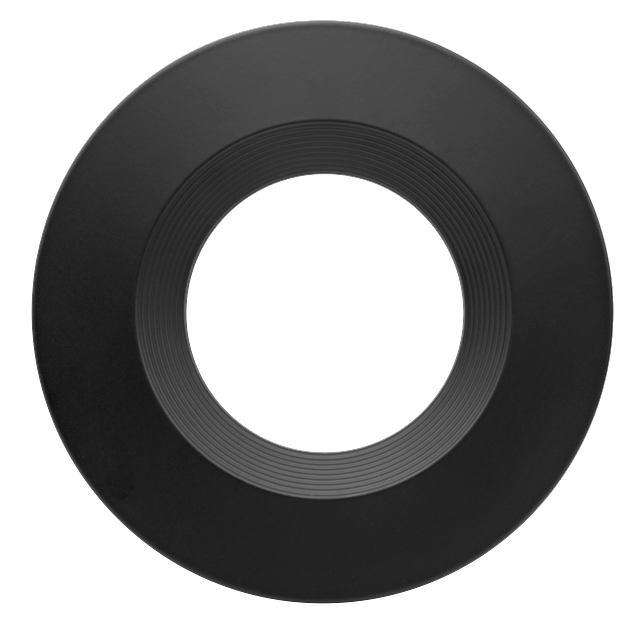

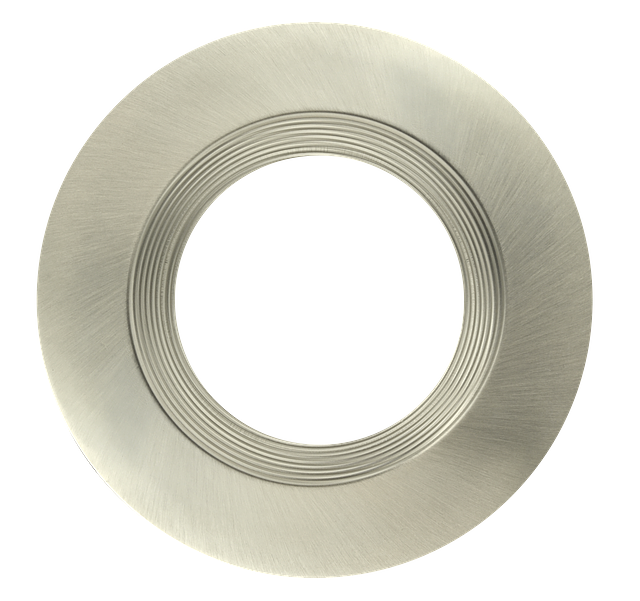

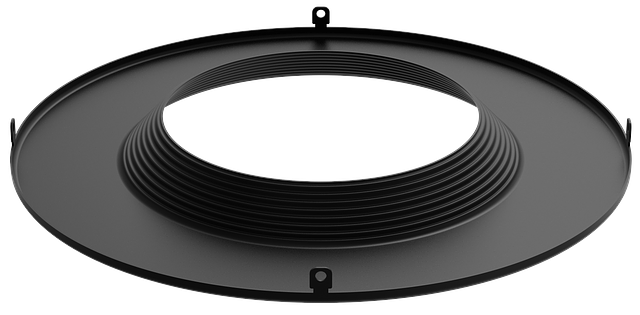

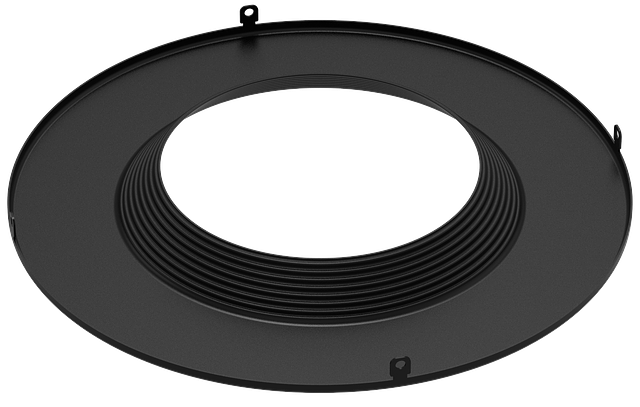

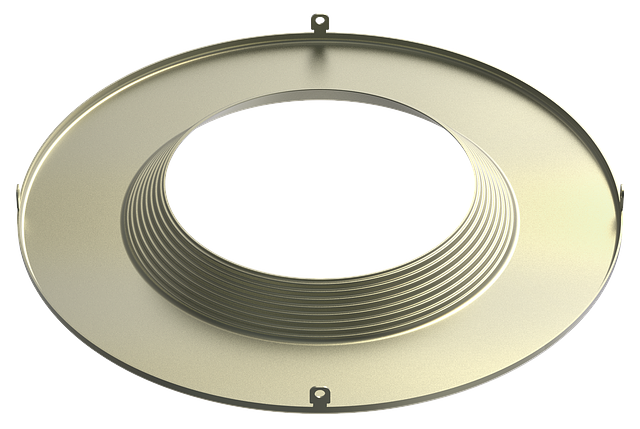

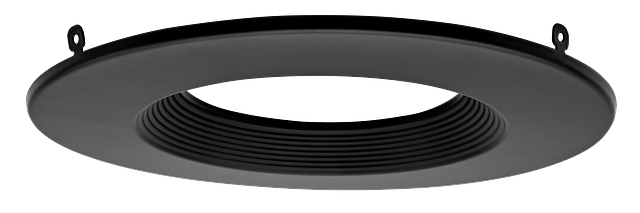

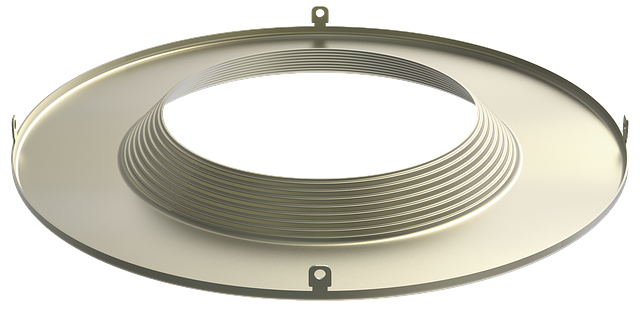

Black or brushed Nickel Baffled Trims available
Aluminum White Housing
White Trim Baffle
Black or brushed Nickel Baffled Trims available
PF > 0.90.
THD < 20%
CRI 90
Triac Dimming @ 120v
Surge Protection = 0.5kV
Type IC
Operating Temperature -4°F to 113°F
LUTRON COMPATIBLE DIMMERS AND CONTROLS
TG-600PR-WH
SLV-600P-AL
DVCL-153P
S-600PR-WH
DV-600PR-WH
MSCL-OP153M
CTCL-153PDH-WH
SCL-153PH-WH
PD-6WCL
TGCL-153PH-LA
GT-600P
MACL-153M//MA-R
LEVITON COMPATIBLE DIMMERS AND CONTROLS
6672
6674
IPL06
RNL06
DSL06
THD < 20%
CRI 90
Triac Dimming @ 120v
Surge Protection = 0.5kV
Type IC
Operating Temperature -4°F to 113°F
LUTRON COMPATIBLE DIMMERS AND CONTROLS
TG-600PR-WH
SLV-600P-AL
DVCL-153P
S-600PR-WH
DV-600PR-WH
MSCL-OP153M
CTCL-153PDH-WH
SCL-153PH-WH
PD-6WCL
TGCL-153PH-LA
GT-600P
MACL-153M//MA-R
LEVITON COMPATIBLE DIMMERS AND CONTROLS
6672
6674
IPL06
RNL06
DSL06
QuickShip Ordering Information
LL-MODR6-10L-KFS
LL-MODR6-TR-BK
LL-MODR6-TR-BN
LL-MODR6-10L-KFS
LL-MODR6-TR-BK
LL-MODR6-TR-BN
Lumens
- 1000 Lm
Watts
- 14 w
Weight
- .33 lbs
Availability
- In Stock
- Quick Ship
CRI
- 90 CRI
CCT
- Field Selectable CCT
- 2700K
- 3000K
- 3500K
- 5000K
Color / Finish
- White
Dimensions
- H: 2.4 In. L: 7.4 In. W: 7.4 In.
Dimming Protocol
- Triac (Leading Edge)
Dimming Range
- 1%
Efficacy
- 71 lm/w
Installation Type
- New Construction
- Retrofit & Remodel
Lamp Base
- E26
Lamp Life
- 181000 hrs
Lamp Source
- LED
Listings
- cETLus
Materials
- Aluminum
- Polycarbonate
Ratings & Compliance
- Damp
- Energy Star
- IC Rated
Shape
- Round
Special Programs
- Quick Ship
- Stock
Trim Finish
- White
Trim Type
- Baffle
Voltage
- 120 V
Warranty
- 10 yr
