LL-WPLSC
0 (1).jpg
0 (3).jpg
DSC_8571-1.pngLL-WPLSC

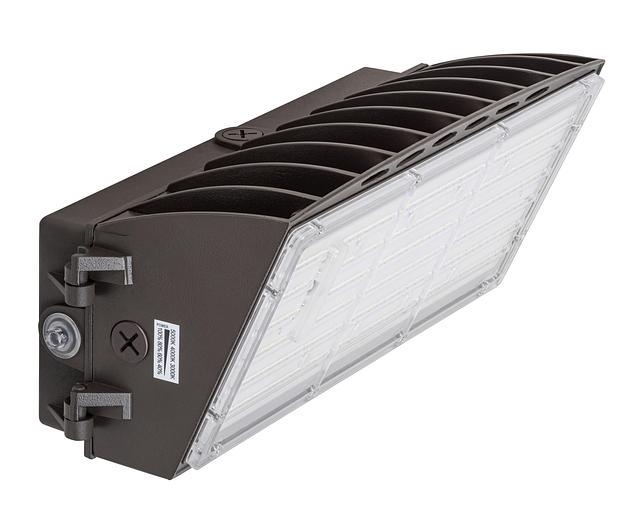

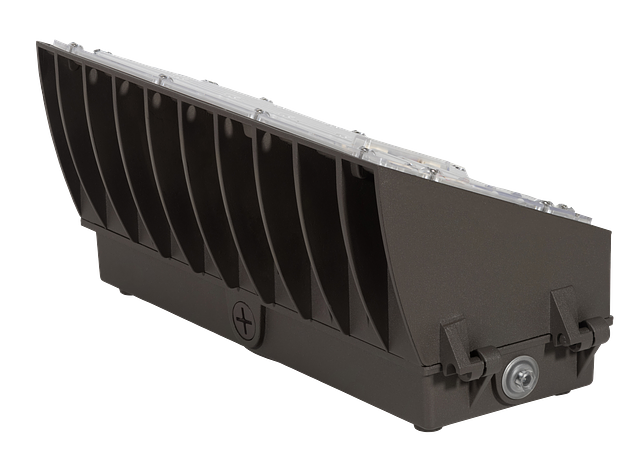

LED Wallpack Large - Semi Cutoff
The LITELUME™ Wallpack Large – Semi Cutoff (LL-WPLSC) is a Wall mounted LED fixture with a durable polycarbonate optical lens.
Applications: Entryways, Tunnels, and Walkways, Exterior Wall Lighting, Building Entrances, Pedestrian Walkways, Multi-use Facilities, Industrial Facilities, Parking Lots, Storage Facilities, Education, Multi-Family, Retail, Office.
Resources
Die-cast Aluminum
Protective powder Coat
Polycarbonate Lens
Protective powder Coat
Polycarbonate Lens
Premium LED's
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v continuous 12Vdc auxiliary dimming
Field Selectable Lumens 4,483 to 17,226 lm
Field Selectable CCT
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v continuous 12Vdc auxiliary dimming
Field Selectable Lumens 4,483 to 17,226 lm
Field Selectable CCT
QuickShip Ordering Information
LL-WPLSC-[28][42][56][70]-3CCT-UNV-BZ-PC
LL-WPLSC-[48][72][96][120]-2CCT-UNV-BZ-PC
LED Wall Pack Lights
LED Semi Cutoff Wall Pack Lights
LL-WPLSC-[28][42][56][70]-3CCT-UNV-BZ-PC
LL-WPLSC-[48][72][96][120]-2CCT-UNV-BZ-PC
LED Wall Pack Lights
LED Semi Cutoff Wall Pack Lights
Lumens
- 4483 Lm
- 17226 Lm
Watts
- 28 w
- 42 w
- 48 w
- 56 w
- 70 w
- 72 w
- 96 w
- 120 w
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Bronze
Dimming Protocol
- 0-10 V
Efficacy
- 140 lm/w
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
Ratings & Compliance
- Exterior
- IP65
- Wet
Special Programs
- Quick Ship
Voltage
- 120-277 V
Warranty
- 10 yr
