LL-CRP
LL-CRPBZ.9.jpgLL-CRP

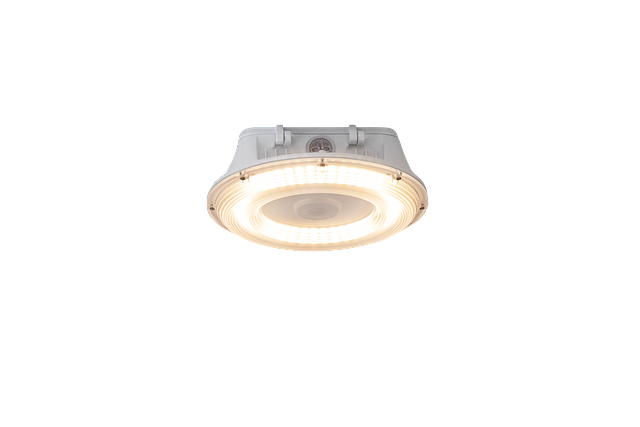

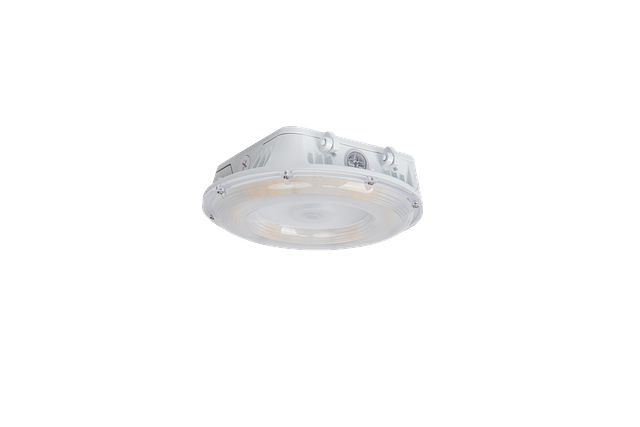

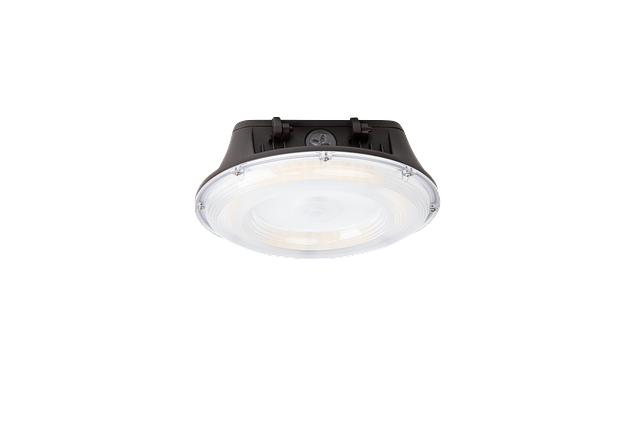

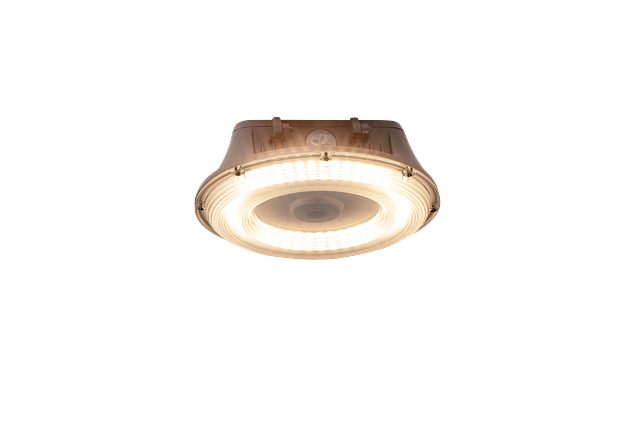

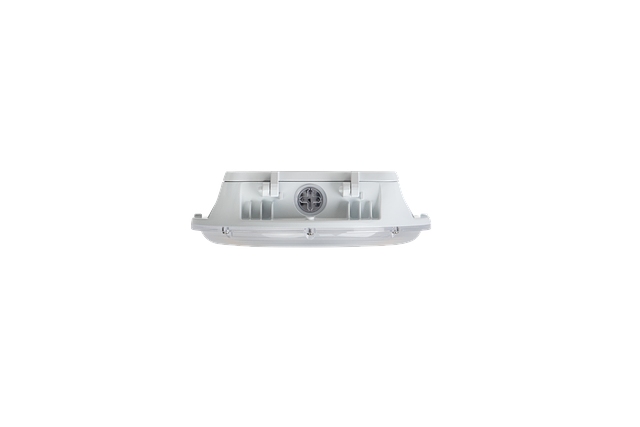

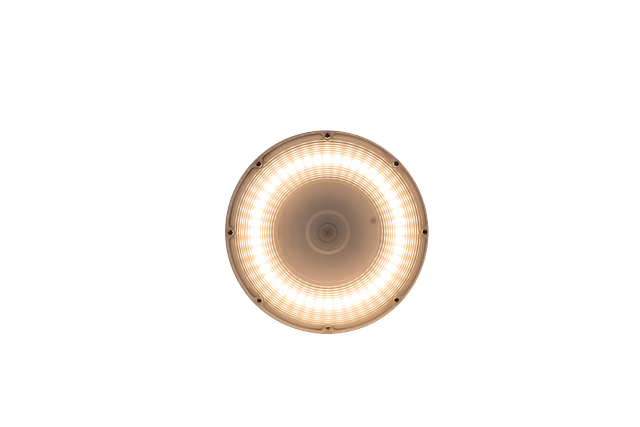

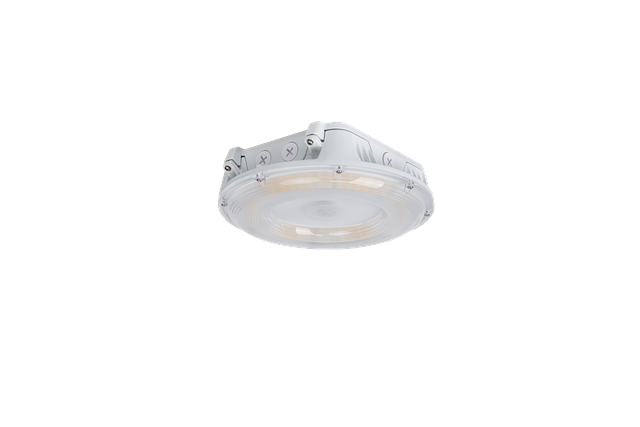

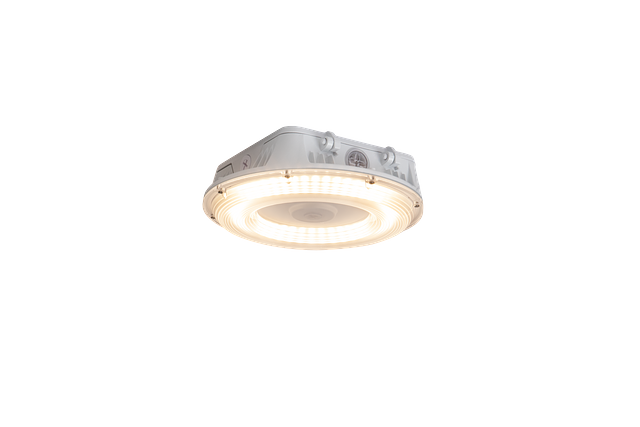

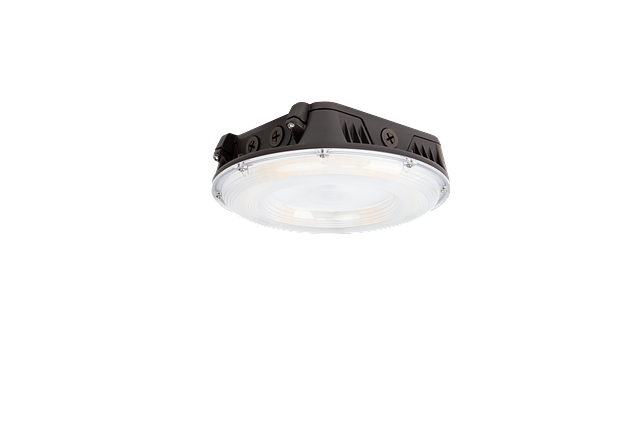

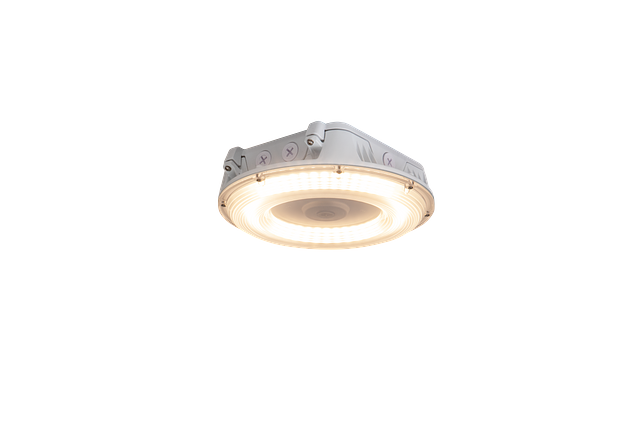

LED Canopy Round Premier
The LITELUME™ LED Canopy Round Premier (LL-CRP) is engineered with cutting edge craftsmanship and technology. Premium die cast aluminum housing. Featuring a low glare lens with parking garage photometry, precision illumination, ultimate comfortability and security.

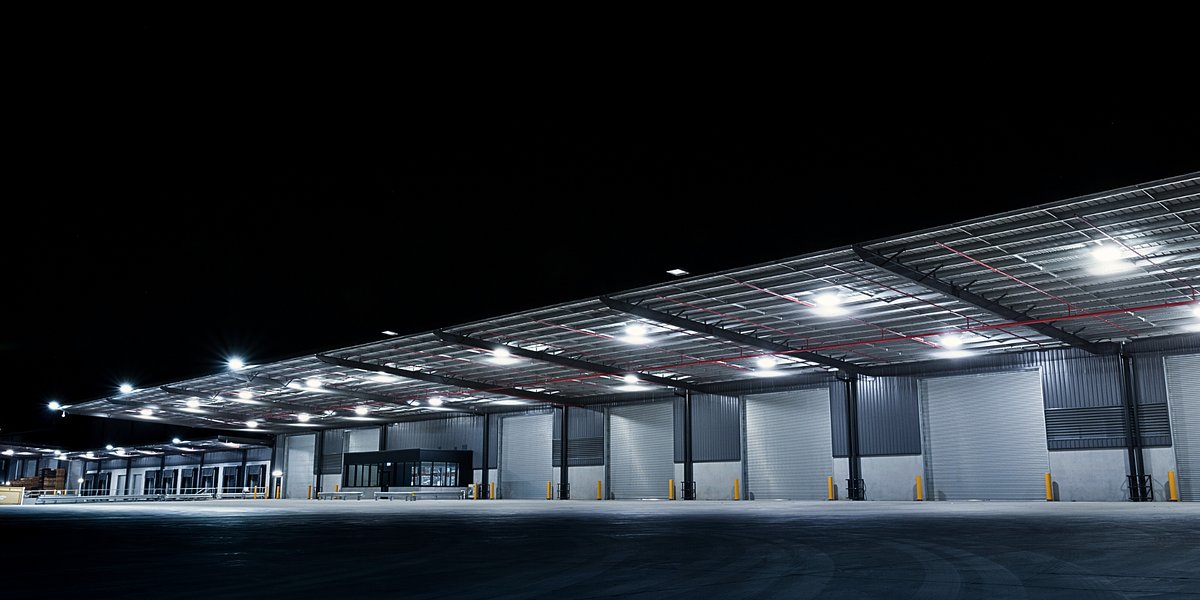

Plug and Play controls ready, selectable wattage and CCT is standard, making this fixture ideal for parking garages, storage areas, walkways and low or high security areas.
Plug and Play controls ready, selectable wattage and CCT is standard, making this fixture ideal for parking garages, storage areas, walkways and low or high security areas.
Resources
Heavy duty premium die cast aluminum
Corrosion-resistant powder coat
Parking Garage photometry

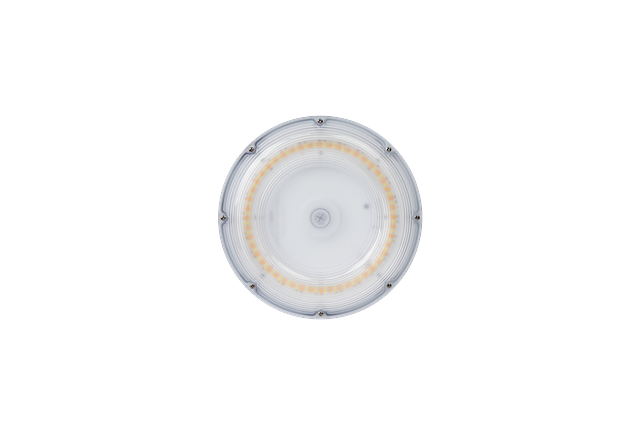

Precision-engineered anti-glare optical lens provides comfortable illumination

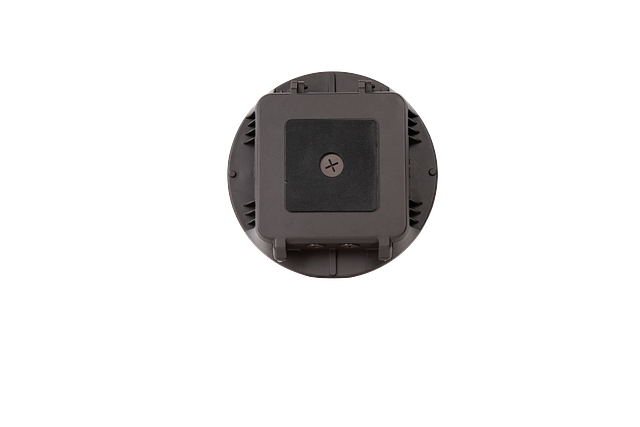

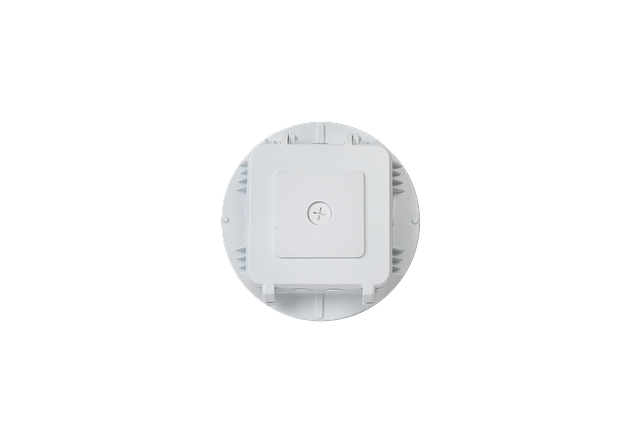

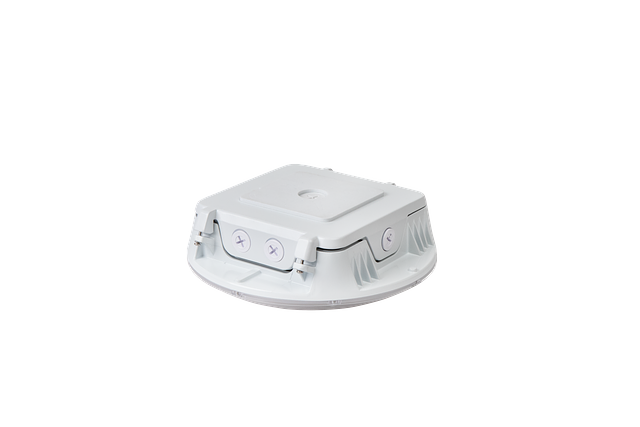

External quick-mount plate for standard J-BOX mounting
Compatible with 3/4" pendant
Corrosion-resistant powder coat
Parking Garage photometry
Precision-engineered anti-glare optical lens provides comfortable illumination
External quick-mount plate for standard J-BOX mounting
Compatible with 3/4" pendant
Premium LED's
Ultra efficient driver
PF .90
CRI 80
THD <20%
6kV standard surge protection

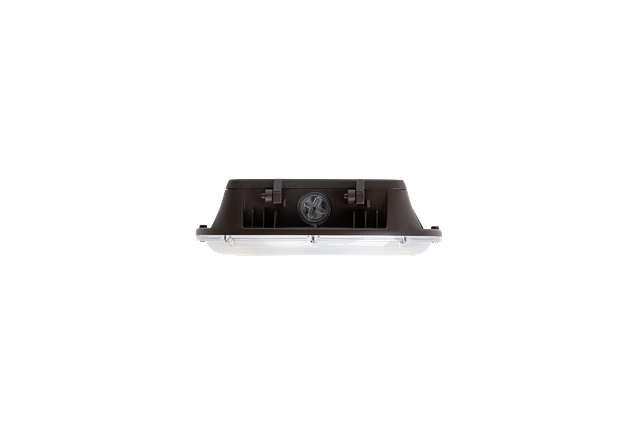

Photocell with On/Off dip-switch
0-10V dimming driver standard 100% to 10%
Ultra efficient driver
PF .90
CRI 80
THD <20%
6kV standard surge protection
Photocell with On/Off dip-switch
0-10V dimming driver standard 100% to 10%
QuickShip Ordering Information
LL-CRP-12L-UNV-SCT-SP-WH-PC
LL-CRP-12L-UNV-SCT-SP-BZ-PC
LED Canopy Lights, LED Parking Garage Lights
LL-CRP-12L-UNV-SCT-SP-WH-PC
LL-CRP-12L-UNV-SCT-SP-BZ-PC
LED Canopy Lights, LED Parking Garage Lights
Lumens
- 3000
- 6000
- 8000
- 10000
- 12000
Watts
- 19
- 39
- 54
- 63
- 74
Weight
- 4.93
Availability
- In Stock
- Quick Ship
Beam Angle
- 135
CRI
- 80
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Bronze
- White
Controls Options
- Bi-level Dimming
- Occupancy Sensor
- Photocell
Dimensions
- H: 3.06 In.
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
Dimming Range
- 10%
Efficacy
- 170
Lamp Life
- 167000
Lamp Source
- LED
Listings
- UL
- cULus
Materials
- Die-Cast Aluminum
- Polycarbonate
Ratings & Compliance
- Exterior
- FCC
- IK10
- IP65
- Wet
Shape
- Round
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
Warranty
- 10
