LL-LEDTFX-2
LL-LEDTFX-2-white.jpgLL-LEDTFX-2

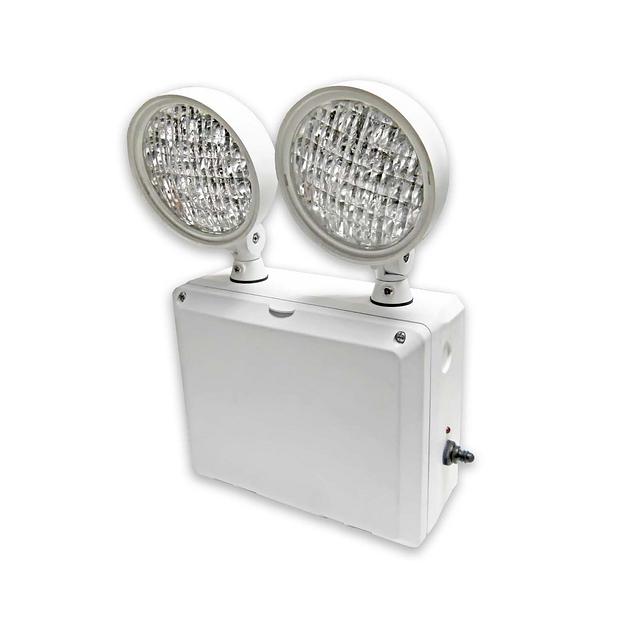

Wet Location Remote Capable LED Emergency Unit
Sealed and gasketed weatherproof lamp heads with high performance chrome-plated metallized reflector andtempered glass lenses for optimal light distribution. Long lasting efficient ultra bright white LED lamp heads. 1.875W (15 LEDs x 0.125) per head.
Resources
Corrosion-resistant 5VA flame retardant UV-stabilized
polycarbonate in gray or black finish
Sealed and gasketed housing with hinged cover
Sealed test switch
polycarbonate in gray or black finish
Sealed and gasketed housing with hinged cover
Sealed test switch
Dual 120/277 voltage standard
Charge rate/power “ON” LED indicator light and magnetic test switch for mandated code compliance testing
9.6V long life, maintenance-free, rechargeable NiCd battery
Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination
Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours. • Remote capacity of 3.7W standard in operating temperatures of 0°C – 50°C
Charge rate/power “ON” LED indicator light and magnetic test switch for mandated code compliance testing
9.6V long life, maintenance-free, rechargeable NiCd battery
Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination
Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours. • Remote capacity of 3.7W standard in operating temperatures of 0°C – 50°C
UL listed for wet locations (-20°C – 50°C)
LED Wet Location emergency Lighting
LED Wet Location emergency Lighting
Lumens
- 2 Lm
- 10 Lm
- 19 Lm
- 20 Lm
- 833 Lm
- 2023 Lm
Watts
- 4 w
Color / Finish
- Black
- Gray
Emergency Type
- Emergency Lighting
Lamp Source
- LED
Listings
- UL
Materials
- Polycarbonate
Ratings & Compliance
- Exterior
- NFPA 101
- Title 20
- Wet
Special Programs
- Quick Ship
Warranty
- 7 yr
