New Product
Linear Beam Architectural

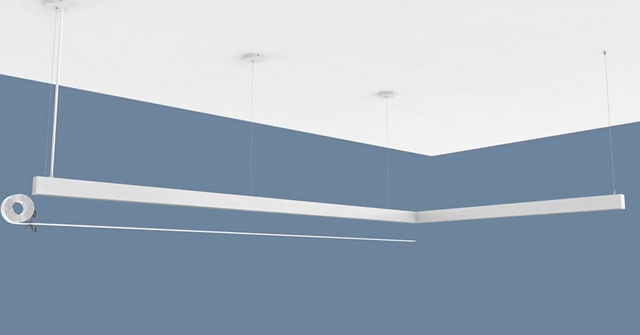

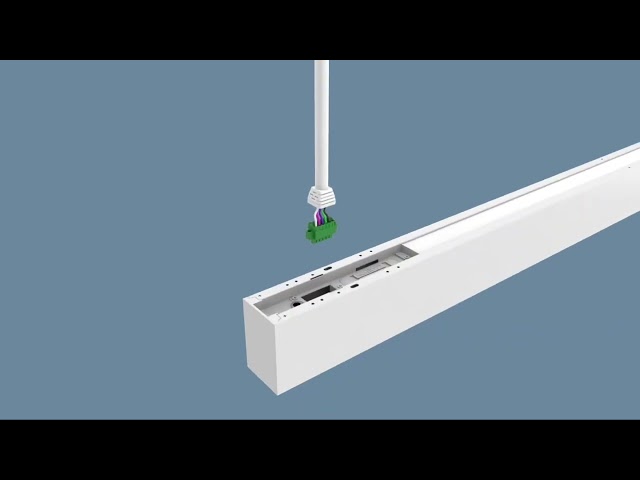

The LITELUME™ LED Linear Beam Architectural (LL-LBA) is a specification grade field adjustable direct/indirect luminaire designed for retrofit or new construction. Available in 2’, 4’, 8’ sections, capable of continuous runs, connections, and multiple shape designs. Featuring a tooless “press & lock” connection. Applications include hospitals, schools, restaurants, offices, hallways, conference rooms, bathrooms and many other commercial and residential areas. Featuring 3 level lumen output and 3 color adjustable CCT, allowing for customized energy savings and comfortability.
Resources
Lumens
- 1950 Lm
- 2600 Lm
- 3250 Lm
- 5200 Lm
- 5850 Lm
- 6500 Lm
- 8450 Lm
- 9750 Lm
- 11700 Lm
Watts
- 15 w
- 20 w
- 25 w
- 40 w
- 45 w
- 50 w
- 65 w
- 75 w
- 90 w
CRI
- 83 CRI
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Circuit
- Dual Circuit
- Single Circuit
Color / Finish
- Black
- Custom
- White
Dimensions
- H: 3.2 In. L: 24 In. W: 2.1 In.
- H: 3.2 In. L: 47.6 In. W: 2.1 In.
- H: 3.2 In. L: 94.3 In. W: 2.1 In.
Dimming Protocol
- 0-10 V
Dimming Range
- 10%
Distribution
- Direct/Indirect
Efficacy
- 130 lm/w
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Lumens/Linear Ft
- 925 Lm/ft
- 1300 Lm/ft
- 1625 Lm/ft
Materials
- Aluminum
Mounting
- Recessed
- Surface
- Suspended
Emergency Options
- Integral EM Battery
Ratings & Compliance
- Damp
Up/Down Ratio
- 100/0 (Up/Down)
- 30/70 (Up/Down)
- 50/50 (Up/Down)
Voltage
- 120-277 V
Warranty
- 10 yr
