IMG_0952.jpgLL-HBRP
High Bay Round Premium

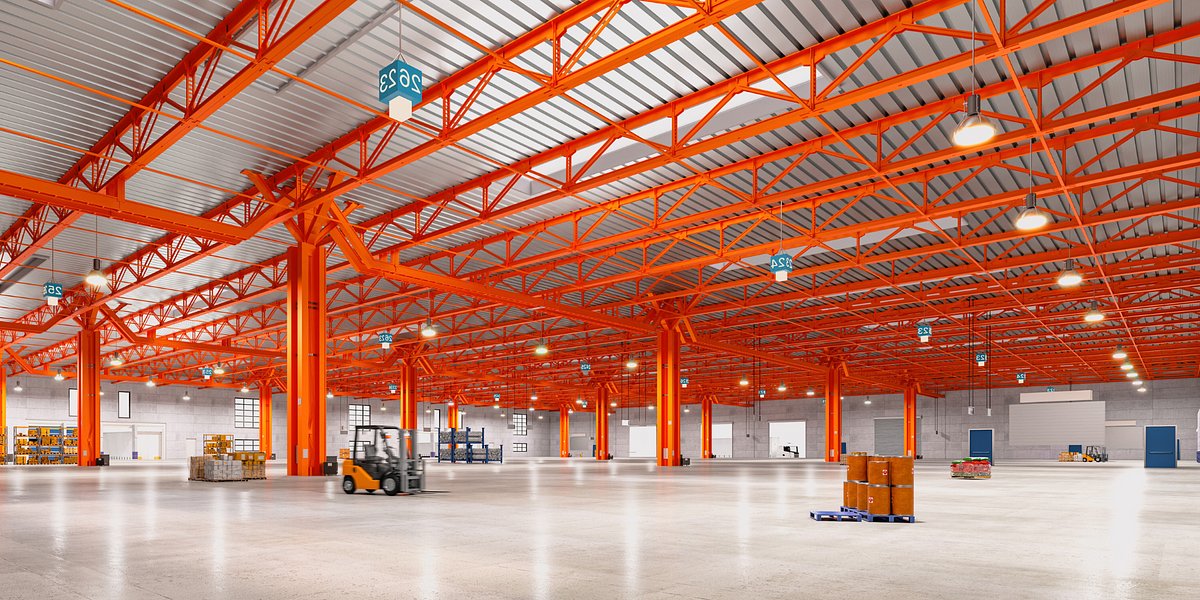

The LITELUME™ LED High Bay Round Premium (LL-HBRP) is a new technological luminaire constructed with a IP65 rated die cast housing suitable for both indoor and outdoor. Featuring a stylish design while upholding maximum durability and reliability. Controls ready. Applications include Education, Fitness Centers, Food Processing, Distribution Centers, Wet Locations, Grocery, Gymnasiums, Manufacturing Plants, and Warehouses.
Resources
Robust Durable Sealed Die Cast Aluminum
Reliable Performance with Advanced Thermal Management
Protected Powder Coat
Enhance Visual Comfort with Limited Glare Anti-UV prismatic translucent Lens
IP65
Simple installation with Hook or Pendant Mount
Reliable Performance with Advanced Thermal Management
Protected Powder Coat
Enhance Visual Comfort with Limited Glare Anti-UV prismatic translucent Lens
IP65
Simple installation with Hook or Pendant Mount
Premium LED's
Ultra efficient driver
Standard Surge protection 6kV
PF .90
CRI 80
THD <20%
High Efficacy up to 175 lm/W
Field Selectable Lumen Package 7,000 to 40,000 lm
0-10V dimming standard for a dimming range of 100% to 10%.
Controls Ready
Ultra efficient driver
Standard Surge protection 6kV
PF .90
CRI 80
THD <20%
High Efficacy up to 175 lm/W
Field Selectable Lumen Package 7,000 to 40,000 lm
0-10V dimming standard for a dimming range of 100% to 10%.
Controls Ready
QuickShip Ordering Information
LL-HBRP-[40][60][80][100]-2CCT-UNV-BK
LL-HBRP-[60][90][120][150]-2CCT-UNV-BK
LL-HBRP-[64][96][128][160]-2CCT-UNV-BK
LL-HBRP-[84][126][168][210]-2CCT-UNV-BK
LL-HBRP-[92][138][184][230]-2CCT-UNV-BK
LL-HBRP-[92][138][184][230]-2CCT-UNV-WH
LL-HBRP-[60][90][120][150]-2CCT-UNV-BK
LL-HBRP-[64][96][128][160]-2CCT-UNV-BK
LL-HBRP-[84][126][168][210]-2CCT-UNV-BK
LL-HBRP-[92][138][184][230]-2CCT-UNV-BK
LL-HBRP-[92][138][184][230]-2CCT-UNV-WH
LED Round High Bay Lights
Replaces 1000W MH/PSMH
Replaces 750W MH/PSMH
Replaces 575W MH/PSMH
Replaces 400W MH/PSMH
Replaces 320W MH/PSMH
Replaces 250W MH/PSMH
Replaces 175W MH/PSMH
Replaces 150W MH/PSMH
Replaces 100W MH/PSMH
Lumens
- 7000 Lm
- 10000 Lm
- 10800 Lm
- 12000 Lm
- 13000 Lm
- 14500 Lm
- 15500 Lm
- 16000 Lm
- 16500 Lm
- 17500 Lm
- 20000 Lm
- 21000 Lm
- 22800 Lm
- 24000 Lm
- 26500 Lm
- 28000 Lm
- 30000 Lm
- 32000 Lm
- 40000 Lm
Watts
- 40 w
- 60 w
- 64 w
- 80 w
- 84 w
- 90 w
- 92 w
- 96 w
- 100 w
- 120 w
- 126 w
- 128 w
- 138 w
- 150 w
- 160 w
- 168 w
- 184 w
- 210 w
- 230 w
Beam Angle
- 120
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 4000K
- 5000K
Color / Finish
- Black
- White
Controls Options
- Bi-level Dimming
- Daylight Occupancy Sensor
- Motion Sensor
- Occupancy Sensor
- Wireless Control
Dimming Protocol
- 0-10 V
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Emergency Options
- Integral EM Battery
Ratings & Compliance
- Buy American Act (BAA)
- DLC
- DLC Premium
- IP65
- TAA
- Wet
Special Programs
- Quick Ship
Voltage
- 120-277 V
- 480 V
- UNV
Warranty
- 10 yr
