Ceiling Now Elite

Resources

Specsheets

SPECSHEET LL-CNE.pdf

Die-formed Cold-rolled steel
High Transmission Acrylic Lens

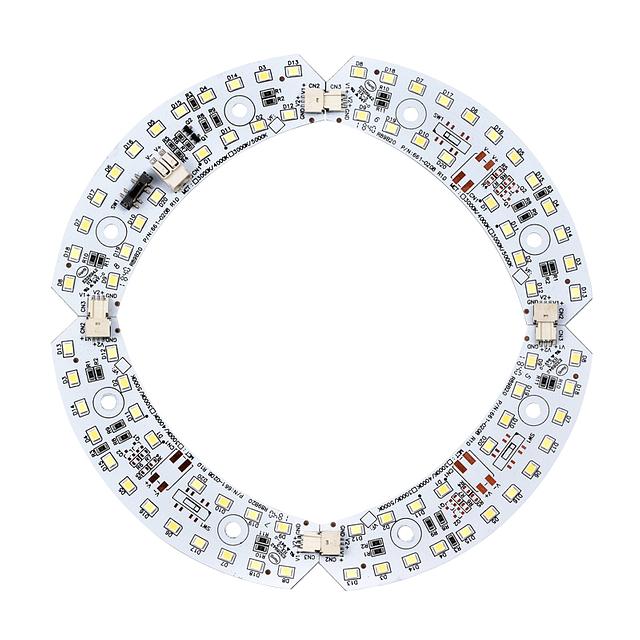

Premium LED's
Ultra efficient driver
PF .98
CRI 80
THD <10%
Surge Protection .5kV
Flicker Free
Standard: Non-Dimming

Optional: 0-10v Dimming

Optional: Triac Dimming @120v

QuickShip Ordering Information
LL-CNE-10-1L-120-SCT-SN
LL-CNE-12-1L-UNV-SCT-SN
LL-CNE-14-2L-UNV-SCT-SN
LL-CNE-16-3L-UNV-SCT-SN
LL-CNE-18-3L-UNV-SCT-SN
LL-CNE-20-3L-UNV-SCT-SN
LL-CNE-24-3L-UNV-SCT-SN

Lumens

143
2267
2600
3364
3500

Watts

CRI

CCT

Field Selectable CCT
3000K
3500K
4000K

Color / Finish

Black

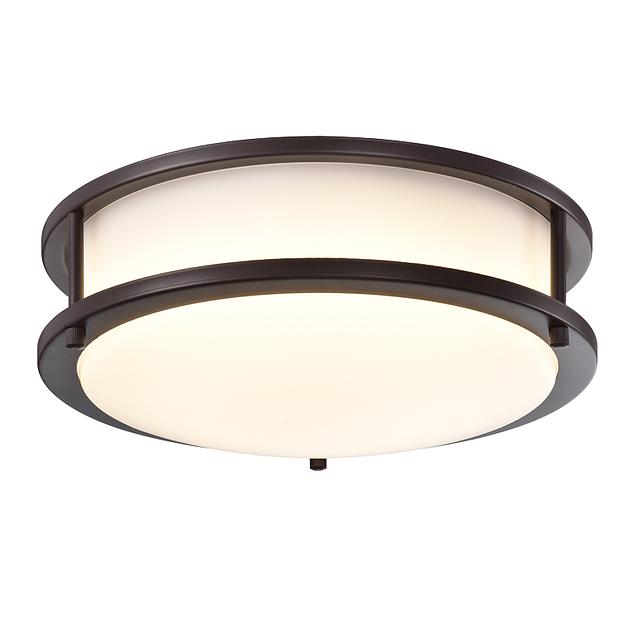

Oil-Rubbed Bronze Alternative
Satin Nickel
White

Diameter

Dimensions

L: 10 In. W: 10 In. H: 4.2 In.
L: 11.8 In. W: 11.8 In. H: 4.2 In.
L: 14.5 In. W: 14.5 In. H: 4.6 In.
L: 16 In. W: 16 In. H: 4.9 In.
L: 17.8 In. W: 17.8 In. H: 4.9 In.
H: 5 In.
L: 24.1 In. W: 24.1 In. H: 5 In.

Dimming Protocol

0-10 V
Triac (Leading Edge)

Efficacy

Lamp Life

50000

Lamp Source

Listings

Materials

Formed Steel

Mounting

Ceiling
Wall

Ratings & Compliance

Damp

Shape

Round

Special Programs

Quick Ship

Voltage

120 V
120-277 V

Warranty

10 yr

LL-CNE
