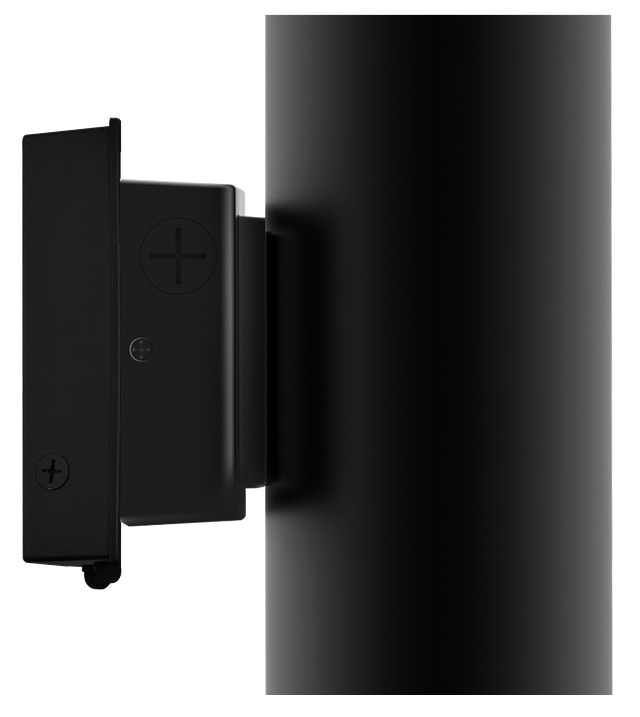

LED Cylinder Wall Mount Large
The LITELUME™ LED Cylinder Wall Mount Large (LL-CWML) is a specification grade field adjustable Uplight/Downlight Wall Mounted luminaire designed for retrofit or new construction. Available in 8”, and 10” diameters. Includes a photocell with on/off dip switch. Choose between uplight, downlight or up/down combination. Featuring 3 level lumen output and 3 color adjustable CCT, allowing for customized energy savings and comfortability.
Applications: Retail Malls, Restaurants, Auto Dealerships, Hospitals, Shopping Centers, Entryways, Tunnels, and Walkways, Exterior Wall Lighting, Building Entrances, Pedestrian Walkways, Multi-use Facilities, Industrial Facilities, Parking Lots, Storage Facilities, Education, Multi-Family, Retail, Office, General Hospitality.
Resources
Specification Grade
High Grade Die cast Aluminum
Striking Architectural Appeal
Tempered Glass Lens
User Friendly Quick Mount Bracket
High Grade Die cast Aluminum
Striking Architectural Appeal
Tempered Glass Lens
User Friendly Quick Mount Bracket
Premium New Generation LED's
Ultra efficient driver
6kV Standard Surge Protection
PF .90
CRI 80
THD <15%
Standard 0-10v continuous Dimming
Field Selectable CCT
Uplight, Downlight or Up & Down Combo Field Selectable
L70 rated lifetime of 60,000 Hours
Calculated L70 of 100,000 Hours
Ultra efficient driver
6kV Standard Surge Protection
PF .90
CRI 80
THD <15%
Standard 0-10v continuous Dimming
Field Selectable CCT
Uplight, Downlight or Up & Down Combo Field Selectable
L70 rated lifetime of 60,000 Hours
Calculated L70 of 100,000 Hours
QuickShip Ordering Information
LL-CWML-8-[30][45][55]-3CCT-UNV-75D-BK-PC
LL-CWML-10-[75][95][105]-3CCT-UNV-75D-BK-PC
LED Wall Pack Lights
LED Up Down Wall Packs
Architectural LED Wall Pack Light
LED Cylinder Wall Light
LL-CWML-8-[30][45][55]-3CCT-UNV-75D-BK-PC
LL-CWML-10-[75][95][105]-3CCT-UNV-75D-BK-PC
LED Wall Pack Lights
LED Up Down Wall Packs
Architectural LED Wall Pack Light
LED Cylinder Wall Light
Lumens
- 4289 Lm
- 6434 Lm
- 7864 Lm
- 10562 Lm
- 13379 Lm
- 14788 Lm
Watts
- 30 w
- 45 w
- 55 w
- 75 w
- 95 w
- 105 w
Beam Angle
- 45
- 75
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Grey
- White
Controls Options
- Photocell
Dimming Protocol
- 0-10 V
Dimming Range
- 10%
Distribution
- Direct
- Indirect
- Indirect/Direct
Efficacy
- 142 lm/w
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
Mounting
- Wall
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- Exterior
- IP65
- Wet
Shape
- Cylinder
Special Programs
- Quick Ship
Voltage
- 120-277 V
Warranty
- 10 yr
