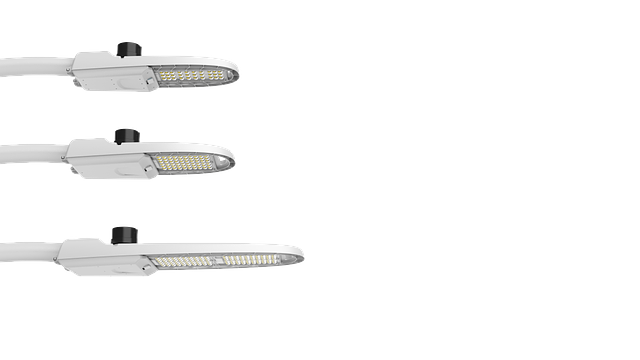

LL-RWE

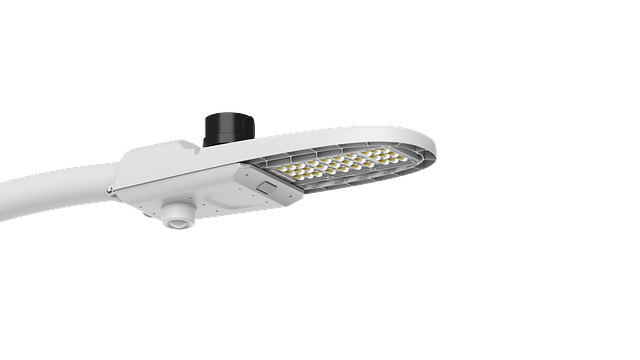

LL-RWE-POLE-2.pngLL-RWE

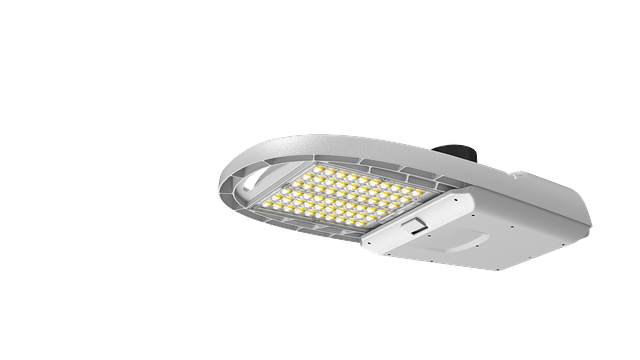

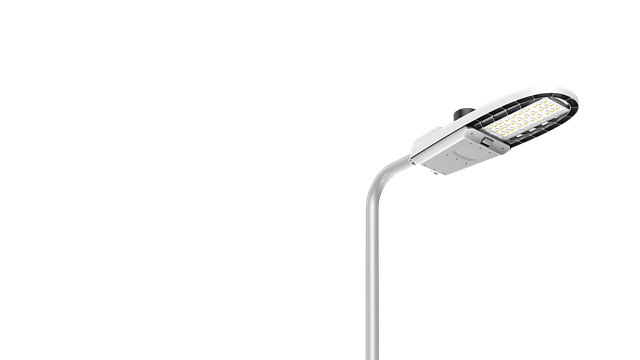

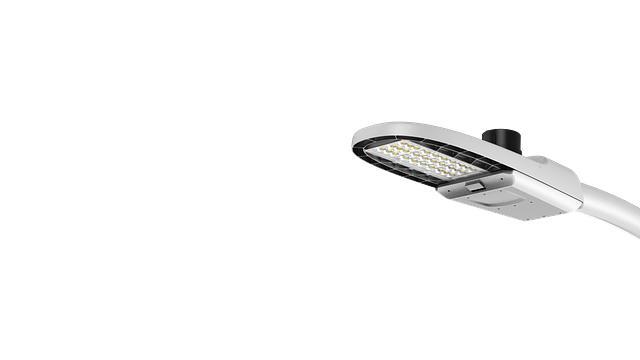

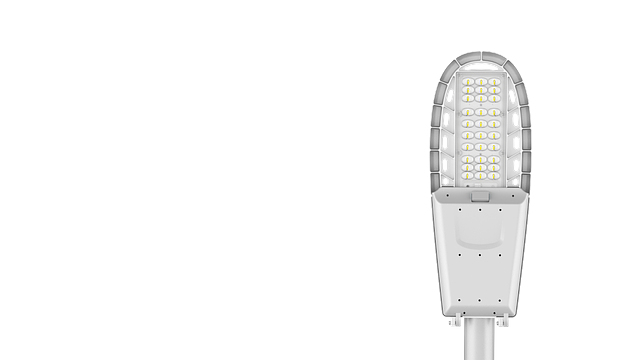

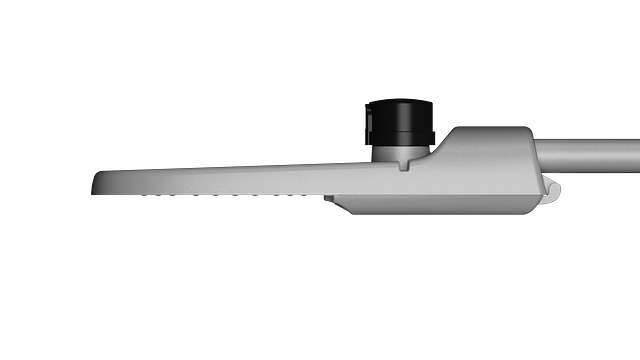

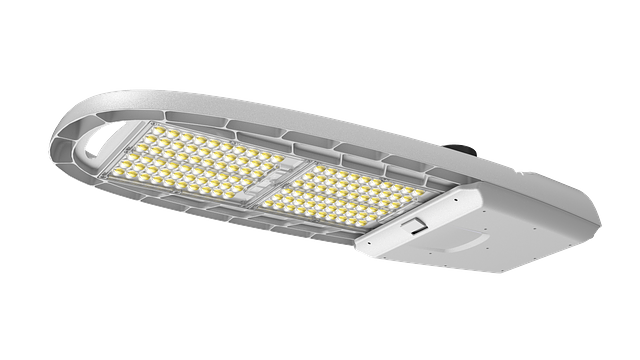

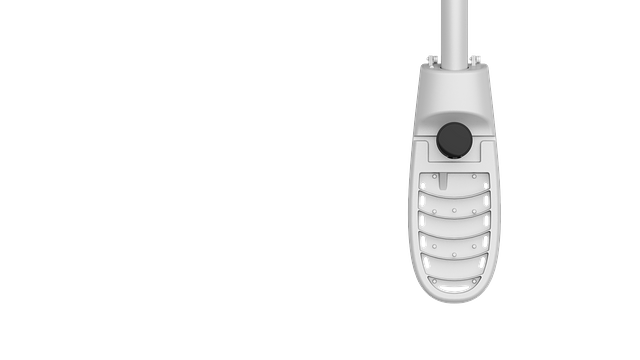

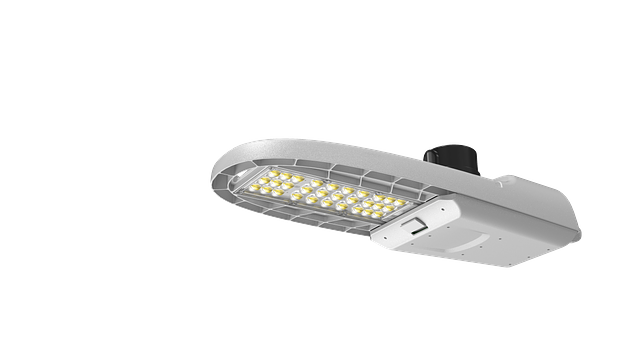

LED Roadway Elite
The LITELUMEā¢ Roadway Elite (LL-RWE) Features a heavy duty die-cast aluminum housing, outstanding corrosion protection, uncompromising optical performance and un-matched versatility for a wide variety of area and roadway applications. First class performance, field selectable light output with a removable door entry, terminal block power set up, industry leading surge protection options, superior lumen maintenance within a robust slim design.
Applications: Municipality, Parking Lot, Roadways, Multi-family, Community and General Site Illumination.
Applications: Municipality, Parking Lot, Roadways, Multi-family, Community and General Site Illumination.
Resources
Die-cast Aluminum
Protective powder Coat
Polycarbonate lens
Protective powder Coat
Polycarbonate lens
3G vibration rated
IP 66 Rated
Wide Range Mounting Slides over to fit 1 5/8" -Ā 2 3/8ā OD
IP 66 Rated
Wide Range Mounting Slides over to fit 1 5/8" -Ā 2 3/8ā OD
Premium LED's
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v dimming 100% - 10%
7,100 to 46,200 lm
High Efficacy 182 LPW
Type 2, 3 and 4 Distribution
Operating Temperature -40Ā°C to 40Ā°C (-40ĖF - + 104ĖF)
Universal 120-277V or 277-480V
NEMA 3 PIN Twist Lock Photocell included
NEMA 7 PIN Twist Lock Photocell optional
Optional PIR or Bluetooth Sensors
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v dimming 100% - 10%
7,100 to 46,200 lm
High Efficacy 182 LPW
Type 2, 3 and 4 Distribution
Operating Temperature -40Ā°C to 40Ā°C (-40ĖF - + 104ĖF)
Universal 120-277V or 277-480V
NEMA 3 PIN Twist Lock Photocell included
NEMA 7 PIN Twist Lock Photocell optional
Optional PIR or Bluetooth Sensors
QuickShip Ordering Information
LL-RWE-15L-UNV-50-SP-T3-GY-TLPC
LL-RWE-15L-UNV-40-SP-T3-GY-TLPC
LL-RWE-31L-UNV-50-SP-T3-GY-TLPC
LL-RWE-31L-UNV-40-SP-T3-GY-TLPC
LL-RWE-46L-UNV-50-SP-T3-GY-TLPC
LL-RWE-46L-UNV-40-SP-T3-GY-TLPC
LED Roadway Light
LED Cobra Head
LL-RWE-15L-UNV-50-SP-T3-GY-TLPC
LL-RWE-15L-UNV-40-SP-T3-GY-TLPC
LL-RWE-31L-UNV-50-SP-T3-GY-TLPC
LL-RWE-31L-UNV-40-SP-T3-GY-TLPC
LL-RWE-46L-UNV-50-SP-T3-GY-TLPC
LL-RWE-46L-UNV-40-SP-T3-GY-TLPC
LED Roadway Light
LED Cobra Head
Weight
- 7.52
- 7.97
- 12.04
Availability
- In Stock
- Quick Ship
CRI
- 80
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Custom
- Grey
- White
Controls Options
- Bi-level Dimming
- Bluetooth
- Daylight Harvesting
- Dimmable
- Motion Sensor
- Photocell
- Synapse
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
- Synapse
Distribution
- Type 2
- Type 3
- Type 4
Efficacy
- 175
Lamp Life
- 102000
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Polycarbonate
Ratings & Compliance
- 3G
- Exterior
- IP66
- Wet
Voltage
- 120-277 V
- 277-480 V
Warranty
- 10 yr
EPA Rating
- .4261
- .5485
- .7845
