LL-PTAP
LL-PTAP.jpgLL-PTAP

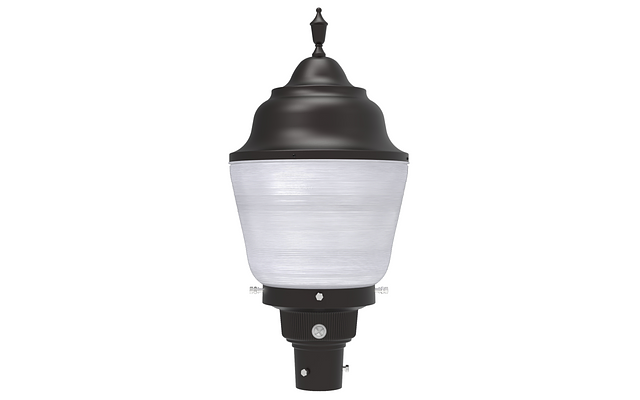

LED Post Top Acorn Premium
The LITELUME™ Post Top Acorn Premium (LL-PTAP) features a UV acrylic optic assembly with specification grade corrosion resistant heavy duty-cast aluminum housing and powder coat finish for long-lasting durability. Glare free design and beautiful finished look makes this post top luminaire an excellent choice.
Applications: Municipality, Pathway, Perimeter, Pedestrian and Walkway lighting.
Applications: Municipality, Pathway, Perimeter, Pedestrian and Walkway lighting.
Resources
Corrosion Resistant Heavy Duty-Cast Aluminum
UV Acrylic Optic Assembly
Spun Aluminum Top or Acrylic Diffuser
Slides over Tenon up to 3” OD
UV Acrylic Optic Assembly
Spun Aluminum Top or Acrylic Diffuser
Slides over Tenon up to 3” OD
Premium LED's
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v dimming 100% - 10%
Photocell with On/Off Dip-switch Included
2,135 - 9,995 lm
High Efficacy up to 143 LPW
Type 5 Distribution
Operating Temperature -40F - 140F
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v dimming 100% - 10%
Photocell with On/Off Dip-switch Included
2,135 - 9,995 lm
High Efficacy up to 143 LPW
Type 5 Distribution
Operating Temperature -40F - 140F
QuickShip Ordering Information

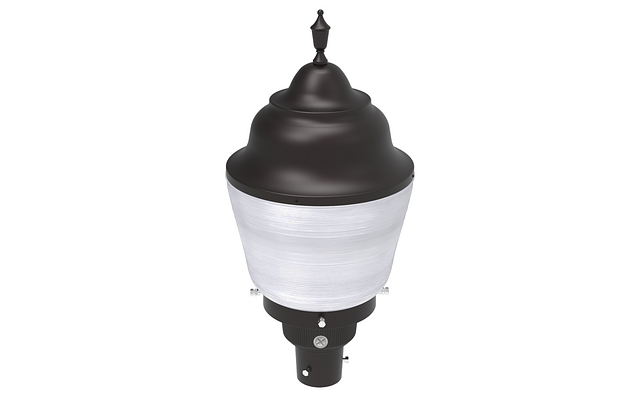

LL-PTAP-SA-7L-UNV-SCT-SP-BZ-PC

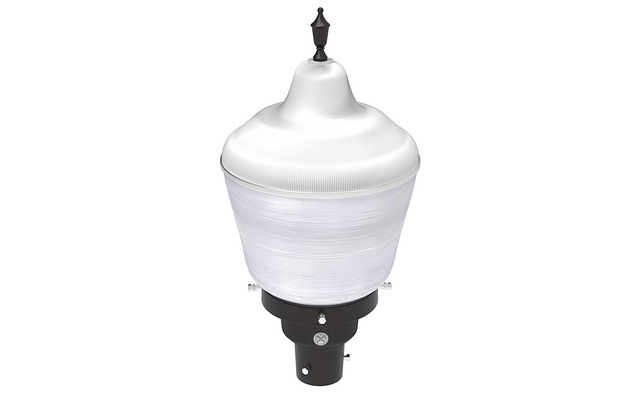

LL-PTAP-AD-10L-UNV-SCT-SP-BZ-PC
LL-PTAP-SA-7L-UNV-SCT-SP-BZ-PC
LL-PTAP-AD-10L-UNV-SCT-SP-BZ-PC
Lumens
- 2935 Lm
- 4280 Lm
- 4892 Lm
- 6850 Lm
- 7139 Lm
- 9995 Lm
Watts
- 30 w
- 50 w
- 70 w
Availability
- In Stock
- Quick Ship
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Custom
- Dark Green
- Gray
- White
Controls Options
- Photocell
Dimming Protocol
- 0-10 V
Distribution
- Type 5
Lamp Life
- 174000 hrs
Lamp Source
- LED
Listings
- UL
- cULus
Materials
- Acrylic
- Aluminum
- Die-Cast Aluminum
Ratings & Compliance
- Exterior
- FCC
- IP65
- Wet
Shape
- Acorn
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
Warranty
- 10 yr
