LL-WPHM
LL-WPHM-BACK.jpgLL-WPHM

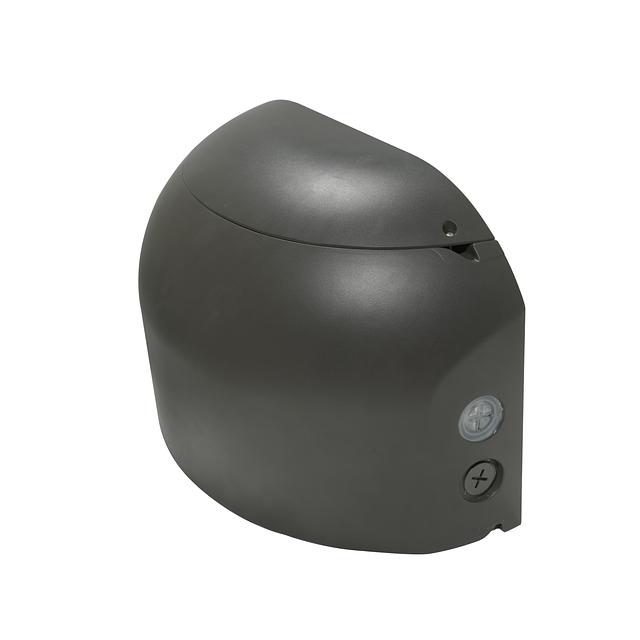

LED WALL PACK HALF MOON
The LITELUME™ Wallpack Half Moon (LL-WPHM) is a Dark Sky compliant LED fixture with a durable polycarbonate optical lens. Applications: Entryways, Tunnels, and Walkways, Exterior Wall Lighting, Building Entrances, Pedestrian Walkways, Multi-use Facilities, Industrial Facilities, Parking Lots, Storage Facilities, Education, Multi-Family, Retail, Office
Resources
Die-cast Aluminum
Protective Powder Coat
Polycarbonate Lens
Protective Powder Coat
Polycarbonate Lens
Premium LED's
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v continuous 12Vdc auxiliary dimming
Field Selectable Lumens 5,483 to 13,690 lm
Field Selectable CCT
Standard Surge Protection 4kV for 8L, 6kV for 13L
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v continuous 12Vdc auxiliary dimming
Field Selectable Lumens 5,483 to 13,690 lm
Field Selectable CCT
Standard Surge Protection 4kV for 8L, 6kV for 13L
Integrated Photocell with On/Off Dip-switch
Type 3 Distribution
Type 3 Distribution
Long-life Premium LEDs provide 160,000 hours of operation with at least 70% of initial lumen output (L70), and 48,000 hours with at least 90% of initial lumen output (L90).**
Complies with FCC Part 15, class A
IP65 rated for ingress protection.
IK08 rated for impact protection.
BUG ( Back, Up, Glare ) Rating
B3-U0-G1
B3-U0-G1
QuickShip Ordering Information
LL-WPHM-8L-UNV-SCT-SP-BZ-PC
LL-WPHM-13L-UNV-SCT-SP-BZ-PC
LED Wall Pack Lights
LED Dark Sky Outdoor Wall Lights
LED Full Cutoff Wall Packs
LL-WPHM-8L-UNV-SCT-SP-BZ-PC
LL-WPHM-13L-UNV-SCT-SP-BZ-PC
LED Wall Pack Lights
LED Dark Sky Outdoor Wall Lights
LED Full Cutoff Wall Packs
Watts
- 40 w
- 50 w
- 60 w
- 80 w
- 90 w
- 100 w
Weight
- 3.8 lbs
- 6.41 lbs
Availability
- In Stock
- Quick Ship
CRI
- 80 CRI
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Bronze
Controls Options
- Photocell
Dimensions
- H: 4.51 In. W: 6.76 In.
- H: 6.04 In. L: 13.98 In. W: 8.72 In.
Dimming Protocol
- 0-10 V
Distribution
- Type 3
Efficacy
- 150 lm/w
Lamp Life
- 160000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Polycarbonate
Mounting
- Wall
Ratings & Compliance
- DarkSky Approved
- Exterior
- FCC
- IK08
- IP65
- Wet
Special Programs
- Quick Ship
Warranty
- 10 yr
