LED Flat Panel Round 4"

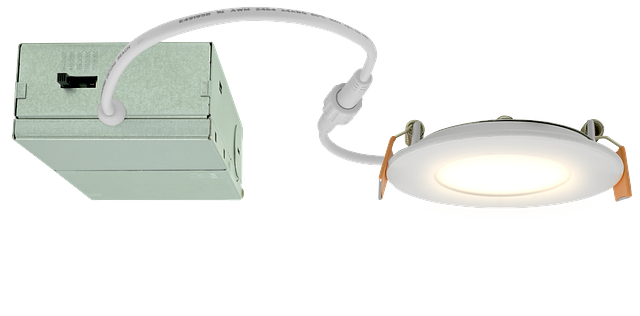

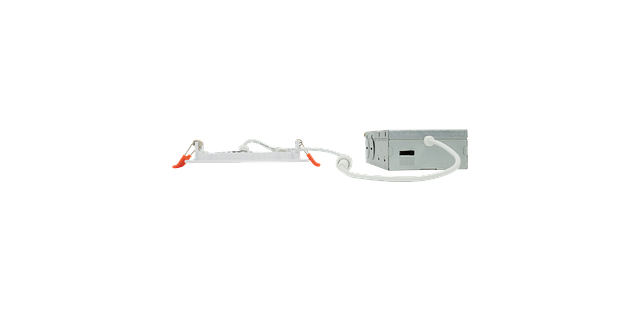

The LL-FPR4 Series Flat Panel Canless Downlight delivers sleek performance and versatility for modern spaces. Available in 4" with 5 CCT field selectable color temperatures ranging from 2700K to 5000K. High Performance LED's provide a Vibrant light. Easy recessed installation without a housing makes it ideal for both new construction and retrofit applications. Where a frame kit is needed, we offer a universal frame kit. Black or Brushed Nickel finish trim rings Available
Resources
Premium Powder Coat
Aluminum White Housing
White Trim
Black or Brushed Nickel Finish Trim Rings Available
Aluminum White Housing
White Trim
Black or Brushed Nickel Finish Trim Rings Available
PF > 0.90.
THD < 20%
CRI 90
Triac Dimming @ 120v
Surge Protection = 0.5kV
Type IC
Operating Temperature -4°F to 113°F
LUTRON COMPATIBLE DIMMERS AND CONTROLS
TG-600PR-WH
SLV-600P-AL
DVCL-153P
S-600PR-WH
DV-600PR-WH
MSCL-OP153M
CTCL-153PDH-WH
SCL-153PH-WH
PD-6WCL
TGCL-153PH-LA
GT-600P
MACL-153M//MA-R
LEVITON COMPATIBLE DIMMERS AND CONTROLS)
6672
6674
IPL06
RNL06
DSL06
THD < 20%
CRI 90
Triac Dimming @ 120v
Surge Protection = 0.5kV
Type IC
Operating Temperature -4°F to 113°F
LUTRON COMPATIBLE DIMMERS AND CONTROLS
TG-600PR-WH
SLV-600P-AL
DVCL-153P
S-600PR-WH
DV-600PR-WH
MSCL-OP153M
CTCL-153PDH-WH
SCL-153PH-WH
PD-6WCL
TGCL-153PH-LA
GT-600P
MACL-153M//MA-R
LEVITON COMPATIBLE DIMMERS AND CONTROLS)
6672
6674
IPL06
RNL06
DSL06
QuickShip Ordering Information
LL-FPR4-6L-KFS

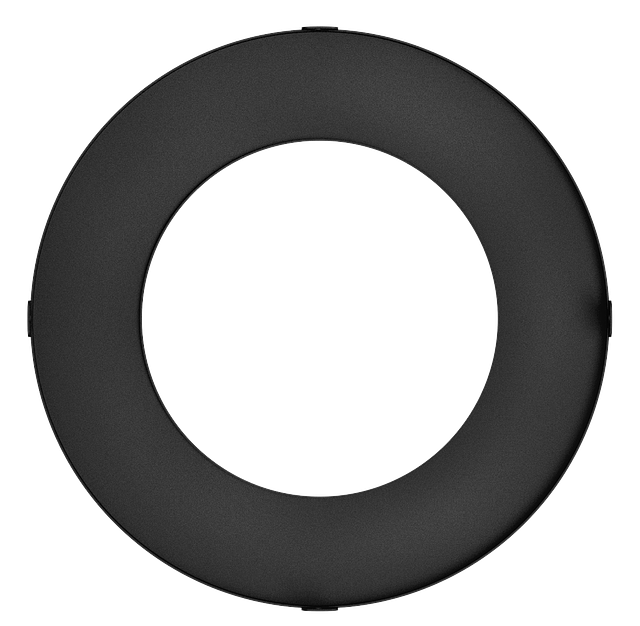

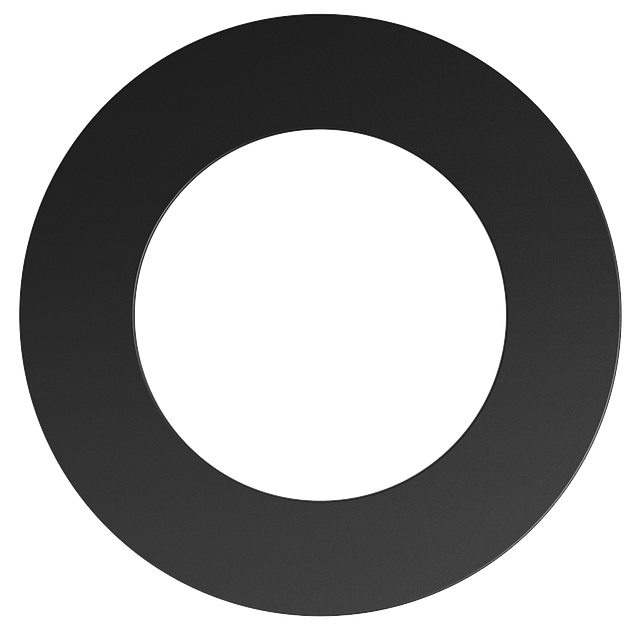

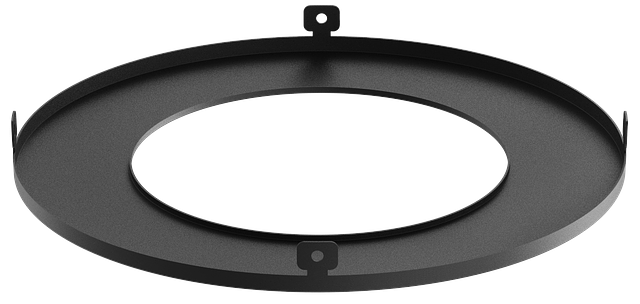

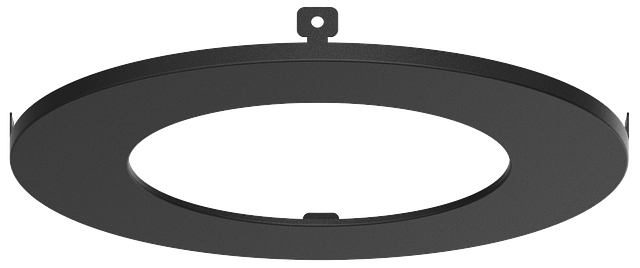

LL-FPR4-TR-BK TRIM RING BLACK FINISH

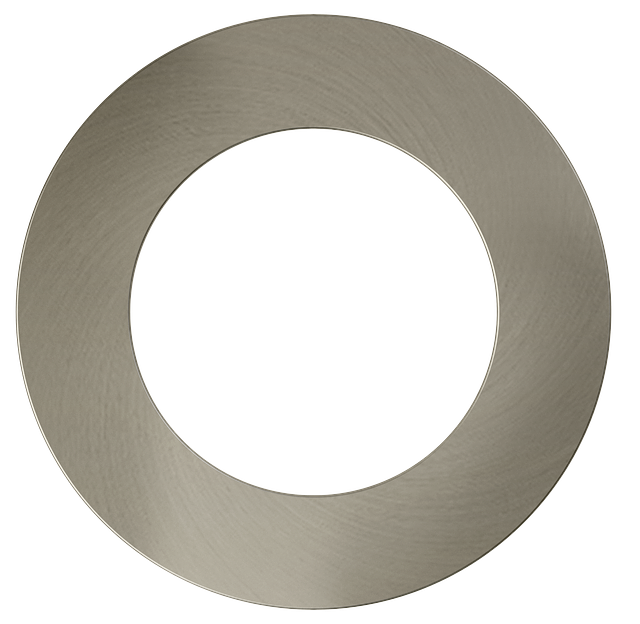

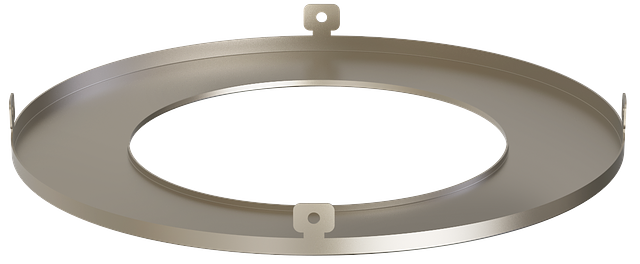

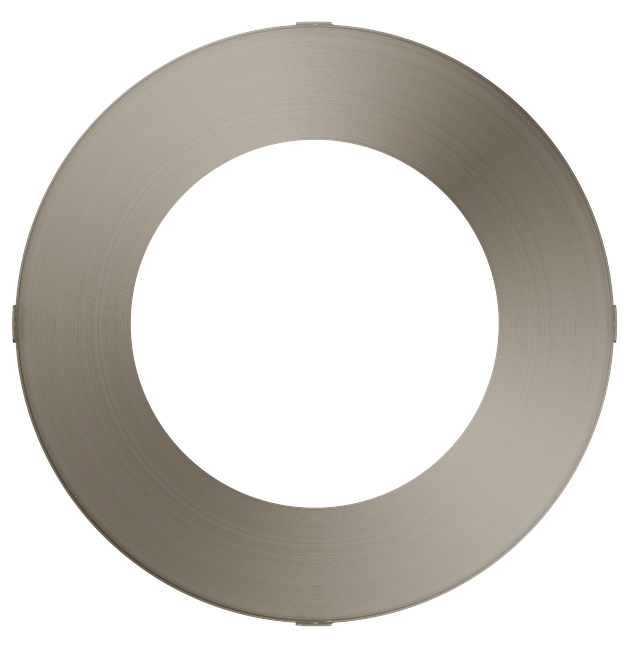

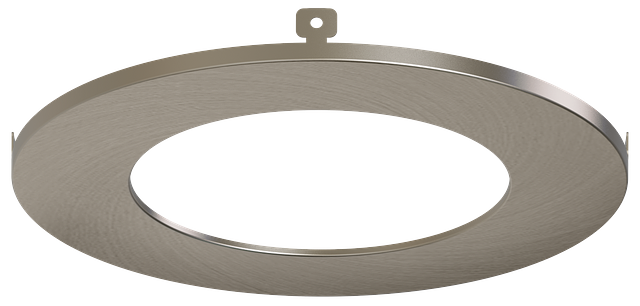

LL-FPR4-TR-BN TRIM RING BRUSHED NICKEL
LL-FPR4-6L-KFS
LL-FPR4-TR-BK TRIM RING BLACK FINISH
LL-FPR4-TR-BN TRIM RING BRUSHED NICKEL
Lumens
- 600 Lm
Watts
- 7 w
Availability
- In Stock
- Quick Ship
Beam Angle
- 110
CRI
- 90 CRI
CCT
- Field Selectable CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Color / Finish
- Black
- Brushed Nickel
- White
Dimming Protocol
- Triac (Leading Edge)
Dimming Range
- 1%
Distribution
- Wide
Installation Type
- New Construction
- Retrofit & Remodel
Lamp Life
- 181000 hrs
Lamp Source
- LED
Listings
- cETLus
Materials
- Aluminum
Ratings & Compliance
- Energy Star
- Exterior
- FCC
- IC Rated
- Interior
- Wet
Shape
- Round
Special Programs
- Quick Ship
- Stock
Trim Finish
- Black
- White
Voltage
- 120 V
Warranty
- 10 yr
