LL-SL
SL2.jpegLL-SL

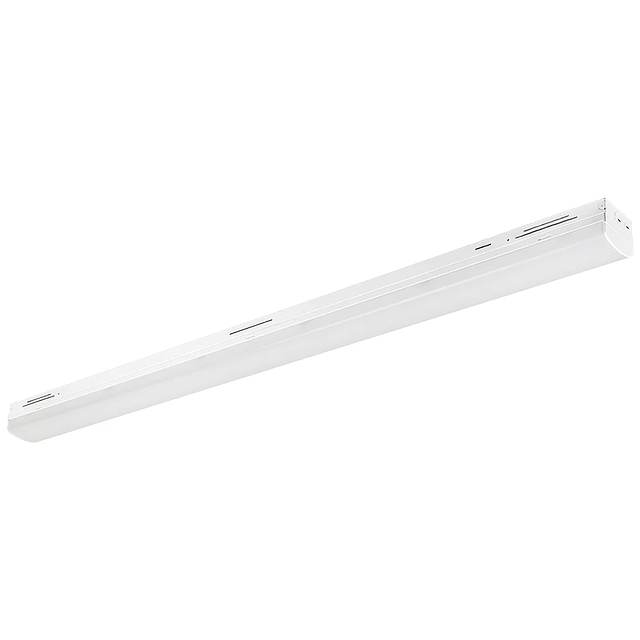

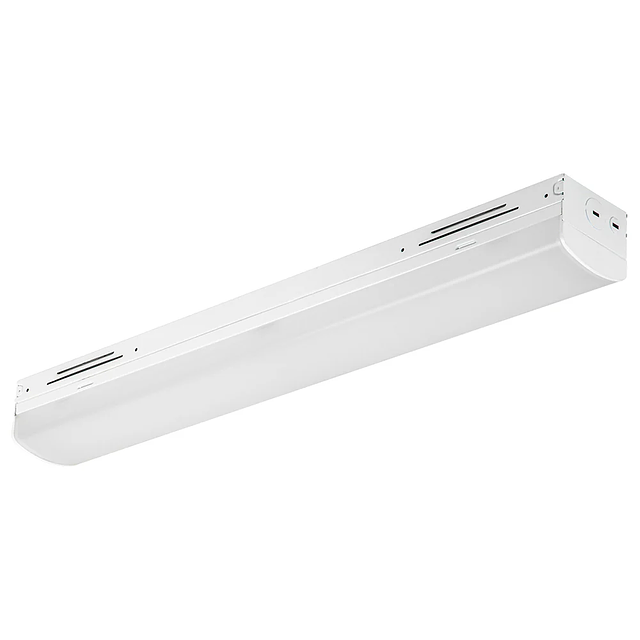

Strip Luminaire Adjustalume Series
The LITELUMEā¢ LED Strip Luminaire (LL-SL) Adjustalume Series is a surface mounted luminaire designed for retrofit or new construction. Applications include offices, hallways, conference rooms, bathrooms and many other commercial, industrial and residential areas. Featuring 3 level lumen output and 3 color adjustable CCT, allowing for customized energy savings and comfortability. High Power factor .90 and low THD.
Resources
QuickShip Ordering Information
LL-SL2-[15][20][25]-3CCT-UNV
LL-SL4-[25][30][40]-3CCT-UNV
LL-SL8-[55][60][65]-3CCT-UNV
LL-SL8-[65][75][91]-3CCT-UNV
LL-SL8-[65][75][91]-3CCT-UNV-ANT-3C
Package: LL-SL2-[15][20][25]-3CCT-UNV
Packing size: 22.91x3.11x2.72 inch
Weight: 3.3 LBS ļ¼1 PCSļ¼
Packing size: 25.63x9.84x5.98 inch
Weight: 20.46 LBS (6 PCSļ¼
Pallet size: 42x48x52 inch
Qtyļ¼432 pcs / 72 ctn
Total Weight: 1054 LBS
Package: LL-SL4-[25][30][40]-3CCT-UNV
Packing size: 47.95x3.15x2.72 inch
Weight: 5.28 LBS (1 PCSļ¼
Packing size: 50.67x9.84x5.98 inch
Weight: 35.64 LBS (6 PCSļ¼
Pallet size: 42x48x71 inch
Qtyļ¼264 pcs / 44 ctns
Total Weight: 1598 LBS
Package: LL-SL8-[55][60][65]-3CCT-UNV
Packing size: 94.96x3.19x2.76 inch
Weight: 9.9 LBS (1 PCSļ¼
Packing size: 97.99x6.89x5.87 inch
Weight: 41.8 LBS (4 PCSļ¼
Pallet size: 100x42x75 inch
Qtyļ¼288 pcs / 72 ctn
Total Weight: 3040 LBS
Package: LL-SL8-[65][75][91]-3CCT-UNV
Packing size: 94.96x3.19x2.76 inch
Weight: 9.57 LBS (1 PCSļ¼
Packing size: 101.57x13.66x3.07 inch
Weight: 41.47 LBS (4 PCSļ¼
Pallet size: 100x42x75 inch
Qtyļ¼288 pcs / 72 ctn
Total Weight: 3016 LBS
LL-SL2-[15][20][25]-3CCT-UNV
LL-SL4-[25][30][40]-3CCT-UNV
LL-SL8-[55][60][65]-3CCT-UNV
LL-SL8-[65][75][91]-3CCT-UNV
LL-SL8-[65][75][91]-3CCT-UNV-ANT-3C
Package: LL-SL2-[15][20][25]-3CCT-UNV
Packing size: 22.91x3.11x2.72 inch
Weight: 3.3 LBS ļ¼1 PCSļ¼
Packing size: 25.63x9.84x5.98 inch
Weight: 20.46 LBS (6 PCSļ¼
Pallet size: 42x48x52 inch
Qtyļ¼432 pcs / 72 ctn
Total Weight: 1054 LBS
Package: LL-SL4-[25][30][40]-3CCT-UNV
Packing size: 47.95x3.15x2.72 inch
Weight: 5.28 LBS (1 PCSļ¼
Packing size: 50.67x9.84x5.98 inch
Weight: 35.64 LBS (6 PCSļ¼
Pallet size: 42x48x71 inch
Qtyļ¼264 pcs / 44 ctns
Total Weight: 1598 LBS
Package: LL-SL8-[55][60][65]-3CCT-UNV
Packing size: 94.96x3.19x2.76 inch
Weight: 9.9 LBS (1 PCSļ¼
Packing size: 97.99x6.89x5.87 inch
Weight: 41.8 LBS (4 PCSļ¼
Pallet size: 100x42x75 inch
Qtyļ¼288 pcs / 72 ctn
Total Weight: 3040 LBS
Package: LL-SL8-[65][75][91]-3CCT-UNV
Packing size: 94.96x3.19x2.76 inch
Weight: 9.57 LBS (1 PCSļ¼
Packing size: 101.57x13.66x3.07 inch
Weight: 41.47 LBS (4 PCSļ¼
Pallet size: 100x42x75 inch
Qtyļ¼288 pcs / 72 ctn
Total Weight: 3016 LBS
Lumens
- 2285 Lm
- 3077 Lm
- 3719 Lm
- 3806 Lm
- 4653 Lm
- 6100 Lm
- 8595 Lm
- 9190 Lm
- 9677 Lm
Watts
- 15 w
- 20 w
- 25 w
- 30 w
- 40 w
- 55 w
- 60 w
- 65 w
Weight
- 5.28 lbs
- 35.64 lbs
CRI
- 83 CRI
CCT
- Field Selectable CCT
- 3500K
- 4000K
- 5000K
Color / Finish
- White
Controls Options
- Motion Sensor
Dimming Protocol
- 0-10 V
Dimming Range
- 10%
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Mounting
- Surface
- Surface End
- Suspended
Emergency Options
- Integral EM Battery
Ratings & Compliance
- DLC
- DLC Premium
- Damp
Special Programs
- Quick Ship
Voltage
- 120-277 V
- UNV
Warranty
- 10 yr
