LL-FLAP

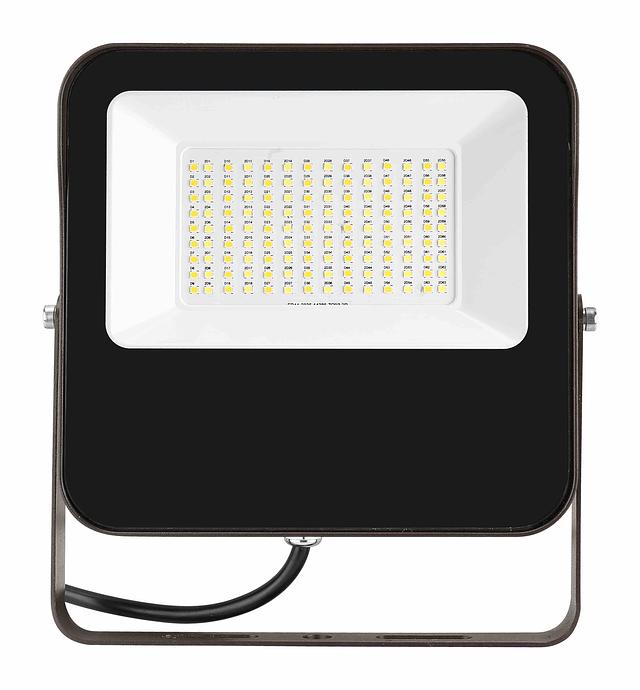

LED Floodlight All Purpose

The LITELUMEā„¢ Floodlight All Purpose (LL-FLAP) is a high performance LED luminaire designed with versatility, economy and flexibility. The rugged, die-cast aluminum housing with UV resistant powder coat finish comes in 3 wattage/size packages, includes photocell & cap with multiple mounting options stocked and ready to ship.

Applications: Parking lots, Auto dealerships, Billboard, FaƧade, Wall Washing, Landscape, and general outdoor lighting.
Specification Sheet

Resources

Specsheets


Die-cast AluminumĀ
Heat & Impact resistant toughened glass
Durable Protective Powder CoatĀ
Premium LED's
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard 0-10v Dimming, 10 - 100% Range
Field Selectable Lumens 1,600 to 18,000 lmĀ
Field Selectable CCT
High Performance Acrylic NEMA 7Hx7V opticsĀ


QuickShip Ordering Information

  • LL-FLAP-[10][15][20][27]-3CCT-UNV-N77-BZ-YK-PC
  • LL-FLAP-[10][15][20[27]-3CCT-UNV-N77-BZ-KM-PC
  • LL-FLAP-[27][40][55][65]-3CCT-UNV-N77-BZ-KM-PC
  • LL-FLAP-[27][40][55][65]-3CCT-UNV-N77-BZ-YK-PC
  • LL-FLAP-[50][70][100][120]-3CCT-UNV-N77-BZ-TR-PC
  • LL-FLAP-[50][70][100][120]-3CCT-UNV-N77-BZ-SF-PC

LED Flood Lights

Lumens

  • 1600
  • 2200
  • 2800
  • 3600
  • 3900
  • 5900
  • 7900
  • 8500
  • 9500
  • 11000
  • 15000
  • 18000

Watts

  • 10
  • 15
  • 20
  • 27
  • 40
  • 50
  • 55
  • 65
  • 70
  • 100
  • 120

Beam Angle

  • 7x7

CRI

  • 80

CCT

  • Field Selectable CCT
  • 3000K
  • 4000K
  • 5000K

Color / Finish

  • Bronze

Controls Options

  • Photocell

Dimming Protocol

  • 0-10 V

Dimming Range

  • 10%

Distribution

  • Wide Flood

Lamp Life

  • 100000

Lamp Source

  • LED

Listings

  • UL

Mounting

  • Knuckle
  • Slip Fitter
  • Trunnion
  • Wall
  • Yoke

Ratings & Compliance

  • Buy American Act (BAA)
  • IP65
  • TAA
  • Wet

Special Programs

  • Quick Ship

Voltage

  • 120-277 V
  • UNV

Warranty

  • 10 yr

NEMA Beam

  • 7x7
