LL-HMFL

LED High Mast Flood Light Generation 3

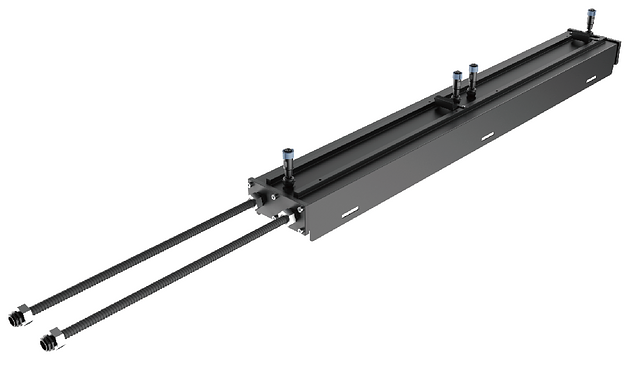

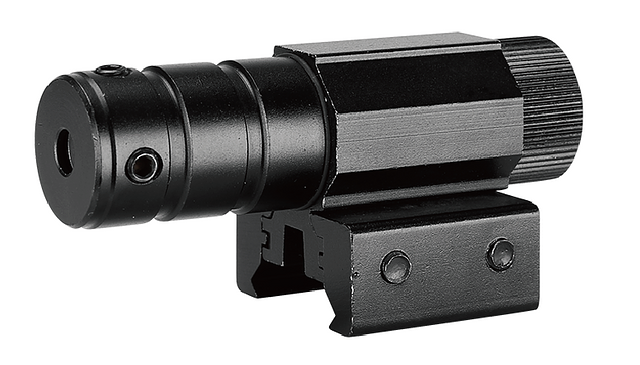

The LITELUMETM High Mast Flood Light Generation 3 (LL-HMFL) incorporates an updated optional Remote Power System, eliminating the need for a bucket truck for maintenance and provides flexibility of installation. The LED package, premium driver, built in surge suppression, laser site guide along with upgraded dynamic thermal management are all standard. Featuring a beautiful solid state diecast aluminum body, with a premium patented design, 3G vibration rated, specifically tailored for high mast, dock, port, yard and any other heavy duty industrial applications. Controls Ready.
Specification Sheet

Resources

Lumens

  • 115500 Lm
  • 165000 Lm

Watts

  • 850 w
  • 1200 w

CRI

  • 70 CRI

CCT

  • 4000K
  • 5000K
  • 5700K

Dimming Protocol

  • 0-10 V

Dimming Range

  • 10%

Distribution

  • Medium Flood

Lamp Life

  • 100000 hrs

Lamp Source

  • LED

Listings

  • UL

Ratings & Compliance

  • IP65
  • Title 24
  • Wet

Voltage

  • 120-277 V
  • 480 V
  • UNV

Warranty

  • 10 yr
