LL-WPHR
Screen Shot 2023-12-12 at 2.06.09 PM.png
LL-WPHR-2.jpgLL-WPHR

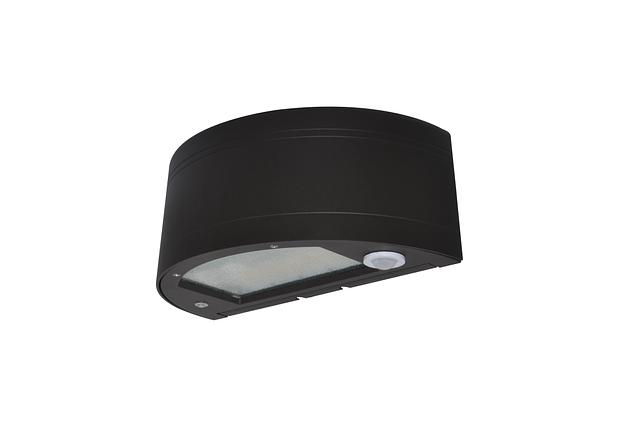

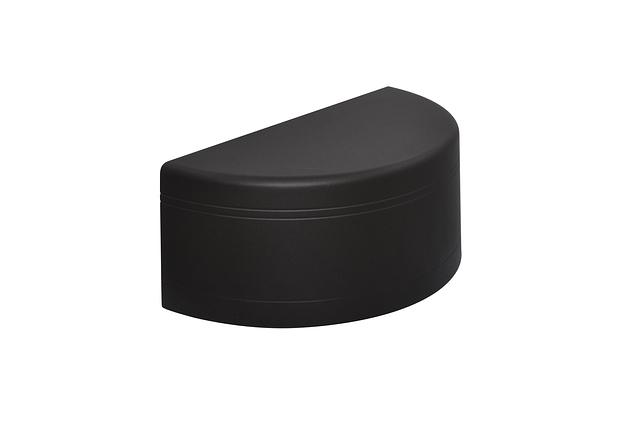

LED Wall Pack Half Round
The Wall Pack Half Round (LL-WPHR) provides multiple wattages of down light. Featuring high performance LEDs and a long lasting driver, this fixture provides effective lighting all around. Applications: Retail Malls, Restaurants, Auto Dealerships, Hospitals, Shopping Centers, Entryways, Tunnels, and Walkways, Exterior Wall Lighting, Building Entrances, Pedestrian Walkways, Multi-use Facilities, Industrial Facilities, Parking Lots, Storage Facilities, Education, Multi-Family, Retail, Office, General Hospitality.
Resources
Specification Grade
High Grade Die cast Aluminum
Striking Architectural Appeal
Tempered Glass Lens
User Friendly Quick Mount Bracket with Integrated Level Bub
Forward Throw
Wide Throw
High Grade Die cast Aluminum
Striking Architectural Appeal
Tempered Glass Lens
User Friendly Quick Mount Bracket with Integrated Level Bub
Forward Throw
Wide Throw
Premium New Generation LED's
Ultra efficient driver
6kV Standard Surge Protection
PF .90
CRI 80
THD <20%
Standard 0-10v continuous Dimming
Field Selectable Lumens 3,085 to 8,567 lm
Field Selectable CCT
L70 rated lifetime of 60,000 Hours
Calculated L70 of 100,000 Hours
Ultra efficient driver
6kV Standard Surge Protection
PF .90
CRI 80
THD <20%
Standard 0-10v continuous Dimming
Field Selectable Lumens 3,085 to 8,567 lm
Field Selectable CCT
L70 rated lifetime of 60,000 Hours
Calculated L70 of 100,000 Hours
QuickShip Ordering Information
LL-WPHR-[25][45][65]-3CCT-UNV-FT-BZ
LL-WPHR-[25][45][65]-3CCT-UNV-WT-BZ
LED Wall Pack Lights
LED Dark Sky Outdoor Wall Lights
LED Full Cutoff Wall Packs
Architectural LED Wall Pack Light
LED Half Round Wall Light
LL-WPHR-[25][45][65]-3CCT-UNV-FT-BZ
LL-WPHR-[25][45][65]-3CCT-UNV-WT-BZ
LED Wall Pack Lights
LED Dark Sky Outdoor Wall Lights
LED Full Cutoff Wall Packs
Architectural LED Wall Pack Light
LED Half Round Wall Light
Lumens
- 3364 Lm
- 6295 Lm
- 8567 Lm
Watts
- 25 w
- 45 w
- 65 w
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Custom
- Gray
- White
Controls Options
- Occupancy Sensor
- Photocell
Dimming Protocol
- 0-10 V
Distribution
- Asymmetrical
- Type 4
- Type II
- Type III
Efficacy
- 145 lm/w
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Glass
Mounting
- Wall
Emergency Options

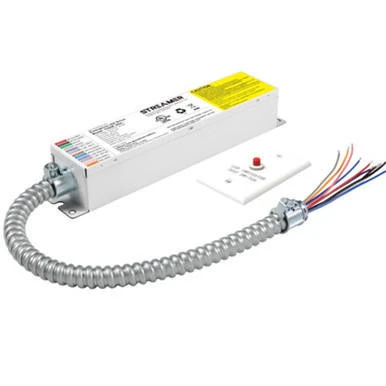

- Emergency Battery Backup
Ratings & Compliance
- DarkSky Approved
- Exterior
- FCC
- IP65
- RoHS
- Title 20
- Title 24
- Wet
Shape
- Curve
- Round
Special Programs
- Quick Ship
Voltage
- 120-277 V
- UNV
Warranty
- 10 yr
