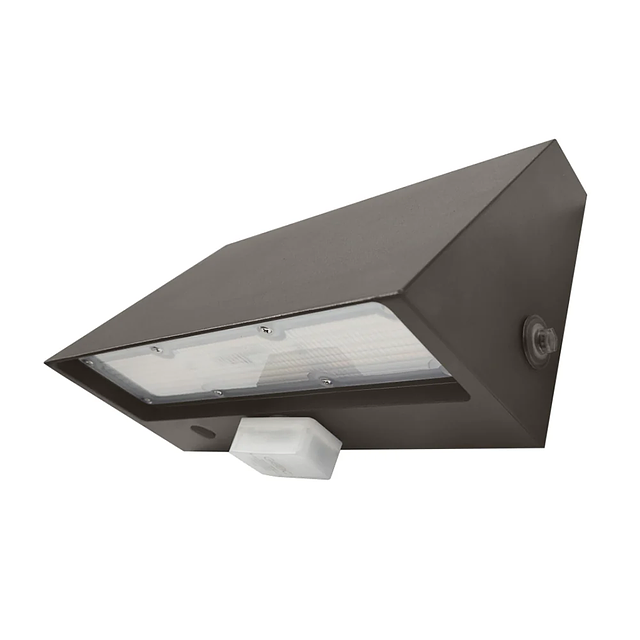

LED Wallpack Medium Full Cutoff
The LITELUMEā¢ Wallpack Medium Full Cutoff (LL-WPMFC) is a mid-sized, LED fixture featuring die-cast aluminum housing and a superior dual coat finish. Applications: Entryways, Tunnels, and Walkways, Exterior Wall Lighting, Building Entrances, Pedestrian Walkways, Multi-use Facilities, Industrial Facilities, Parking Lots, Storage Facilities, Education, Multi-Family, Retail, Office.
Resources
Die-cast Aluminum
Protective powder Coat
Polycarbonate lens
Protective powder Coat
Polycarbonate lens
Premium LED's
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v continuous 12Vdc auxiliary dimming
Field Selectable Lumens 1,675 to 3,779 lm
Field Selectable CCT
BUG ( Back, Up, Glare ) Rating
12W SETTING B1-U0-G0
18W SETTING B1-U0-G0
24W SETTING B2-U0-G0
30W SETTING B2-U0-G0
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v continuous 12Vdc auxiliary dimming
Field Selectable Lumens 1,675 to 3,779 lm
Field Selectable CCT
BUG ( Back, Up, Glare ) Rating
12W SETTING B1-U0-G0
18W SETTING B1-U0-G0
24W SETTING B2-U0-G0
30W SETTING B2-U0-G0
QuickShip Ordering Information
LL-WPMFC-[12][18][24][30]-3CCT-UNV-BZ-PC
LL-WPMFC-[12][18][24][30]-3CCT-HV-BZ
Package: LL-WPMFC-[12][18][24][30]-3CCT-UNV-BZ-PC
Packing sizeļ¼11.22x5.12x6.69 inch (1PCS)
Weightļ¼5.17 LBS
Packing sizeļ¼12.01x11.22x14.57 inch (4PCS)
Weightļ¼22.66LBS
Pallet size: 42x48x65 inch
Qtyļ¼192 pcs /48 ctn
Total Weight:1118 LBS
LED Wall Pack Lights
LED Dark Sky Outdoor Wall Lights
LED Full Cutoff Wall Packs
LL-WPMFC-[12][18][24][30]-3CCT-UNV-BZ-PC
LL-WPMFC-[12][18][24][30]-3CCT-HV-BZ
Package: LL-WPMFC-[12][18][24][30]-3CCT-UNV-BZ-PC
Packing sizeļ¼11.22x5.12x6.69 inch (1PCS)
Weightļ¼5.17 LBS
Packing sizeļ¼12.01x11.22x14.57 inch (4PCS)
Weightļ¼22.66LBS
Pallet size: 42x48x65 inch
Qtyļ¼192 pcs /48 ctn
Total Weight:1118 LBS
LED Wall Pack Lights
LED Dark Sky Outdoor Wall Lights
LED Full Cutoff Wall Packs
Lumens
- 1675 Lm
- 2413 Lm
- 3102 Lm
- 3779 Lm
Watts
- 12 w
- 18 w
- 24 w
- 30 w
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- White
Controls Options
- Motion Sensor
- Photocell
Dimming Protocol
- 0-10 V
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Polycarbonate
Ratings & Compliance
- DLC
- DarkSky Approved
- Title 24
- Wet
Special Programs
- Quick Ship
Voltage
- 120-277 V
- 277 V
- UNV
Warranty
- 10 yr
