LL-PGO

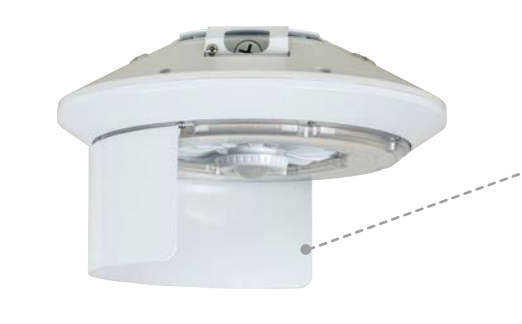

LL-PGO-SHIELD.jpegLL-PGO

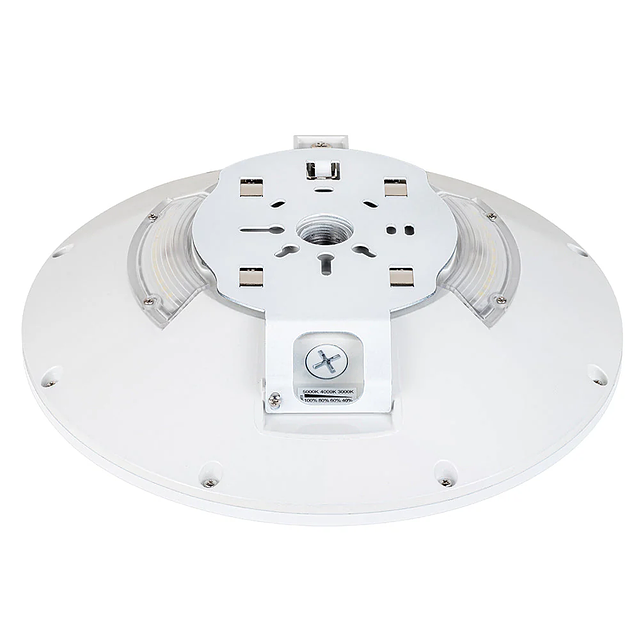

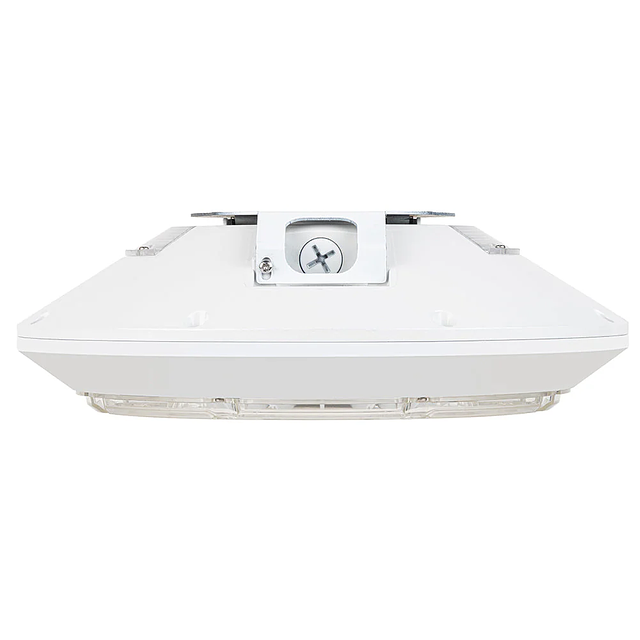

LED Parking Garage Ocular
The LITELUMEā¢ LED Parking Garage Ocular (LL-PGO) is a low profile luminaire constructed with a IP65 rated one piece die cast housing suitable for both indoor and outdoor applications. Visually comfortable with 11.4% up light to provide enhance uniformity. Featuring a proprietary optical system with anti-glare lens making this fixture ideal for parking garages, storage areas, walkways and low or high security areas.
Resources
High performance die cast aluminum
Optical lens made of durable quality UV protected polycarbonate
156 degree beam angle with soft illumination
11.4% Uplight
Optical lens made of durable quality UV protected polycarbonate
156 degree beam angle with soft illumination
11.4% Uplight
Premium LED's under driven for long long life and cool operation
Ultra efficient driver 90%
PF .90
CRI 80
Ultra efficient driver 90%
PF .90
CRI 80
QuickShip Ordering Information
LL-PGO-[28][42][56][70]-2CCT-UNV-WH
Package:
Packing size: 13.19x13.19x5.91 inch
Weight: 7.7 LBS
Pallet size: 42x48x66 inch Qtyļ¼90 pcs
Total Weight: 723 LBS
LED Canopy Lights, LED Parking Garage Lights
LL-PGO-[28][42][56][70]-2CCT-UNV-WH
Package:
Packing size: 13.19x13.19x5.91 inch
Weight: 7.7 LBS
Pallet size: 42x48x66 inch Qtyļ¼90 pcs
Total Weight: 723 LBS
LED Canopy Lights, LED Parking Garage Lights
Lumens
- 4326 Lm
- 5818 Lm
- 7321 Lm
- 9080 Lm
Watts
- 28 w
- 42 w
- 56 w
- 70 w
Beam Angle
- 150
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- White
Controls Options
- Motion Sensor
Dimming Protocol
- 0-10 V
Distribution
- Type V
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Polycarbonate
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- IP65
- Title 24
- Wet
Shape
- Round
Special Programs
- Quick Ship
Voltage
- 120-277 V
- UNV
Warranty
- 10 yr
