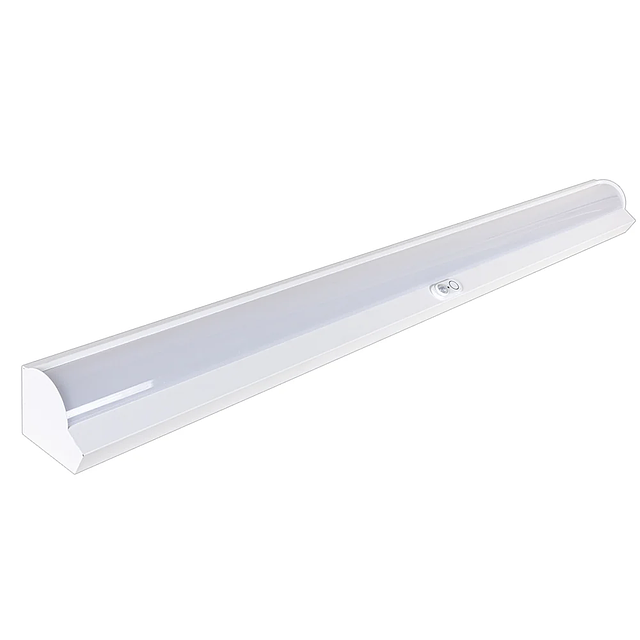

LL-SW

LED Stairwell Luminaire

The LITELUMEā„¢Ā  LED Stairwell Luminaire (LL-SW) is a surface mounted luminaire specifically optimized for use in stairwells, corridors & hallways. Designed for retrofit or new construction, with vandal resistant housing. Equipped with an integrated pir sensor and multiple emergency battery backup options. Featuring 3 level lumen output and 3 color adjustable CCT, allowing for customized energy savings and comfortability.
Specification Sheet

Resources

Specsheets


Lumens

  • 4200 Lm
  • 6600 Lm

Watts

  • 35 w
  • 45 w
  • 55 w

Weight

  • 4.85 lbs

CRI

  • 83 CRI

CCT

  • Field Selectable CCT
  • 3500K
  • 4000K
  • 5000K

Circuit

  • Dual Circuit
  • Single Circuit

Dimensions

  • H: 3.9 In. L: 3.4 In. W: 47.9 In.

Dimming Protocol

  • 0-10 V

Dimming Range

  • 10%

Lamp Life

  • 100000 hrs

Lamp Source

  • LED

Listings

  • UL

Materials

  • Aluminum

Mounting

  • Wall

Emergency Options

  • Integral EM Battery

Ratings & Compliance

  • Damp

Voltage

  • 120-277 V

Warranty

  • 10 yr
