LED Wrap Around Premium

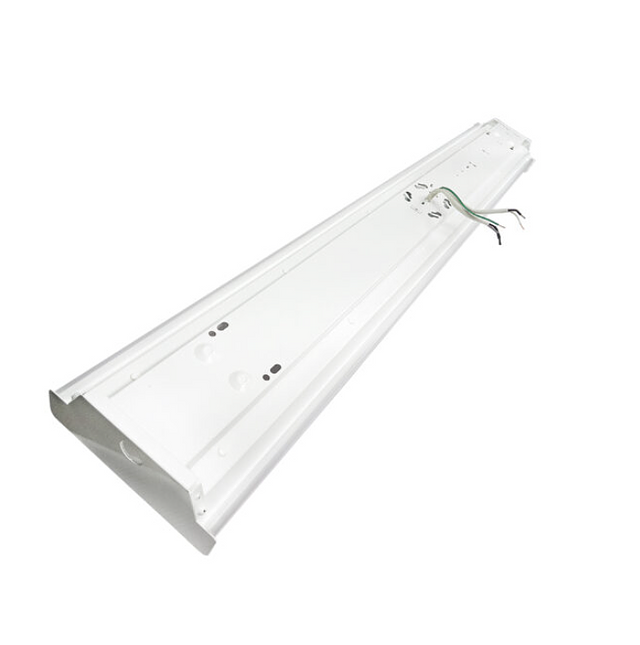

The LITELUMEā¢ LED Wrap Around Premium (LL-WAPR) is a ceiling mounted luminaire designed for retrofit or new construction. This fixture adopts the latest in optical and LED technology providing an evenly pleasant illuminance. Featuring 3 level lumen output and 3 color adjustable CCT, allowing for customized energy savings and comfortability. High Power factor .90 and low THD.
Resources
Premium Sheet iron design
Premium high efficiency LED Driver 90% EfficiencyĀ
80 CRI SEOUL LED's
PF >0.98
80 CRI SEOUL LED's
PF >0.98
QuickShip Ordering Information
LL-WAPR-[30][35][40]-3CCT-UNV
Package:
Package Sizeļ¼49x13x8 inch
Weight: 32 LBS (4PCSļ¼
Pallet size: 42x48x77 inch
Qty: 96 pcs/24 ctn
Total Weight: 810 LBS
LL-WAPR-[30][35][40]-3CCT-UNV
Package:
Package Sizeļ¼49x13x8 inch
Weight: 32 LBS (4PCSļ¼
Pallet size: 42x48x77 inch
Qty: 96 pcs/24 ctn
Total Weight: 810 LBS
Lumens
- 4110 Lm
- 4690 Lm
- 5240 Lm
Watts
- 30 w
- 35 w
- 40 w
Beam Angle
- 100
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 3500K
- 4000K
- 5000K
Color / Finish
- White
Controls Options
- Motion Sensor
Dimming Protocol
- 0-10 V
Dimming Range
- 10%
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Emergency Options
- Integral EM Battery
Ratings & Compliance
- DLC
- DLC Premium
- Damp
Shape
- Rectangular
Special Programs
- Quick Ship
Voltage
- 120-277 V
- UNV
Warranty
- 10 yr
