LL-CVT (G2)
LL-CVTEC-1X4.jpegLL-CVT (G2)

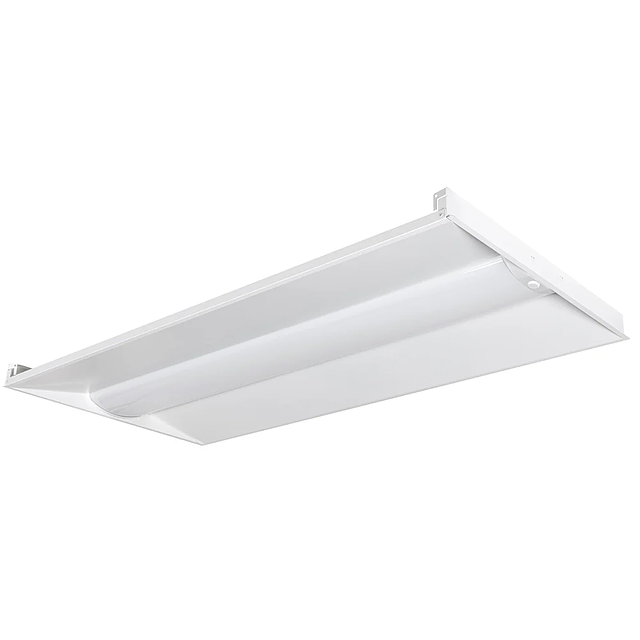

LED Center Volumetric Troffer Generation 2
The LITELUMEā¢ LED Center Volumetric Troffer (LL-CVT) is a recessed luminaire designed for remodel or new construction. This architectural fixture adopts the latest in optical and LED technology providing an evenly pleasant volumetric illuminance. Featuring 4 level lumen output and 5 color adjustable CCT, allowing for customized energy savings and comfortability. High Power factor .90 and low THD. Controls Ready.
Resources
QuickShip Ordering Information
LL-CVT-14-4L-UNV-SCT-SP
LL-CVT-22-4L-UNV-SCT-SP
LL-CVT-24-6L-UNV-SCT-SP
Packageļ¼LL-CVT-24-6L-UNV-SCT-SP
Package Size: 49x25x5 inch
Weight: 24 LBS (2 PCS)
Pallet size:Ā 42x48x80 inch
Qtyļ¼48 PCS / 24 CTN
Total Weight: 610 lbs
Packageļ¼LL-CVT-22-4L-UNV-SCT-SP
Package Size: 25x25x5 inch
Weight: 14.1 LBS (2 PCS)
LL-CVT-22-4L-UNV-SCT-SP
LL-CVT-24-6L-UNV-SCT-SP
Packageļ¼LL-CVT-24-6L-UNV-SCT-SP
Package Size: 49x25x5 inch
Weight: 24 LBS (2 PCS)
Pallet size:Ā 42x48x80 inch
Qtyļ¼48 PCS / 24 CTN
Total Weight: 610 lbs
Packageļ¼LL-CVT-22-4L-UNV-SCT-SP
Package Size: 25x25x5 inch
Weight: 14.1 LBS (2 PCS)
Pallet size: 42x48x80 inch
Qtyļ¼96 pcs /48 ctn
Total Weight: 710 LBS
Packageļ¼LL-CVT-14-4L-UNV-SCT-SP
Qtyļ¼96 pcs /48 ctn
Total Weight: 710 LBS
Packageļ¼LL-CVT-14-4L-UNV-SCT-SP
Package Size: 49x13x5 inch
Weight: 16.1 LBS (2 PCS)
Ā
Weight: 16.1 LBS (2 PCS)
Ā
Lumens
- 1896
- 1979
- 2363
- 2452
- 2752
- 2844
- 3390
- 3702
- 3845
- 4629
- 5375
- 6442
Watts
- 14
- 17
- 20
- 28
- 34
- 41
Size
- 1x4
- 2x2
- 2x4
CRI
- 80
CCT
- Field Selectable CCT
- 3000K
- 3500K
- 4000K
- 5000K
- 6500K
Color / Finish
- White
Dimming Protocol
- 0-10 V
Lamp Life
- 100000
Lamp Source
- LED
Listings
- UL
Ratings & Compliance
- DLC
- Damp
Special Programs
- Quick Ship
Voltage
- 120-277 V
Warranty
- 10 yr
