LL-JJE
Jelly Jar Elite

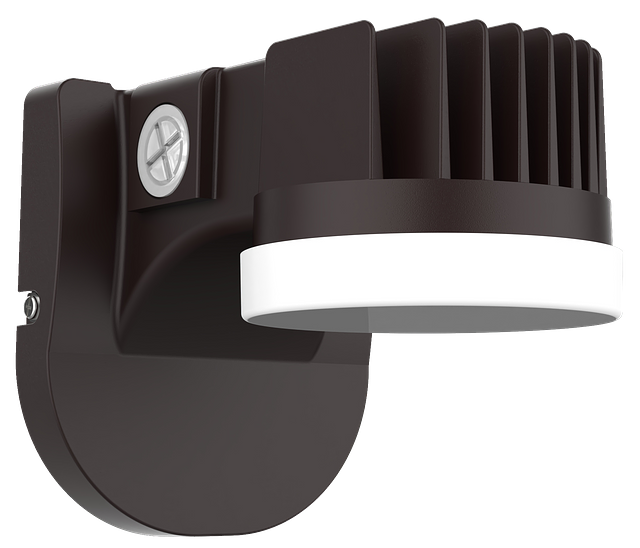

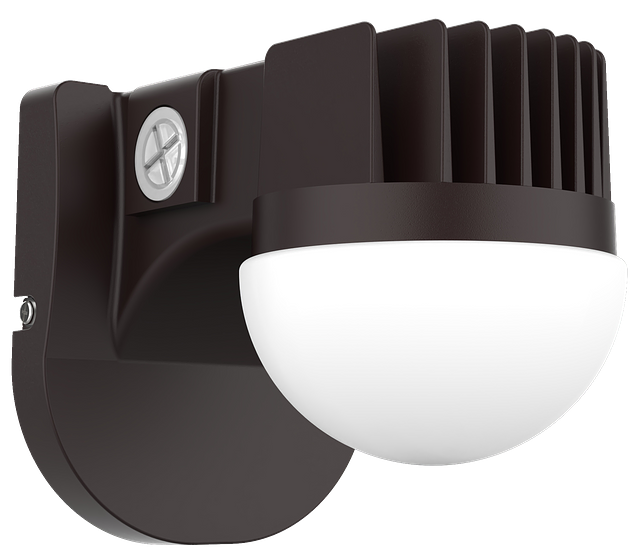

The LITELUME™ Jelly Jar Elite (LL–JJE) is an aesthetically pleasing specification grade wall mount fixture designed for new construction or retrofit to replace older style jelly jars, porch style and wall mounted luminaires. Featuring a die-cast aluminum housing with a frosted impact resistant PC lens for long-lasting durability. Available in 3 styles, dome, cylinder or flat lens. Selectable color temperature and selectable power.
Applications: Office buildings, condos, apartments, town homes, storage facilities, general homes and a broad spectrum of overall multi-family, service, residential and industrial applications.
Resources
Die-cast Aluminum
Protective powder Coat
Impact Resistant polycarbonate Lens
Protective powder Coat
Impact Resistant polycarbonate Lens
Premium Driver
PF .90
CRI 80
<20%
0-10v Dimming
Field Selectable Lumens 1,350 to 2,800 lm
Field Selectable CCT
PF .90
CRI 80
<20%
0-10v Dimming
Field Selectable Lumens 1,350 to 2,800 lm
Field Selectable CCT
QuickShip Ordering Information
LL-JJE-DL-3L-UNV-SCT-SP-BZ-PC
LL-JJE-CL-3L-UNV-SCT-SP-BZ-PC
LL-JJE-FL-3L-UNV-SCT-SP-BZ-PC
LED Jelly Jar lights
LL-JJE-DL-3L-UNV-SCT-SP-BZ-PC
LL-JJE-CL-3L-UNV-SCT-SP-BZ-PC
LL-JJE-FL-3L-UNV-SCT-SP-BZ-PC
LED Jelly Jar lights
Lumens
- 1350 Lm
- 1370 Lm
- 1400 Lm
- 2025 Lm
- 2055 Lm
- 2100 Lm
- 2700 Lm
- 2740 Lm
- 2800 Lm
Watts
- 10 w
- 15 w
- 20 w
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Bronze
Dimming Protocol
- 0-10 V
Lamp Life
- 70000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
Mounting
- Wall
Ratings & Compliance
- Wet
Voltage
- 120-277 V
Warranty
- 10 yr
