LL-HDDL
LL-HDDL-MG.jpgLL-HDDL

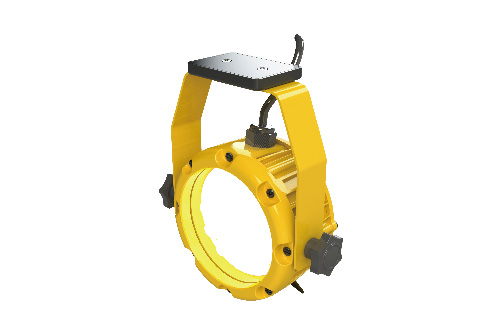

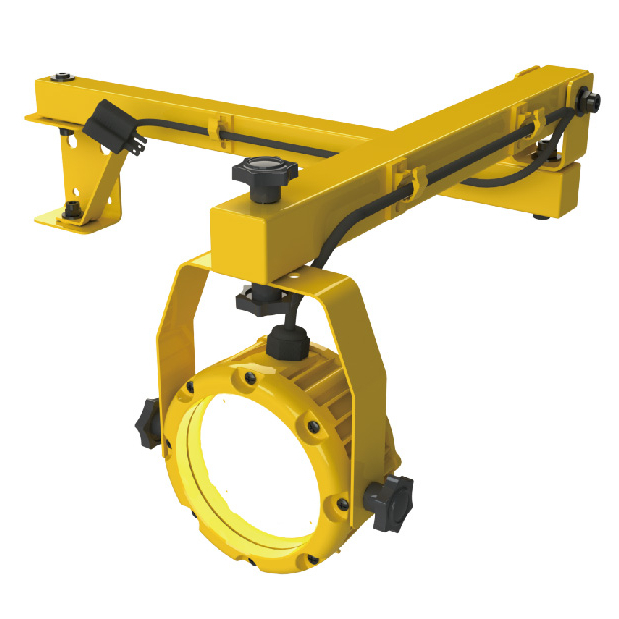

LED Heavy Duty Dock Light
The LITELUME™ LED Heavy Duty Dock Light ( LL-HDDL ) is a high performance robust LED solution designed with versatility. Rugged, die-cast aluminum housing with UV resistant marine grade powder coat finish and a Premium LED driver with High Performance LED's.
Applications include waterfront, marinas, docking, commercial and industrial corridors, loading areas and general work zones
Applications include waterfront, marinas, docking, commercial and industrial corridors, loading areas and general work zones
Resources
Heavy Duty Die cast Aluminum
High Impact Polycarbonate Lens
Marine Grade Powder Coat
360 Degree Horizontal Rotation
On/Off Switch
High Impact Polycarbonate Lens
Marine Grade Powder Coat
360 Degree Horizontal Rotation
On/Off Switch
Premium LED's
Ultra efficient driver
PF .98
CRI 76
THD <20%
NEMA Type 5 Distribution
Ultra efficient driver
PF .98
CRI 76
THD <20%
NEMA Type 5 Distribution
QuickShip Ordering Information
LL-HDDL-3L-UNV-50-Y-MG
LL-HDDL-3L-UNV-50-Y-AA
LL-HDDL-3L-UNV-50-Y-AA
Lumens
- 3400 Lm
Watts
- 28 w
Availability
- In Stock
- Quick Ship
CRI
- 76 CRI
CCT
- 5000K
Color / Finish
- Yellow
Distribution
- Medium Flood
Efficacy
- 122 lm/w
Lamp Life
- 68000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Polycarbonate
Mounting
- L-Bracket
- Magnetic Bar
Ratings & Compliance
- Exterior
- IP65
- Marine
- Wet
Shape
- Round
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
Warranty
- 10 yr
NEMA Beam
- 5x5
