LL-WAE

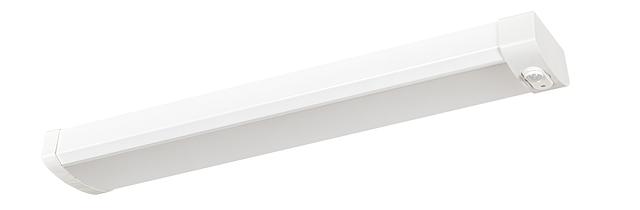

ccabd7f4docfdd7babce32557f0cec04.JPGLL-WAE
LED Wrap Around Economy
The LITELUMEā¢ LED Wrap Around Economy (LL-WAE) is a surface mounted luminaire designed for retrofit or new construction. Made of high quality ABS material, fully gasketed providing a dust-free and moisture-free enclosure. Featuring the latest in optical and LED technology providing an evenly pleasant illuminance. Featuring field adjustable 4 level lumen output and 5 color selectable CCT, allowing for customized energy savings and comfortability. Perfect for stairwells and many other low traffic applications.
Applications include offices, hallways, conference rooms, bathrooms, food processing plants, meat lockers, beverage coolers, and parking structures, and stairwells.
Applications include offices, hallways, conference rooms, bathrooms, food processing plants, meat lockers, beverage coolers, and parking structures, and stairwells.
Resources
Premium quality ABS, high ignition point
PMMA Acrylic Lens
Sensor ready field installable
Damp rated
PMMA Acrylic Lens
Sensor ready field installable
Damp rated
Premium high efficiency LED Driver 88% EfficiencyĀ
SEOUL LED's
CRI 80Ā
PF >0.90
0-10v 12Vdc auxiliary dimming
Operating temperature -40ĀŗF ~ 104ĀŗF
LIFESPAN (L70) 100,000 Hours
SEOUL LED's
CRI 80Ā
PF >0.90
0-10v 12Vdc auxiliary dimming
Operating temperature -40ĀŗF ~ 104ĀŗF
LIFESPAN (L70) 100,000 Hours
QuickShip Ordering Information
LL-WAE-2-3L-UNV-SCT-SP-WH
LL-WAE-4-3L-UNV-SCT-SP-WH
Package: LL-WAE-2-3L-UNV-SCT-SP-WH
Package Sizeļ¼26x11x7 inch
Weight: 13 LBS (4 PCSļ¼
Package Sizeļ¼26x6x3 inch
Weight: 3 LBS (1 PCSļ¼
Package: LL-WAE-4-3L-UNV-SCT-SP-WH
Package Sizeļ¼50x11x7 inch
Weight: 22 LBS (4 PCSļ¼
Package Sizeļ¼49x6x3 inch
Weight: 5 LBS (1 PCSļ¼
Pallet size: 42x48x65 inch
Qty: 176 PCS / 44 ctn
Total Weight: 968 lbs
LED Wrap Fixture
LED Stairwell Luminaire
LL-WAE-2-3L-UNV-SCT-SP-WH
LL-WAE-4-3L-UNV-SCT-SP-WH
Package: LL-WAE-2-3L-UNV-SCT-SP-WH
Package Sizeļ¼26x11x7 inch
Weight: 13 LBS (4 PCSļ¼
Package Sizeļ¼26x6x3 inch
Weight: 3 LBS (1 PCSļ¼
Package: LL-WAE-4-3L-UNV-SCT-SP-WH
Package Sizeļ¼50x11x7 inch
Weight: 22 LBS (4 PCSļ¼
Package Sizeļ¼49x6x3 inch
Weight: 5 LBS (1 PCSļ¼
Pallet size: 42x48x65 inch
Qty: 176 PCS / 44 ctn
Total Weight: 968 lbs
LED Wrap Fixture
LED Stairwell Luminaire
Weight
- 3
- 5
Availability
- In Stock
- Quick Ship
Beam Angle
- 100
CRI
- 80
CCT
- Field Selectable CCT
- 3000K
- 3500K
- 4000K
- 5000K
- 6500K
Color / Finish
- White
Controls Options
- Bi-level Dimming
- Bluetooth
- Daylight Harvesting
- Daylight Sensor
- Dimmable
- Luminaire-Level Lighting Controls
- Motion Sensor
- Network Wireless Control
- Occupancy Sensor
- PIR Sensor
- Passive Infrared
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
Dimming Range
- 10-100%
Distribution
- Wide
Efficacy
- 120
Lamp Life
- 100000
Lamp Source
- LED
Listings
- UL
Materials
- ABS
- Acrylic
Mounting
- Ceiling
- Surface
- Wall
Emergency Options
- Emergency Battery Backup
Ratings & Compliance
- Damp
- Interior
Shape
- Linear
Voltage
- 120-277 V
Warranty
- 10 yr
