LL-VTHE

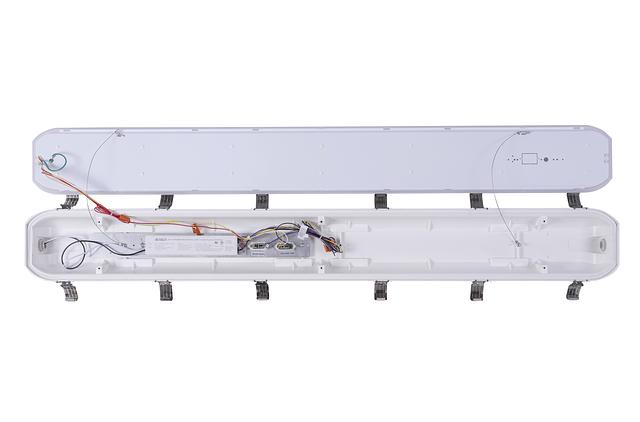

LL-VTHE-OPEN.jpgLL-VTHE
LED Vaportite Harsh Environment
The LITELUME™ Vaportite Harsh Environment (LL-VTHE) series luminaire features SUS304 Stainless Steel latches with a heavy duty IK07 impact rated fiberglass housing, acrylic lens and comes in 4’ length. IP69K rated. Chemical resistant, tested against Hydrochloric Acid (HCI) & Sodium Hydroxide ( NaOH ). Long Life Performance L70 @ 173,00 Hours.
Typical lighting applications include Industrial Facilities, Painting Facilities, Auto Service Facilities, Food Processing, Car Washes, Coolers & Freezers, Food & Beverage Preparation, Greenhouse, Pharmaceutical, Healthcare, Education, Industrial, Parking Garage, Natatorium, and any other High Chemical, Demanding, and Wash Down Environments. Mounting heights of 18 to 30 feet can be used based on light level and uniformity requirements.
Typical lighting applications include Industrial Facilities, Painting Facilities, Auto Service Facilities, Food Processing, Car Washes, Coolers & Freezers, Food & Beverage Preparation, Greenhouse, Pharmaceutical, Healthcare, Education, Industrial, Parking Garage, Natatorium, and any other High Chemical, Demanding, and Wash Down Environments. Mounting heights of 18 to 30 feet can be used based on light level and uniformity requirements.
Resources
White heavy duty IK07 impact rated fiberglass housing
SUS304 Stainless Steel latches
Acrylic lens
IK07
IP69K
NSF
SUS304 Stainless Steel latches
Acrylic lens
IK07
IP69K
NSF
Surface mount brackets included.
Optional cable mount kit provides luminaire suspension.
Premium LED's
Ultra efficient driver
High Efficacy up to 165 lm/W
Field Selectable Lumen Package 9,723 to 13,855 lm
Field Selectable CCT 3500K, 4000K, 5000K
Ultra efficient driver
High Efficacy up to 165 lm/W
Field Selectable Lumen Package 9,723 to 13,855 lm
Field Selectable CCT 3500K, 4000K, 5000K
Operating temperature (ambient): -40°C to 40°C (-40°F to 104°F).
Universal 120-277V AC voltage (50-60Hz).
0-10VDC dimming.
Input transient surge protection = 4kV.
Power Factor > 0.90.
Total Harmonic Distortion < 20%.
CRI 80
THD <20%
CRI 80
THD <20%
Long-life LEDs provide 173,000 hours of operation with at least 70% of initial lumen output (L70), and 52,000 hours with at least 90% of initial lumen output (L90).**
LED color maintenance < -0.0009 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation
*Factory set to 4000K CCT & highest power setting.
**L70 and L90 are IES TM-21-11 calculated hours.
cETLus listed for wet locations.
Complies with FCC Part 15, Class A.
IP69K rated for ingress protection.
IK07 rated for impact protection.
QuickShip Ordering Information
LL-VTHE-14L-UNV-SCT-SP-WH
Linear LED Vaportite
Chemical Resistant LED Vaportite
Availability
- In Stock
- Quick Ship
CRI
- 80
CCT
- Field Selectable CCT
- 3500K
- 4000K
- 5000K
Color / Finish
- White
Controls Options
- Bi-level Dimming
- Daylight Harvesting
- Daylight Occupancy Sensor
- Daylight Sensor
- Luminaire-Level Lighting Controls
- Motion Sensor
- Network Wireless Control
- Occupancy Sensor
Dimensions
- L: 51.18 In. W: 6.54 In. H: 4.5 In.
Dimming Protocol
- 0-10 V
Efficacy
- 165
Lamp Life
- 173000
Lamp Source
- LED
Listings
- cETLus
Materials
- Acrylic
- Fiberglass
Mounting
- Ceiling
- Surface
- Surface / Canopy
- Suspended
- Wall
Ratings & Compliance
- Exterior
- Harsh Environments
- IK07
- IP69K
- Industrial
- Interior
- NSF
- Wet
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
Warranty
- 10 yr
