LL-WPCTR
5.pngLL-WPCTR

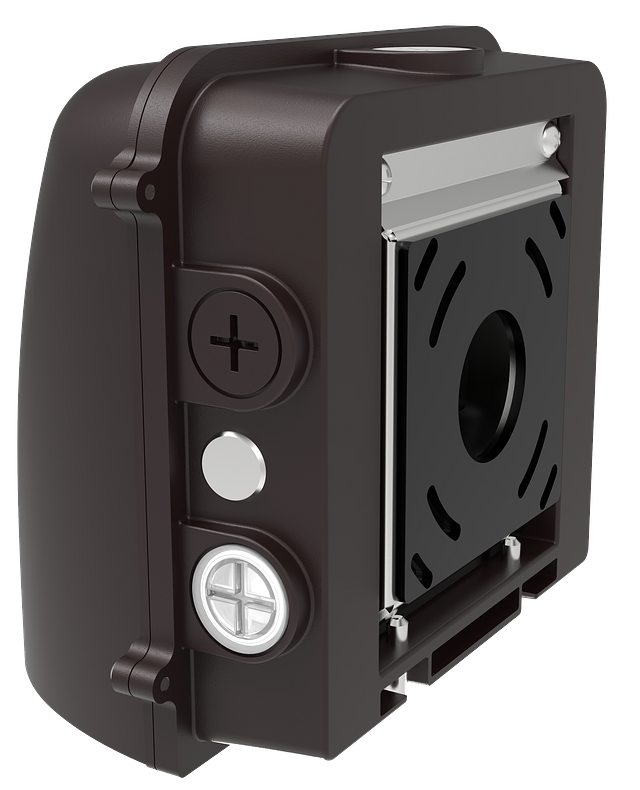

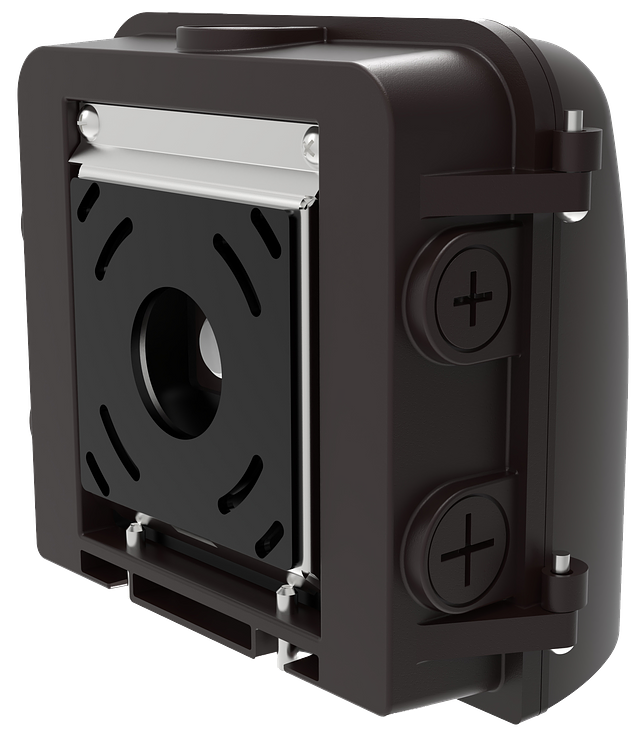

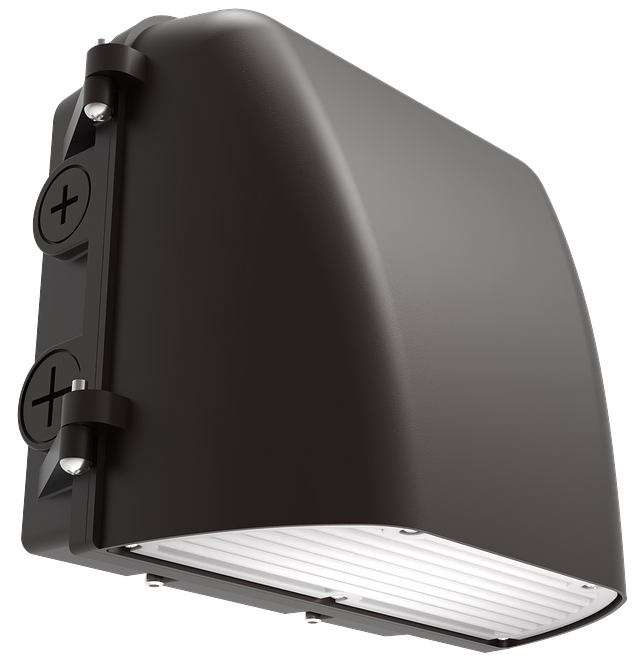

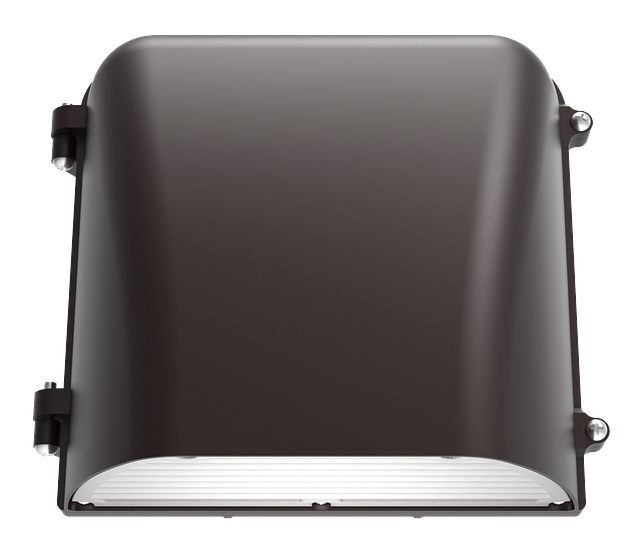

LED Wallpack Contour
The LITELUME™ LED Wallpack Contour ( LL-WPCTR ) Specification grade luminaire incorporates an aesthetically pleasing appearance with elegant edges and modern symmetry. Die-cast aluminum construction and shatter-resistant high impact polycarbonate acrylic optical lens with UV stabilizers. Applications: Entryways, Tunnels, and Walkways, Exterior Wall Lighting, Building Entrances, Pedestrian Walkways, Multi-use Facilities, Industrial Facilities, Parking Lots, Storage Facilities, Education, Multi-Family, Retail, Office.
Resources
Die-cast Aluminum
Protective powder Coat
Shatter Resistant Polycarbonate Acrylic Lens
Aesthetically Pleasing Appearance
Rated for inverted use in wet location
Protective powder Coat
Shatter Resistant Polycarbonate Acrylic Lens
Aesthetically Pleasing Appearance
Rated for inverted use in wet location
Premium LED's
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard 0-10v Continuous Dimming
Field Selectable Lumens 2,914 to 5,828 lm
Field Selectable CCT
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard 0-10v Continuous Dimming
Field Selectable Lumens 2,914 to 5,828 lm
Field Selectable CCT
QuickShip Ordering Information
LL-WPCTR-6L-UNV-SCT-SP-BZ-PC
LED Wall Pack Lights
LL-WPCTR-6L-UNV-SCT-SP-BZ-PC
LED Wall Pack Lights
Lumens
- 2914 Lm
- 4371 Lm
- 5828 Lm
Watts
- 20 w
- 30 w
- 40 w
CRI
- 80 CRI
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Custom
- Gray
- White
Controls Options
- Photocell
Dimming Protocol
- 0-10 V
Distribution
- Type 5
Efficacy
- 146 lm/w
Lamp Life
- 70000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
Mounting
- Wall
Ratings & Compliance
- IP66
- Wet
Special Programs
- Quick Ship
Voltage
- 120-277 V
Warranty
- 10 yr
