LL-DPP

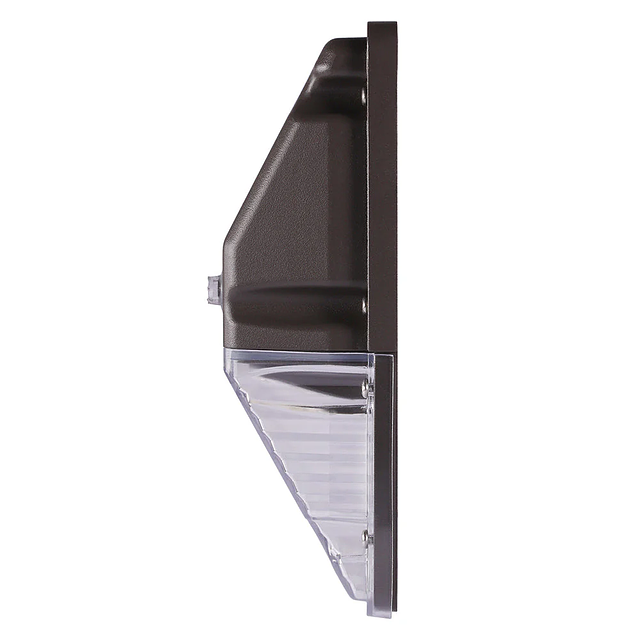

LL-DPP-SIDE.jpegLL-DPP

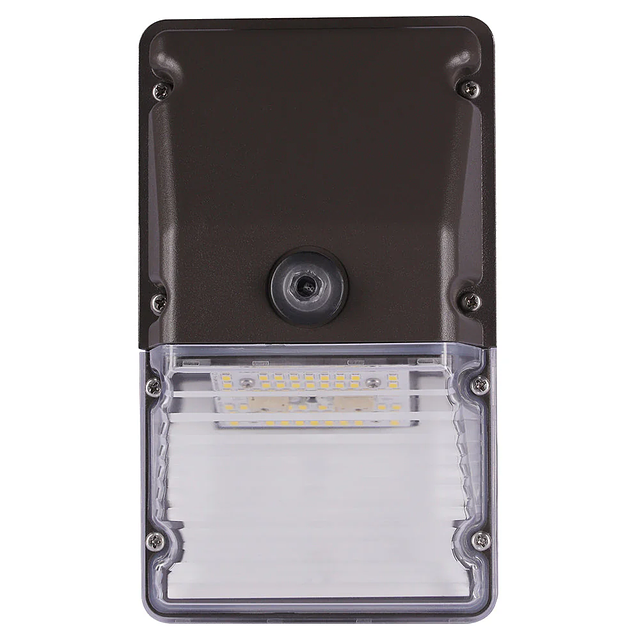

LED Door Pack Premium
The LITELUME™ LED Door Pack Premium (LL-DPP) features a heavy-duty diecast construction and polycarbonate optical lens with UV stabilizers. Available in 2 low wattages and selectable CCT. Compact in design and symmetry making this luminaire ideal for Entryways, Tunnels, and Walkways, Exterior Wall Lighting, Building Entrances, Pedestrian Walkways, Multi-use Facilities, Industrial Facilities, Parking Lots, Storage Facilities, Education, Multi-Family, Retail, Office buildings, apartments, town homes, man doors and a broad spectrum of overall multi-family, service and industrial applications
Resources
High Impact Die-cast Aluminum
Protective powder Coat
Heat & Impact resistant Clear PC Lens
Compact Robust Design
Protective powder Coat
Heat & Impact resistant Clear PC Lens
Compact Robust Design
Premium LED's
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard Dimming 0-10V, 10-100%
2,246 to 3,556 lm
Field Selectable CCT
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard Dimming 0-10V, 10-100%
2,246 to 3,556 lm
Field Selectable CCT
QuickShip Ordering Information
LL-DPP-15-3CCT-UNV-BZ-PC
LL-DPP-25-3CCT-UNV-BZ-PC
LED Door Pack
LED Emergency Light
LED Security Light
LED Wall Pack Lights
Field Adjustable Wall Pack
LL-DPP-15-3CCT-UNV-BZ-PC
LL-DPP-25-3CCT-UNV-BZ-PC
LED Door Pack
LED Emergency Light
LED Security Light
LED Wall Pack Lights
Field Adjustable Wall Pack
Lumens
- 2246 Lm
- 3556 Lm
Watts
- 15 w
- 25 w
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Bronze
Dimming Protocol
- 0-10 V
Dimming Range
- 10%
Efficacy
- 150 lm/w
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Polycarbonate
Mounting
- Wall
Ratings & Compliance
- Exterior
- IP65
- Wet
Special Programs
- Quick Ship
Voltage
- 120-277 V
Warranty
- 10 yr
