LED Post Top Round Premium Large

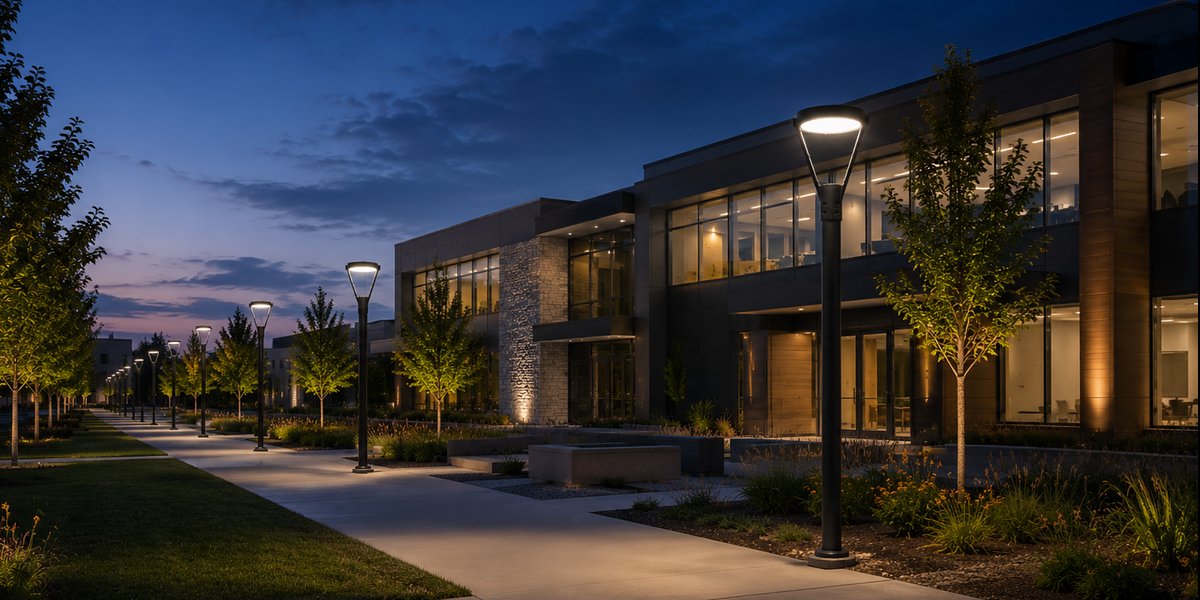

The LITELUME™ Post Top Round Premium Large (LL-PTRPL) combines style and performance with its seamless appearance. Featuring a die-cast aluminum housing with outstanding corrosion protection. Round and smooth in design with soft light. Suitable for mounting heights of 8-25’ makes this an excellent choice for pathway, walkway, municipality and general lighting applications.
Resources
Die-cast Aluminum
Protective Powder Coat
UV Polycarbonate lens
Protective Powder Coat
UV Polycarbonate lens
3G vibration rated
IP 65 Rated
Tenon fits 2 3/8” - 3” standard OD
IP 65 Rated
Tenon fits 2 3/8” - 3” standard OD
Premium LED's
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v dimming 100% - 10%
Photocell with On/Off Dip-switch Included
Surge Protection 10Kv
5,512 to 19,500 lm
High Efficacy 123 LPW
Type 5 Distribution
Operating Temperature -40F - 140F
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v dimming 100% - 10%
Photocell with On/Off Dip-switch Included
Surge Protection 10Kv
5,512 to 19,500 lm
High Efficacy 123 LPW
Type 5 Distribution
Operating Temperature -40F - 140F
QuickShip Ordering Information
LL-PTRPL-10L-UNV-SCT-SP-T5-BZ-PC
LL-PTRPL-19L-UNV-SCT-SP-T5-BZ-PC
LL-PTRPL-10L-UNV-SCT-SP-T5-BK-PC
LL-PTRPL-19L-UNV-SCT-SP-T5-BK-PC
LL-PTRPL-10L-UNV-SCT-SP-T5-BZ-PC
LL-PTRPL-19L-UNV-SCT-SP-T5-BZ-PC
LL-PTRPL-10L-UNV-SCT-SP-T5-BK-PC
LL-PTRPL-19L-UNV-SCT-SP-T5-BK-PC
Lumens
- 5512 Lm
- 7350 Lm
- 9800 Lm
- 12200 Lm
- 15250 Lm
- 19500 Lm
Watts
- 45 w
- 60 w
- 80 w
- 100 w
- 125 w
- 160 w
Availability
- In Stock
- Quick Ship
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Custom
- Dark Green
- Gray
- White
Controls Options
- Occupancy Sensor
- Photocell
Dimensions
- H: 22.2 In. L: 17.3 In. W: 17.3 In.
Dimming Protocol
- 0-10 V
Distribution
- Type V
Efficacy
- 123 lm/w
Installation Type
- New Construction
- Retrofit & Remodel
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
- cULus
Materials
- Die-Cast Aluminum
- Polycarbonate
Ratings & Compliance
- Exterior
- IP65
- Wet
Shape
- Round
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
- 480 V
Warranty
- 10 yr
