LL-RCL

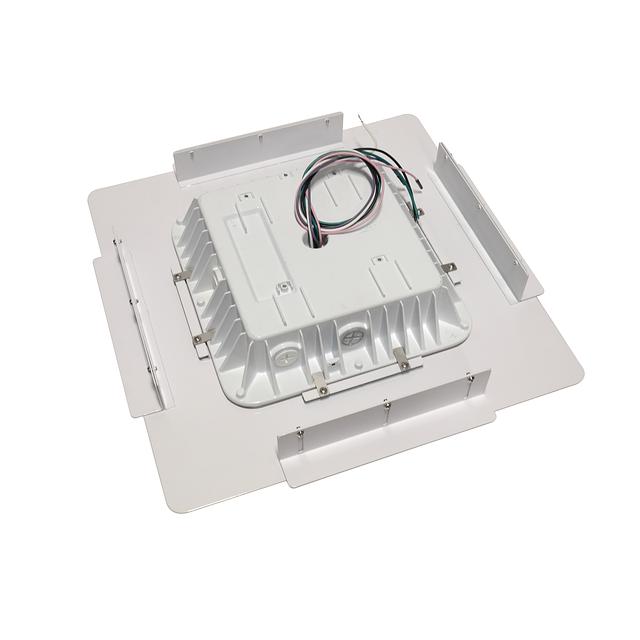

LL-RCL-BACK.jpgLL-RCL
LED Recessed Canopy Luminaire
The LITELUME™ Recessed Canopy Luminaire (LL-RCL) is designed to replace HID lighting systems up to 250w MH or HPS. The low profile housing features a polycarbonate lens with low glare. Can be used to replace existing recessed canopy lights or used in new construction.
Typical applications include covered entryways and soffits in retail centers, schools and universities, office buildings and medical facilities. Mounting heights of 12 to 16 feet can be used based on light level and uniformity requirements.
Typical applications include covered entryways and soffits in retail centers, schools and universities, office buildings and medical facilities. Mounting heights of 12 to 16 feet can be used based on light level and uniformity requirements.
Resources
Premium Powder Coat
Die cast Aluminum
White Finish
Polycarbonate Lens
Die cast Aluminum
White Finish
Polycarbonate Lens
Premium LED's
Ultra efficient driver
PF .90
CRI 80
THD <20%
0-10V dimming driver standard 100% to 10%
Operating temperature -40°F to 122°F
Universal 120-277 AC voltage (50-60Hz) is standard
Input transient surge protection 6kV
Ultra efficient driver
PF .90
CRI 80
THD <20%
0-10V dimming driver standard 100% to 10%
Operating temperature -40°F to 122°F
Universal 120-277 AC voltage (50-60Hz) is standard
Input transient surge protection 6kV
QuickShip Ordering Information
LL-RCL-11L-UNV-50-WH
LED Recessed Canopy Lights
LL-RCL-11L-UNV-50-WH
LED Recessed Canopy Lights
Lumens
- 10406 Lm
Watts
- 78 w
Weight
- 8 lbs
Availability
- In Stock
- Quick Ship
CRI
- 80 CRI
CCT
- 5000K
Color / Finish
- White
Dimensions
- H: 2.97 In. L: 16.79 In. W: 16.79 In.
Dimming Protocol
- 0-10 V
Distribution
- Type 5
Efficacy
- 132 lm/w
Lamp Life
- 167000 hrs
Lamp Source
- LED
Listings
- UL
- cULus
Materials
- Die-Cast Aluminum
- Polycarbonate
Ratings & Compliance
- Exterior
- FCC
- IP65
- Wet
Shape
- Square
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
- UNV
Warranty
- 10 yr
