LL-PTRPS
LL-PTRPS.3.jpgLL-PTRPS

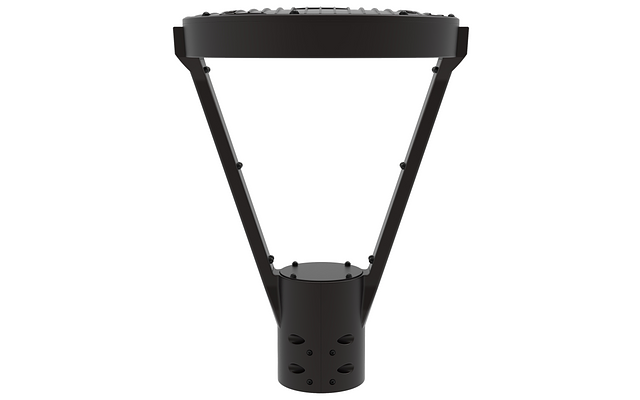

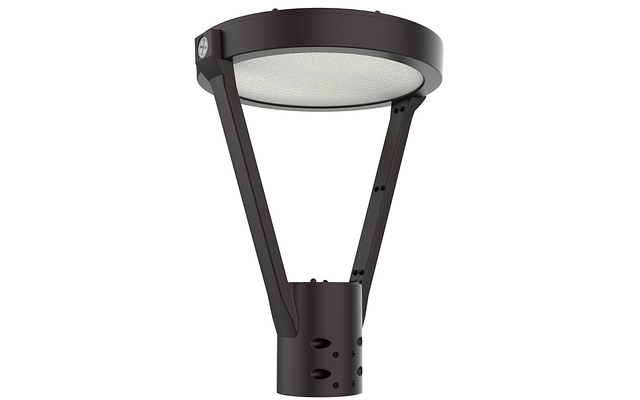

LED Post Top Round Premium Small

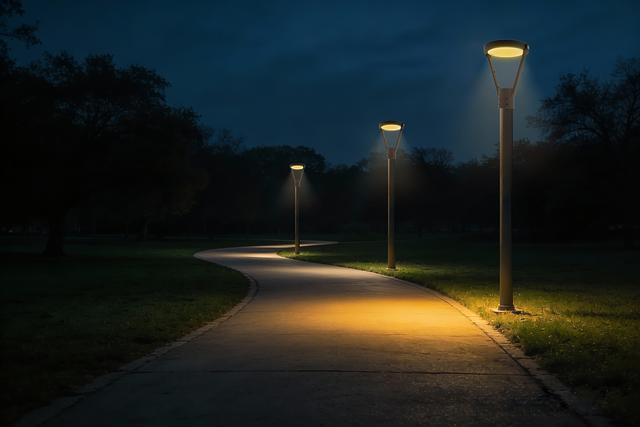

The LITELUME™ Post Top Round Premium Small (LL-PTRPS) combines style and performance with its seamless appearance. Featuring a die-cast aluminum housing with outstanding corrosion protection. Round and smooth in design with soft light. Suitable for mounting heights of 8-20’ makes this an excellent choice for pathway, walkway, municipality and general lighting applications.
Resources
Die-cast Aluminum
Protective Powder Coat
UV Polycarbonate lens
Protective Powder Coat
UV Polycarbonate lens
3G vibration rated
IP 65 Rated
Tenon fits 2 3/8” - 3” standard OD
IP 65 Rated
Tenon fits 2 3/8” - 3” standard OD
Premium LED's
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v dimming 100% - 10%
Photocell with On/Off Dip-switch Included
2,750 - 8,250 lm
High Efficacy 138 LPW
Type 5 Distribution
Operating Temperature -40F - 140F
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard: 0-10v dimming 100% - 10%
Photocell with On/Off Dip-switch Included
2,750 - 8,250 lm
High Efficacy 138 LPW
Type 5 Distribution
Operating Temperature -40F - 140F
QuickShip Ordering Information
LL-PTRPS-8L-UNV-SCT-SP-BZ-PC
LL-PTRPS-8L-UNV-SCT-SP-BK-PC
LL-PTRPS-8L-UNV-SCT-SP-BZ-PC
LL-PTRPS-8L-UNV-SCT-SP-BK-PC
Lumens
- 2750 Lm
- 5500 Lm
- 8250 Lm
Watts
- 20 w
- 40 w
- 60 w
Availability
- In Stock
- Quick Ship
CRI
- 80 CRI
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Custom
- Dark Green
- Gray
- White
Controls Options
- Occupancy Sensor
- Photocell
Dimensions
- H: 19.8 In. L: 14.17 In. W: 15.16 In.
Dimming Protocol
- 0-10 V
Distribution
- Type V
Efficacy
- 138 lm/w
Installation Type
- New Construction
- Retrofit & Remodel
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
- cULus
Materials
- Die-Cast Aluminum
- Polycarbonate
Ratings & Compliance
- Exterior
- IP65
- Wet
Shape
- Round
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
- 480 V
