LL-CYLE
LL-CYLE.6.jpgLL-CYLE

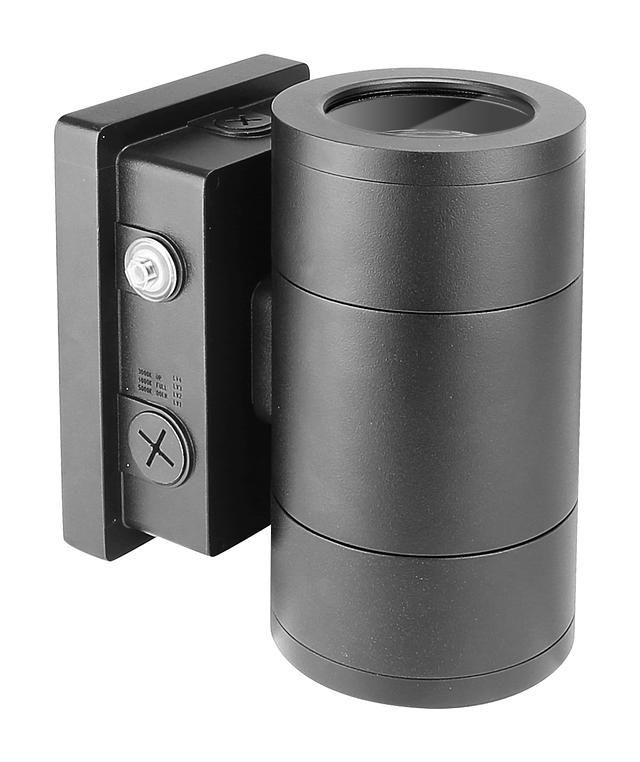

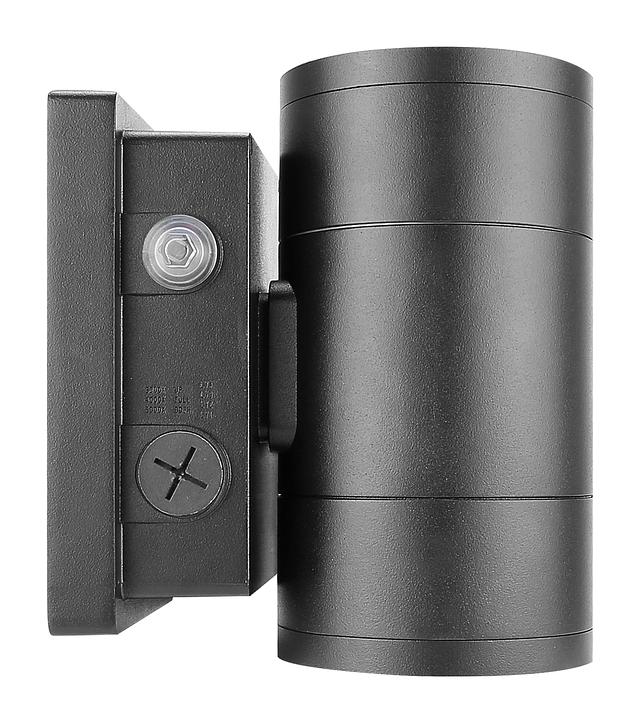

LED Cylinder Wall Sconce Elite
The LITELUME™ LED Cylinder Wall Sconce Elite (LL-CYLE) is a specification grade field adjustable Uplight/Downlight Wall Mounted luminaire designed for retrofit or new construction. A one size fits all 4.6” diameter. Includes a photocell with on/off dip switch. Choose between uplight, downlight or up/down combination. Featuring 3 color adjustable CCT, and 4 different field selectable lumen selections, allowing for customized energy savings and comfortability.
Applications: Retail Malls, Restaurants, Auto Dealerships, Hospitals, Shopping Centers, Entryways, Tunnels, and Walkways, Exterior Wall Lighting, Building Entrances, Pedestrian Walkways, Multi-use Facilities, Industrial Facilities, Parking Lots, Storage Facilities, Education, Multi-Family, Retail, Office, General Hospitality.
Applications: Retail Malls, Restaurants, Auto Dealerships, Hospitals, Shopping Centers, Entryways, Tunnels, and Walkways, Exterior Wall Lighting, Building Entrances, Pedestrian Walkways, Multi-use Facilities, Industrial Facilities, Parking Lots, Storage Facilities, Education, Multi-Family, Retail, Office, General Hospitality.
Resources
Specification Grade
High Grade Die Cast Aluminum
Striking Architectural Appeal
Tempered Glass Lens

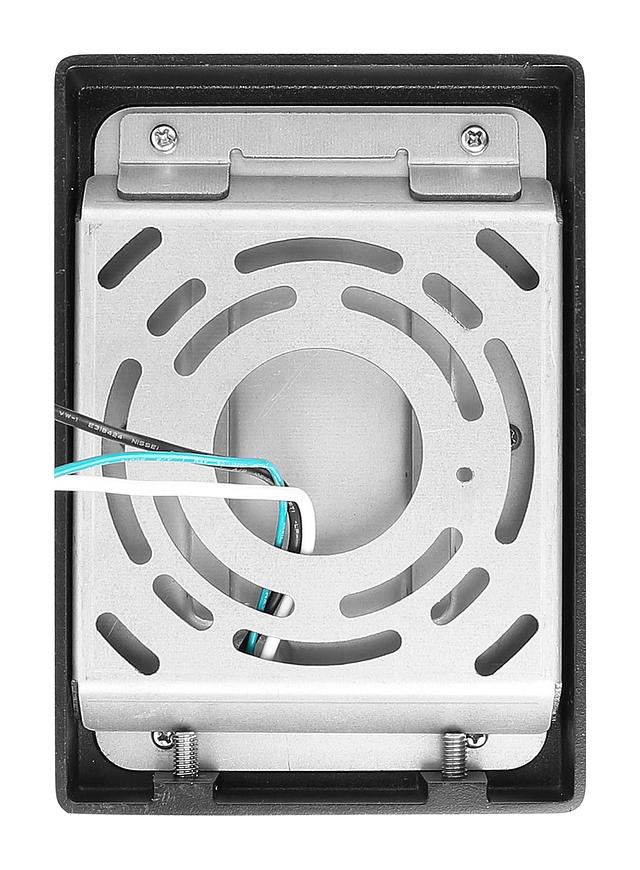

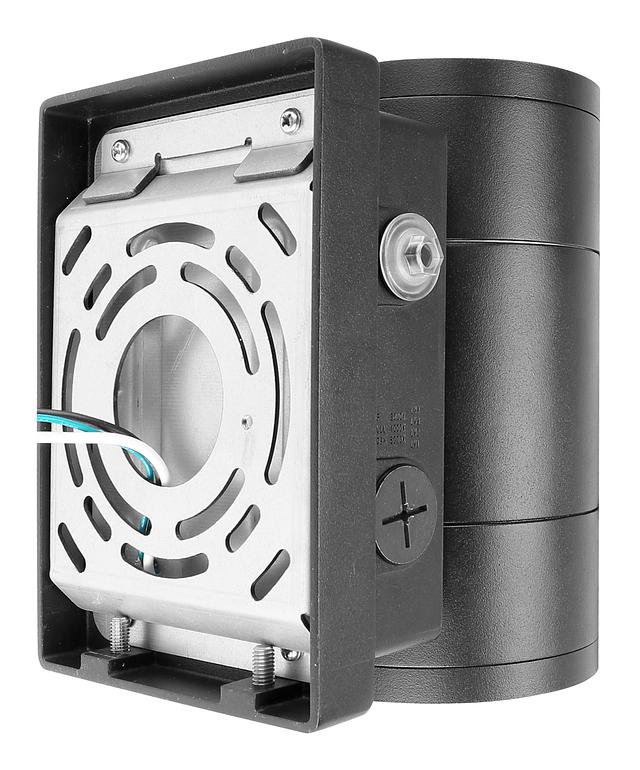

User Friendly Quick Mount Bracket
High Grade Die Cast Aluminum
Striking Architectural Appeal
Tempered Glass Lens
User Friendly Quick Mount Bracket

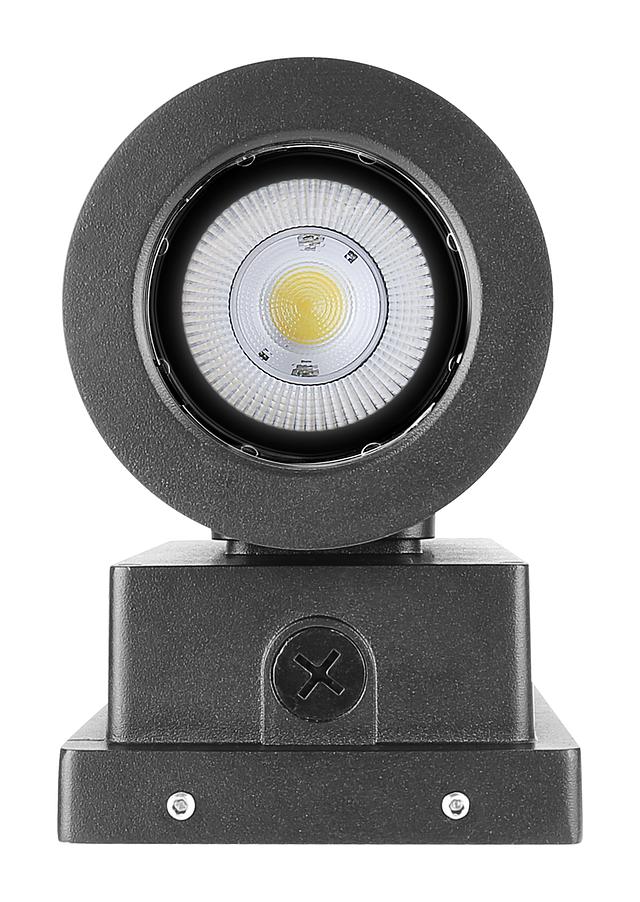

Premium New Generation Cob LED
Ultra efficient driver
PF .90
CRI 90
THD <15%
Standard 0-10v Dimming 10% - 100%
Field Selectable CCT
Field Selectable Lumens
Uplight, Downlight or Up & Down Combo Field Selectable
Operating Temperature -22F - 122F
70 Degree Beam
L70 rated lifetime of 60,000 Hours
Ultra efficient driver
PF .90
CRI 90
THD <15%
Standard 0-10v Dimming 10% - 100%
Field Selectable CCT
Field Selectable Lumens
Uplight, Downlight or Up & Down Combo Field Selectable
Operating Temperature -22F - 122F
70 Degree Beam
L70 rated lifetime of 60,000 Hours
QuickShip Ordering Information
LL-CYLE-3L-UNV-SCT-SP-SD-70-BK-PC
LL-CYLE-3L-UNV-SCT-SP-SD-70-BK-PC
Lumens
- 1600 Lm
- 2200 Lm
- 2930 Lm
- 3460 Lm
Watts
- 15 w
- 22 w
- 30 w
- 36 w
Availability
- In Stock
- Quick Ship
Beam Angle
- 70
CRI
- 90 CRI
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
Controls Options
- Photocell
Dimensions
- H: 7.5 In. L: 6.7 In. W: 4.6 In.
Dimming Protocol
- 0-10 V
Dimming Range
- 10%
Distribution
- Direct
- Indirect
- Indirect/Direct
Efficacy
- 107 lm/w
Lamp Life
- 60000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Glass
Ratings & Compliance
- Exterior
- IP65
- TAA
- Wet
Shape
- Cylinder
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
Warranty
- 10 yr
