LL-CYLP
LL-CYLP.1.jpgLL-CYLP

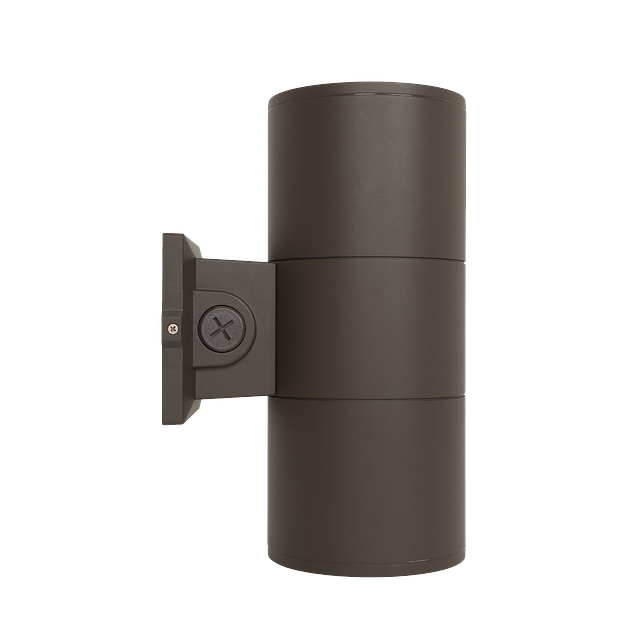

LED Cylinder Wall Sconce Premium
The LITELUME™ LED Cylinder Wall Sconce Premium (LL-CYLP) is a specification grade field adjustable Uplight/Downlight Wall Mounted luminaire designed for retrofit or new construction. Available in 3 different sized form factors. Includes a photocell with on/off dip switch. Choose between uplight, downlight or up/down combination. Featuring 3 color adjustable CCT, and 3 different field selectable lumen selections, allowing for customized energy savings and comfortability.
Applications: Retail Malls, Restaurants, Auto Dealerships, Hospitals, Shopping Centers, Entryways, Tunnels, and Walkways, Exterior Wall Lighting, Building Entrances, Pedestrian Walkways, Multi-use Facilities, Industrial Facilities, Parking Lots, Storage Facilities, Education, Multi-Family, Retail, Office, General Hospitality.
Applications: Retail Malls, Restaurants, Auto Dealerships, Hospitals, Shopping Centers, Entryways, Tunnels, and Walkways, Exterior Wall Lighting, Building Entrances, Pedestrian Walkways, Multi-use Facilities, Industrial Facilities, Parking Lots, Storage Facilities, Education, Multi-Family, Retail, Office, General Hospitality.
Resources
Specification Grade
High Grade Die Cast Aluminum
Striking Architectural Appeal
Heat Resistant Toughened Glass Lens
User Friendly Quick Mount Bracket
High Grade Die Cast Aluminum
Striking Architectural Appeal
Heat Resistant Toughened Glass Lens
User Friendly Quick Mount Bracket
Premium New Generation Cob LED
Ultra efficient driver
PF .90
CRI 90
THD <20%
Surge Protection 4kV
Standard 0-10v Dimming 10% - 100%
Field Selectable CCT
Field Selectable Lumens
Uplight, Downlight or Up & Down Combo Field Selectable
Operating Temperature -40F - 113F
35 Degree Beam
Rated Lifetime of 140,000 Hours
cULus listed for wet locations
Complies with FCC part 15, class B
IP65 rated for ingress protection
Ultra efficient driver
PF .90
CRI 90
THD <20%
Surge Protection 4kV
Standard 0-10v Dimming 10% - 100%
Field Selectable CCT
Field Selectable Lumens
Uplight, Downlight or Up & Down Combo Field Selectable
Operating Temperature -40F - 113F
35 Degree Beam
Rated Lifetime of 140,000 Hours
cULus listed for wet locations
Complies with FCC part 15, class B
IP65 rated for ingress protection
QuickShip Ordering Information
LL-CYLP-1L-UNV-SCT-SP-SD-35-BZ-PC
LL-CYLP-2L-UNV-SCT-SP-SD-35-BZ-PC
LL-CYLP-3L-UNV-SCT-SP-SD-35-BZ-PC
LL-CYLP-1L-UNV-SCT-SP-SD-35-BZ-PC
LL-CYLP-2L-UNV-SCT-SP-SD-35-BZ-PC
LL-CYLP-3L-UNV-SCT-SP-SD-35-BZ-PC
Lumens
- 600 Lm
- 700 Lm
- 900 Lm
- 1200 Lm
- 1700 Lm
- 2000 Lm
- 2700 Lm
- 3000 Lm
Watts
- 6 w
- 7 w
- 9 w
- 12 w
- 17 w
- 20 w
- 24 w
- 30 w
- 35 w
Weight
- 2 lbs
- 4 lbs
- 6 lbs
Availability
- In Stock
- Quick Ship
Beam Angle
- 35
CRI
- 90 CRI
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Bronze
Controls Options
- Photocell
Dimming Protocol
- 0-10 V
Dimming Range
- 10%
Distribution
- Direct
- Indirect
- Indirect/Direct
Efficacy
- 104 lm/w
Lamp Life
- 140000 hrs
Lamp Source
- LED
Listings
- UL
- cULus
Materials
- Die-Cast Aluminum
- Glass
Ratings & Compliance
- Exterior
- FCC
- IP65
- Wet
Shape
- Cylinder
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
Warranty
- 10 yr
