LL-FLE
LL-FLE-17L-22L-SF-4.jpgLL-FLE

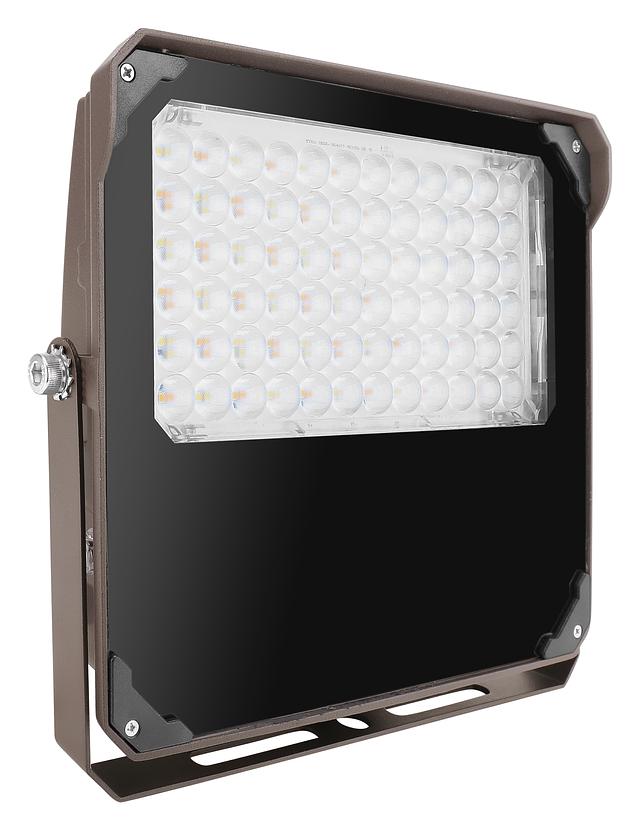

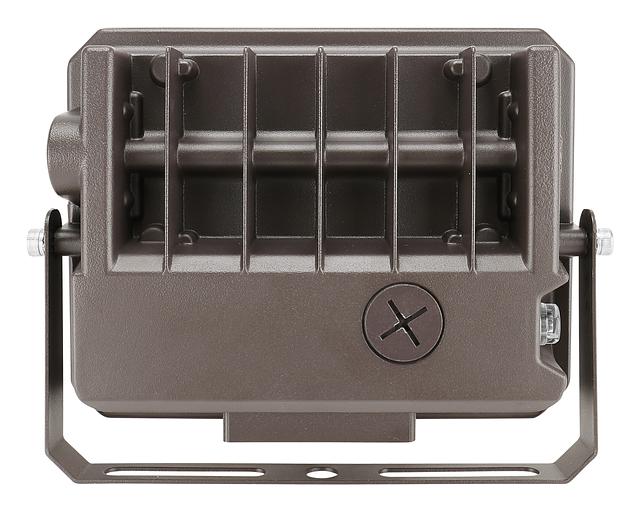

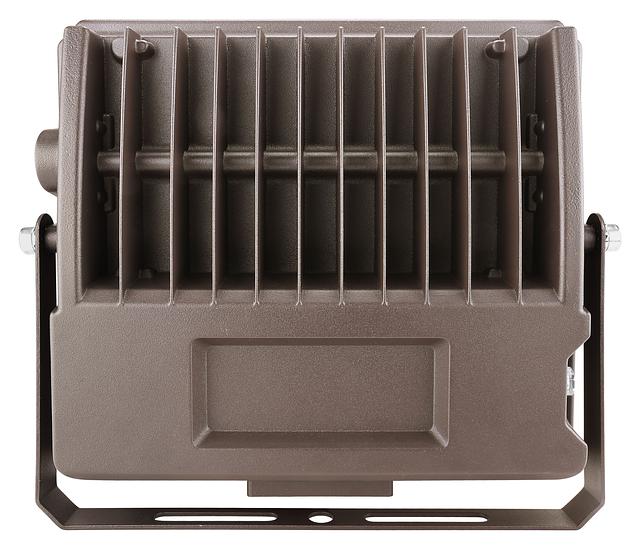

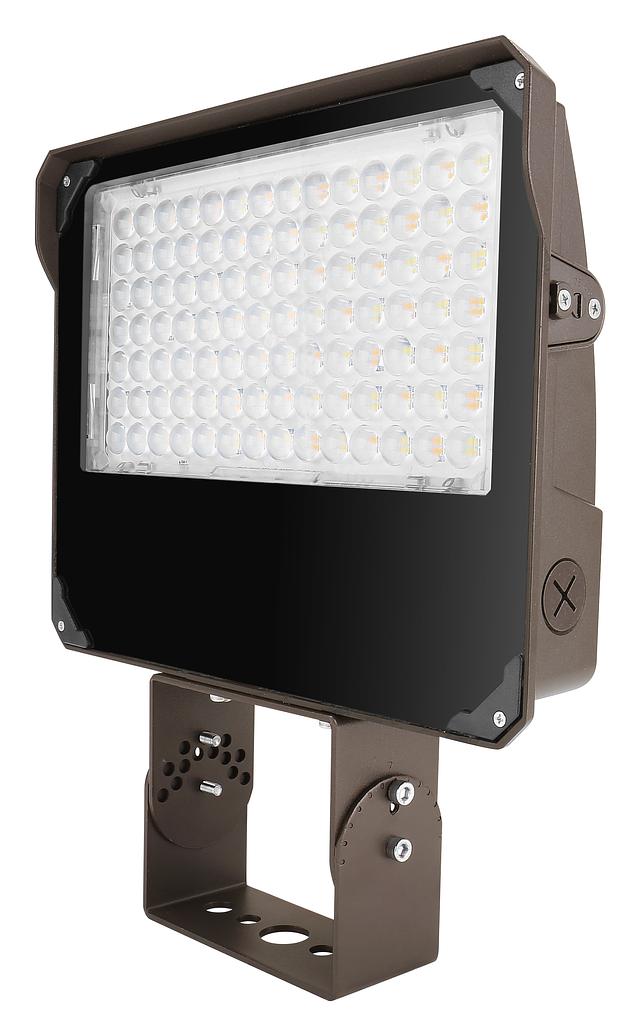

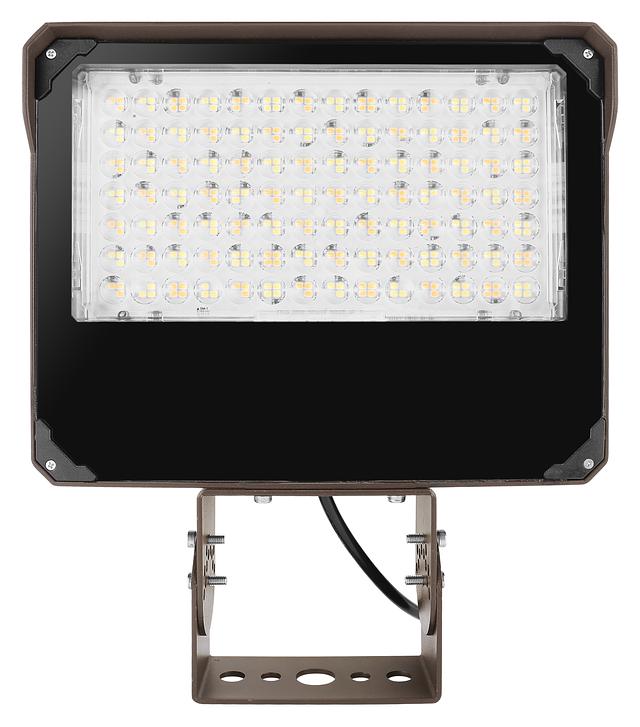

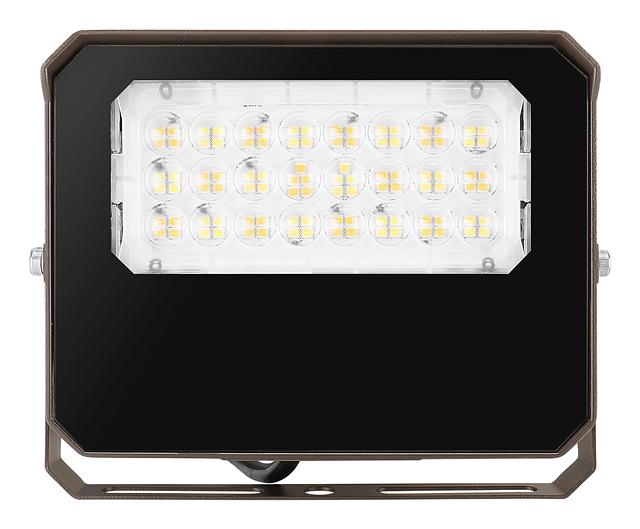

LED Floodlight Elite
The LITELUME™ Floodlight Elite (LL-FLE) is a high performance LED solution designed with versatility and a slim, low profile design. The rugged, die-cast aluminum housing with UV resistant powder coat finish minimizes wind load requirements and features an integral, watertight LED driver compartment along with high performance aluminum heat sinks. Featuring leading edge technology, this luminaire comes standard in field selectable color temperature, power & beam angle.
Applications: Spot & Flood Light, Flag Pole, Signage, Parking lots, Auto dealerships, Billboard, Façade, Wall Washing, Landscape, Elevation Illumination, and general outdoor lighting.
Resources
Die-cast Aluminum
Heat & Impact resistant toughened glass
Durable Protective Powder Coat
Heat & Impact resistant toughened glass
Durable Protective Powder Coat
Premium LED's
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard 0-10v Dimming, 10 - 100% Range
Field Selectable Lumens 1,800 to 21,960 lm
Field Selectable CCT
Field Selectable Beam Angle: 55º, 75º & 90º
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard 0-10v Dimming, 10 - 100% Range
Field Selectable Lumens 1,800 to 21,960 lm
Field Selectable CCT
Field Selectable Beam Angle: 55º, 75º & 90º
QuickShip Ordering Information
LL-FLE-4L-UNV-SCT-SP-BZ-KM-PC
LL-FLE-4L-UNV-SCT-SP-BZ-YK-PC
LL-FLE-13L-UNV-SCT-SP-BZ-KM-PC
LL-FLE-13L-UNV-SCT-SP-BZ-YK-PC
LL-FLE-22L-UNV-SCT-SP-BZ-TR-PC
LL-FLE-22L-UNV-SCT-SP-BZ-SF-PC
LED Flood Lights
LL-FLE-4L-UNV-SCT-SP-BZ-YK-PC
LL-FLE-13L-UNV-SCT-SP-BZ-KM-PC
LL-FLE-13L-UNV-SCT-SP-BZ-YK-PC
LL-FLE-22L-UNV-SCT-SP-BZ-TR-PC
LL-FLE-22L-UNV-SCT-SP-BZ-SF-PC
LED Flood Lights
Replaces 400W MH/PSMH
Replaces 320W MH/PSMH
Replaces 250W MH/PSMH
Replaces 175W MH/PSMH
Replaces 150W MH/PSMH
Replaces 100W MH/PSMH
Replaces 70W MH/PSMH
Watts
- 30 w
- 60 w
- 90 w
- 120 w
- 150 w
Beam Angle
- 55
- 75
- 90
CRI
- 80 CRI
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Grey
- White
Dimming Protocol
- 0-10 V
Dimming Range
- 10%
Distribution
- Asymmetric
- Flood
- Medium Flood
- Narrow
- Wide
Efficacy
- 175 lm/w
Lamp Life
- 50000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
Mounting

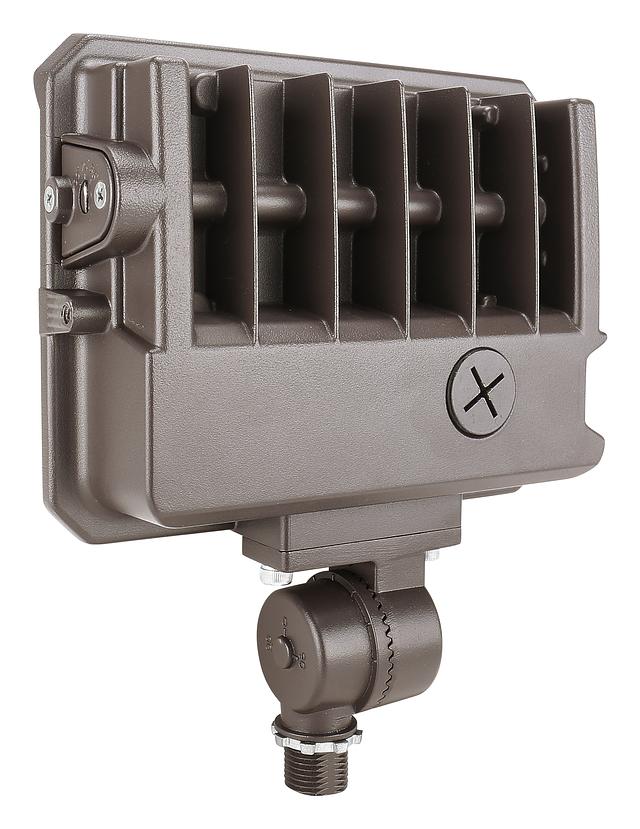

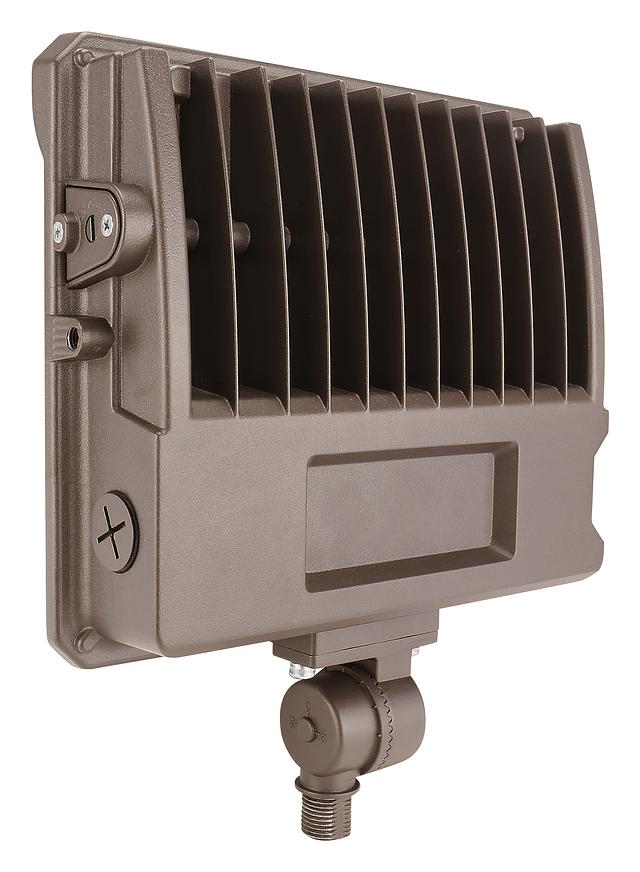

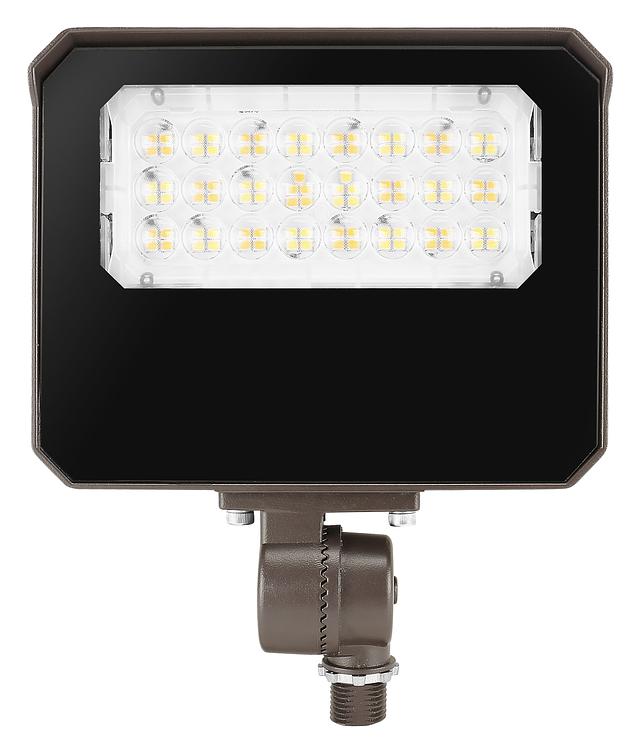

- Knuckle

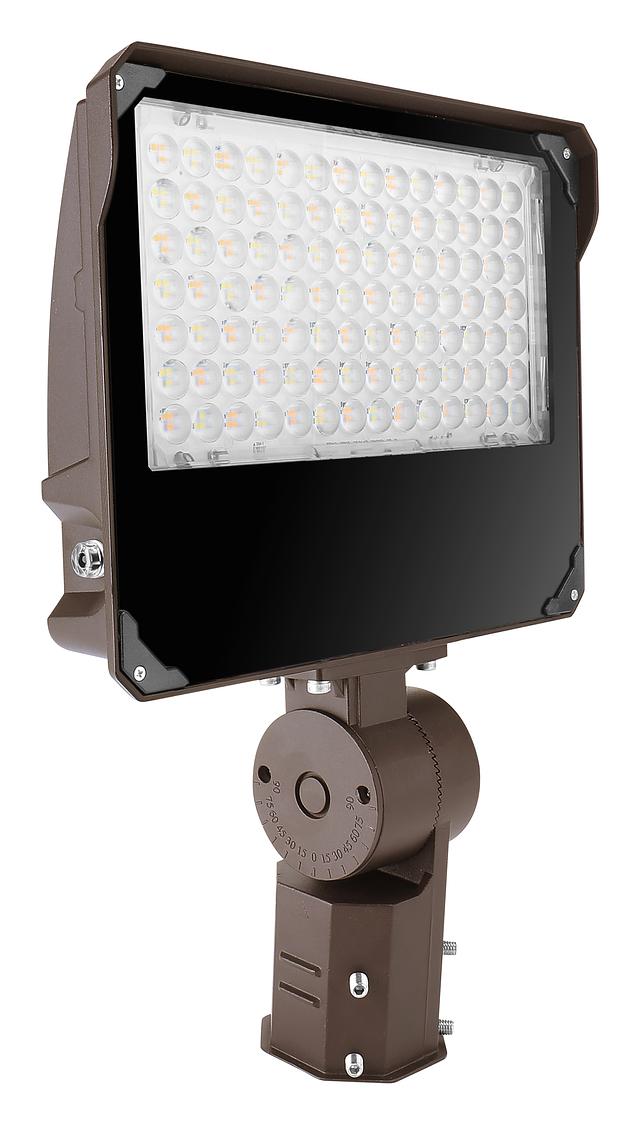

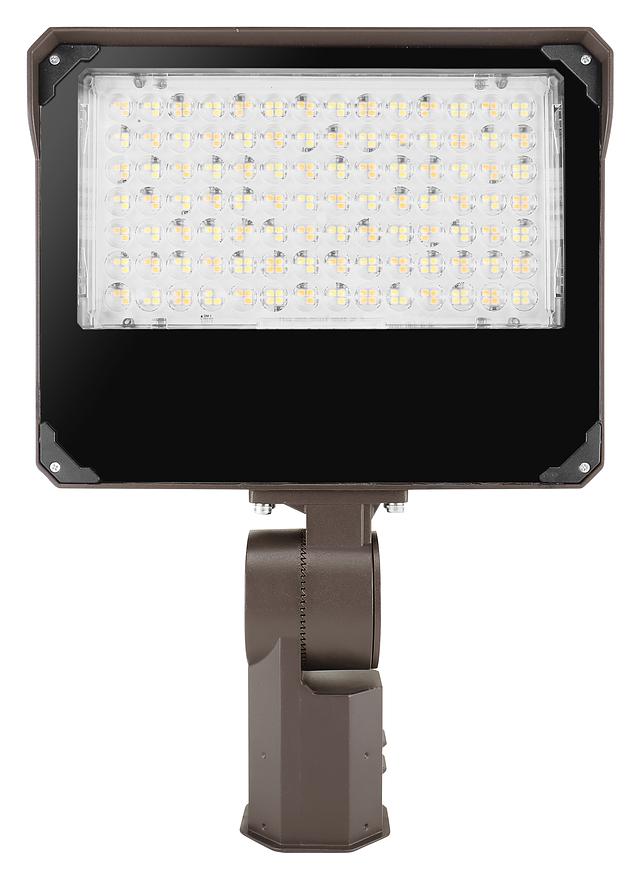

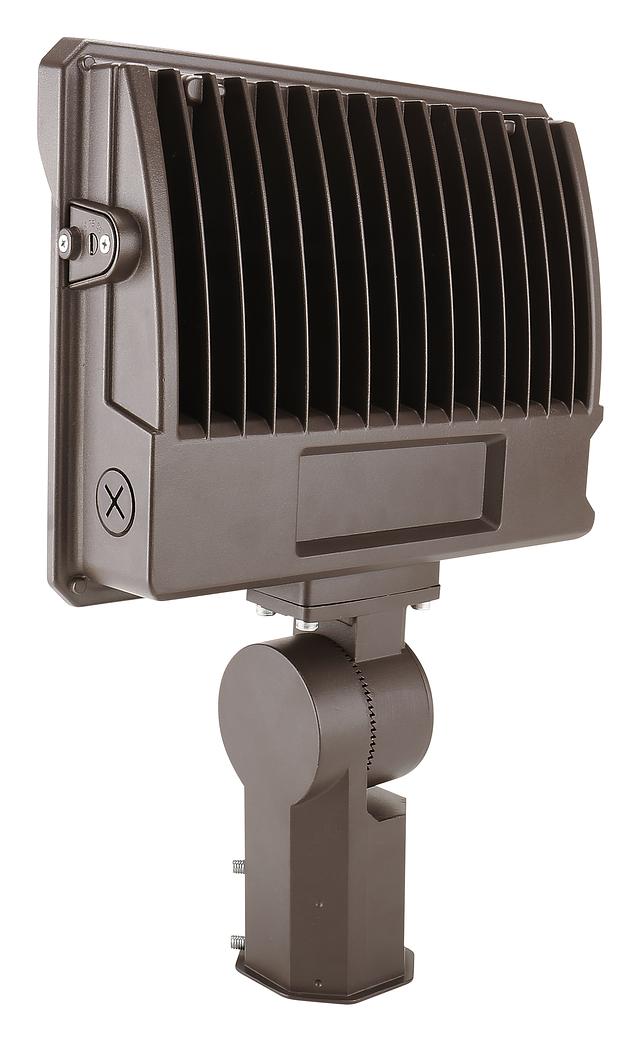

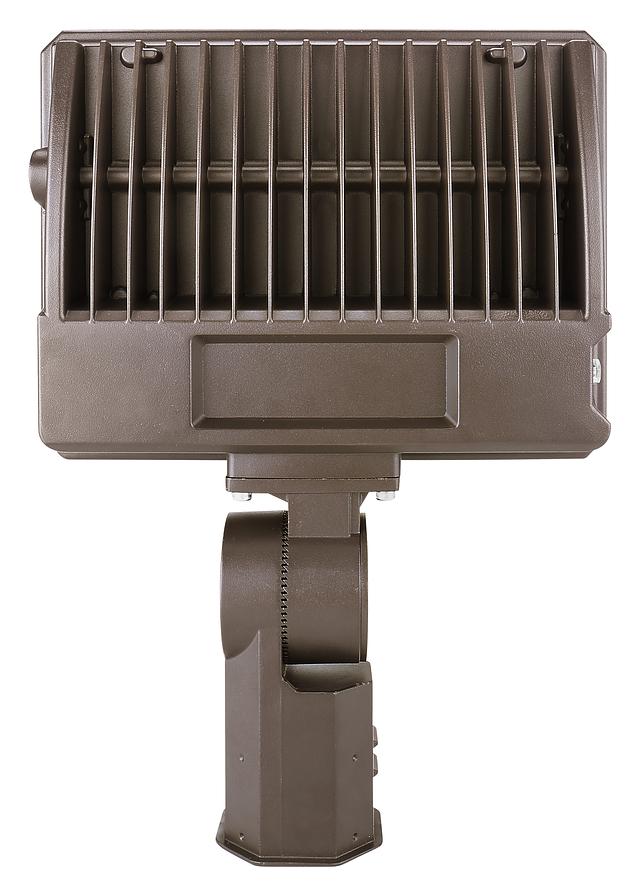

- Slip Fitter

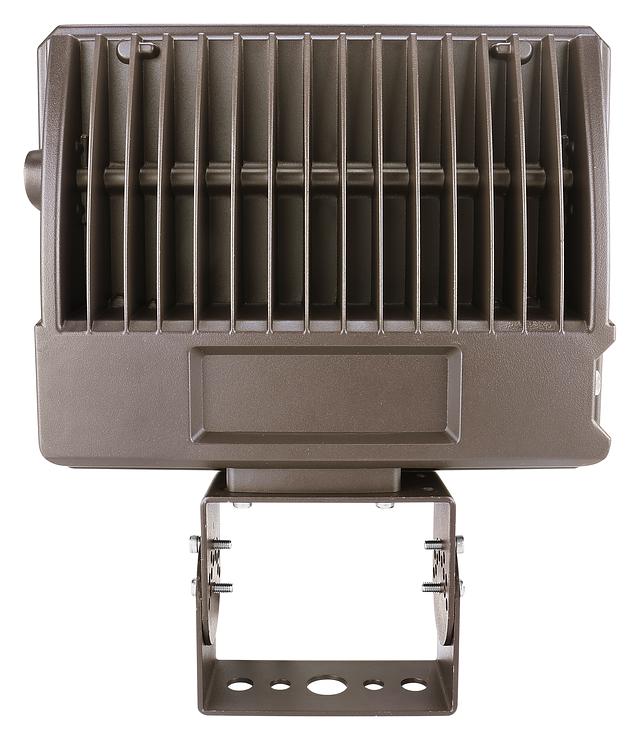

- Trunnion
- Yoke
Ratings & Compliance
- Buy America
- Buy American Act (BAA)
- DLC Premium
- IP65
- TAA
- Wet
Special Programs
- Quick Ship
Voltage
- 120-277 V
- 277-480 V
Warranty
- 10 yr
