LL-ASLHL
WM.jpegLL-ASLHL

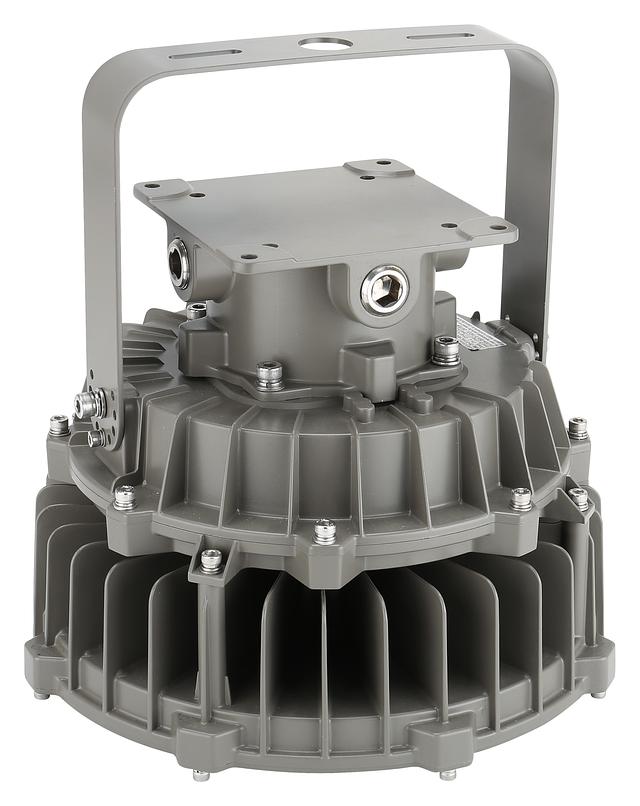

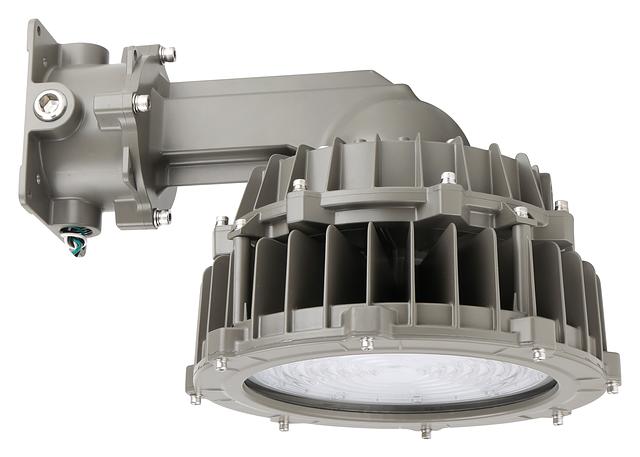

LED All Season Hazardous Location
The LITELUME™ All Season Hazardous Location (LL-ASLHL) Class 1, Division 2 Luminaire features a shatterproof polycarbonate lens & robust 3G Vibration rated diecast aluminum housing designed for special environments.
Typical lighting applications include industrial facilities, marine vessels, mining, chemical production & processing, oil & gas refineries and high humidity, dust and temperature facilities.
Resources
Die-cast Aluminum Housing
Powder Coat Finish Over a Chromate Conversion Coating
Shatterproof Polycarbonate
3G Vibration Rated
Powder Coat Finish Over a Chromate Conversion Coating
Shatterproof Polycarbonate
3G Vibration Rated
Premium LED's
Premium Driver
PF .90
CRI 80
THD <20%
High Efficacy up to 140 lm/W
Standard 0-10v Dimming
NEMA 4X
IP66
IK08
UL 844
UL 1598
Class 1, Division 2, Groups A, B, C, D
Class 2, Division 1, Groups E, F, G
Class 2, Division 2, Groups F, G
Class 3
Premium Driver
PF .90
CRI 80
THD <20%
High Efficacy up to 140 lm/W
Standard 0-10v Dimming
NEMA 4X
IP66
IK08
UL 844
UL 1598
Class 1, Division 2, Groups A, B, C, D
Class 2, Division 1, Groups E, F, G
Class 2, Division 2, Groups F, G
Class 3
QuickShip Ordering Information
LL-ASLHL-100-50-UNV-90-GY-TR
LL-ASLHL-100-50-480-90-GY-TR
LL-ASLHL-200-50-UNV-90-GY-TR
LL-ASLHL-200-50-480-90-GY-TR
LITELUME new LED lighting fixtures in Harsh & Hazardous environments Class 1 & Class 2, when delivered in new condition in its original packaging and installed properly by a licensed electrician, will be free of defects in workmanship for a period of TEN (10) YEARS from the date of original purchase. Litelume warrants these fixtures for (10) YEARS or 50,000 hours of which comes first. The LED driver and other internal components are warranted for (5) YEARS or 50,000 hours of which comes first.
LED Hazardous Lights
LL-ASLHL-100-50-UNV-90-GY-TR
LL-ASLHL-100-50-480-90-GY-TR
LL-ASLHL-200-50-UNV-90-GY-TR
LL-ASLHL-200-50-480-90-GY-TR
LITELUME new LED lighting fixtures in Harsh & Hazardous environments Class 1 & Class 2, when delivered in new condition in its original packaging and installed properly by a licensed electrician, will be free of defects in workmanship for a period of TEN (10) YEARS from the date of original purchase. Litelume warrants these fixtures for (10) YEARS or 50,000 hours of which comes first. The LED driver and other internal components are warranted for (5) YEARS or 50,000 hours of which comes first.
LED Hazardous Lights
Lumens
- 10500 Lm
- 15500 Lm
- 23000 Lm
- 31500 Lm
Watts
- 60 w
- 100 w
- 140 w
- 200 w
Beam Angle
- 60
- 90
- 120
CRI
- 80 CRI
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Custom
- Grey
- White
Dimming Protocol
- 0-10 V
Efficacy
- 154 lm/w
- 175 lm/w
Industrial Type
- Hazardous Location
- Vapor Proof
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
Mounting
- Pendant
- Stanchion
- Surface
- Trunnion
Ratings & Compliance
- Buy American Act (BAA)
- Class I Div II
- Class II Div II
- Class III
- IK08
- IP66
- Industrial
- Made in America
- Marine
- NEMA 4X
- TAA
- Wet
Special Programs
- Quick Ship
Voltage
- 120-277 V
- 480 V
Warranty
- 10 yr
