LL-EXEPAP
LL-EXEPAP-R-BACK.pngLL-EXEPAP

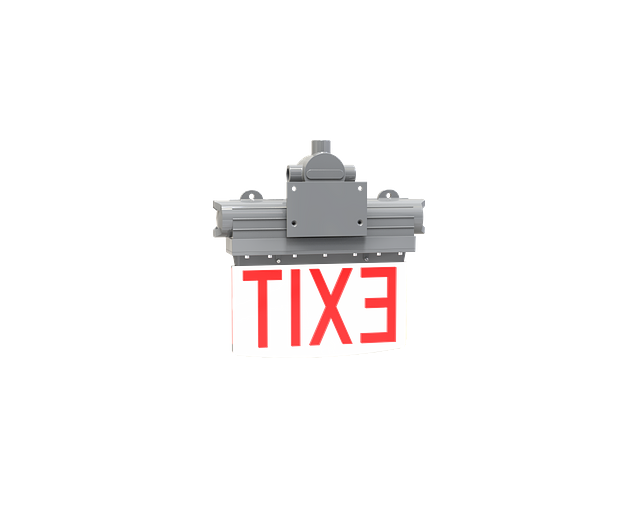

LED Exit Explosion Proof All Purpose
The LITELUMETM Exit Explosion Proof All Purpose (LL-EXEPAP) Class 1, Division 1 is built from A356-T6 Aluminum, stainless steel fasteners and tempered glass, with edge lit exit sign. Typical applications include marine, hazardous, industrial facilities, oil, gas, painting facilities, manufacturing, and auto service facilities.
Resources
A356-T6 Aluminum Housing
Baked-on epoxy finishĀ
Tempered Glass
Standard Wall Mount, Optional Pendant Mount with accessories or suspended mount
Top Opening 3/4 NPTĀ Standard ( Optional M25 )
Baked-on epoxy finishĀ
Tempered Glass
Standard Wall Mount, Optional Pendant Mount with accessories or suspended mount
Top Opening 3/4 NPTĀ Standard ( Optional M25 )
IP66
IK08
UL924
CSA NO.213, C22.2 No.137-18
Class l, Division 1, Groups B, C, D
Class l, Division 2, Groups A, B, C, D
Class 2, Division 1, Groups E, F, G
Class 2, Division 2, Groups E, F, G
Marine and Wet Locations
120-277V
Operating Temperature Range: -10Ā°C to 60Ā°C (14ĖF- + 140ĖF)
IK08
UL924
CSA NO.213, C22.2 No.137-18
Class l, Division 1, Groups B, C, D
Class l, Division 2, Groups A, B, C, D
Class 2, Division 1, Groups E, F, G
Class 2, Division 2, Groups E, F, G
Marine and Wet Locations
120-277V
Operating Temperature Range: -10Ā°C to 60Ā°C (14ĖF- + 140ĖF)
QuickShip Ordering Information
LL-EXEPAP-3-R-UNV-GY
LL-EXEPAP-5-G-UNV-GY
JB
PM12
Built to order Information
8 Weeks
LL-EXEPAP-3-R-UNV-GY
LL-EXEPAP-5-G-UNV-GY
JB
PM12
Built to order Information
8 Weeks
New Life Safety, Exit & Emergency products, when delivered in new condition in its original packaging and
installed properly by a licensed electrician, will be free of defects in workmanship for a period of SEVEN (7)
YEARS from the date of original purchase. Litelume warrants these products for (7) YEARS or 50,000 hours of
which comes first
Harsh & Hazardous environments Class 1 & Class 2 includes a LifePO Lithium iron phosphate battery
3 Years warranty on battery
LED Explosion Proof Lights
LED Hazardous Lights
LED Explosions Proof Exit Signs
LED Hazardous Exit Signs
installed properly by a licensed electrician, will be free of defects in workmanship for a period of SEVEN (7)
YEARS from the date of original purchase. Litelume warrants these products for (7) YEARS or 50,000 hours of
which comes first
Harsh & Hazardous environments Class 1 & Class 2 includes a LifePO Lithium iron phosphate battery
3 Years warranty on battery
LED Explosion Proof Lights
LED Hazardous Lights
LED Explosions Proof Exit Signs
LED Hazardous Exit Signs
Watts
- 3
- 5
Availability
- In Stock
- Quick Ship
Color / Finish
- Gray
Emergency Type
- Exit Signs
Industrial Type
- Explosion Proof
- Hazardous Location
Lamp Source
- LED
Listings
- ETL
- UL
Materials
- Aluminum
- Glass
- Stainless Steel
Mounting
- Pendant
- Suspended
- Wall
Ratings & Compliance
- Class I Div I
- Class I Div II
- Class II Div I
- Exterior
- Harsh Environments
- Hazardous Locations
- IK08
- IP66
- Industrial
- Interior
- Marine
- Wet
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
Warranty
- 7 yr
