LL-JJEP

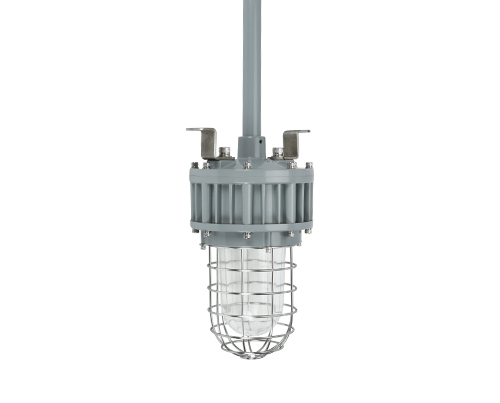

LL-JJEP-PM12.1.jpgLL-JJEP
LED Jelly Jar Explosion Proof
The LITELUME™ Jelly Jar Explosion Proof (LL-JJEP) Class 1, Division 1 Luminaire is a low wattage security light specifically designed for general illumination at hazardous locations. Typical lighting applications include industrial facilities, marine vessels, mining, chemical production & processing, oil & gas refineries and high humidity, dust and temperature facilities.
Resources
Die-cast Aluminum Housing
Powder Coat Finish Over a Chromate Conversion Coating
Clear Tempered Glass
3G Vibration Rated
Stainless steel 304 Hardware
Top Opening 3/4 NPT Standard ( Optional M25 )
Powder Coat Finish Over a Chromate Conversion Coating
Clear Tempered Glass
3G Vibration Rated
Stainless steel 304 Hardware
Top Opening 3/4 NPT Standard ( Optional M25 )
Premium LED's
Premium Meanwell driver
PF .90
CRI 80
THD <20%
High Efficacy up to 140 lm/W
Standard 0-10v Dimming
NEMA 4X
IP66
IK10
UL1598 and UL1598A
UL844
CSA C22.2 No.137/No.250.0
Class l, Division 1, Groups C, D
Class l, Division 2, Groups A, B, C, D
Class 2, Division 1, Groups E, F, G
Class 2, Division 2, Groups E, F, G
Class 3
Marine and Wet Locations
IECEX
ATEX
Premium Meanwell driver
PF .90
CRI 80
THD <20%
High Efficacy up to 140 lm/W
Standard 0-10v Dimming
NEMA 4X
IP66
IK10
UL1598 and UL1598A
UL844
CSA C22.2 No.137/No.250.0
Class l, Division 1, Groups C, D
Class l, Division 2, Groups A, B, C, D
Class 2, Division 1, Groups E, F, G
Class 2, Division 2, Groups E, F, G
Class 3
Marine and Wet Locations
IECEX
ATEX
QuickShip Ordering Information
LL-JJEP-20-50-UNV-GY
LL-JJEP-30-50-UNV-GY
LL-JJEP-40-50-UNV-GY
PS
PS25
WMA90JB
WMA25JB
WMA
PM12
PMB12
JB
Built to order Information
6 - 8 Weeks
LITELUME new LED lighting fixtures in Harsh & Hazardous environments Class 1 & Class 2, when delivered in new condition in its original packaging and installed properly by a licensed electrician, will be free of defects in workmanship for a period of TEN (10) YEARS from the date of original purchase. Litelume warrants these fixtures for (10) YEARS or 50,000 hours of which comes first. The LED driver and other internal components are warranted for (5) YEARS or 50,000 hours of which comes first.
LED Explosion Proof Lights
LED Hazardous Lights
LL-JJEP-30-50-UNV-GY
LL-JJEP-40-50-UNV-GY
PS
PS25
WMA90JB
WMA25JB
WMA
PM12
PMB12
JB
Built to order Information
6 - 8 Weeks
LITELUME new LED lighting fixtures in Harsh & Hazardous environments Class 1 & Class 2, when delivered in new condition in its original packaging and installed properly by a licensed electrician, will be free of defects in workmanship for a period of TEN (10) YEARS from the date of original purchase. Litelume warrants these fixtures for (10) YEARS or 50,000 hours of which comes first. The LED driver and other internal components are warranted for (5) YEARS or 50,000 hours of which comes first.
LED Explosion Proof Lights
LED Hazardous Lights
Lumens
- 2660 Lm
- 2800 Lm
- 3848 Lm
- 4050 Lm
- 5320 Lm
- 5600 Lm
Watts
- 20 w
- 30 w
- 40 w
Availability
- In Stock
- Quick Ship
Beam Angle
- 120
CRI
- 80 CRI
CCT
- 4000K
- 5000K
Color / Finish
- Gray
Dimming Protocol
- 0-10 V
Industrial Type
- Explosion Proof
- Hazardous Location
- Vapor Proof
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- ETL
- UL
Materials
- Die-Cast Aluminum
- Glass
Mounting
- Ceiling
- Pendant
- Stanchion
- Surface
- Wall
Ratings & Compliance
- Class I Div I
- Class I Div II
- Class II Div II
- Class III
- Class III Div I
- Class III Div II
- Exterior
- IK10
- IP66
- Industrial
- Marine
- NEMA 4X
- Wet
Shape
- Jelly Jar
Special Programs
- Quick Ship
Voltage
- 120-277 V
- UNV
Warranty
- 10 yr
