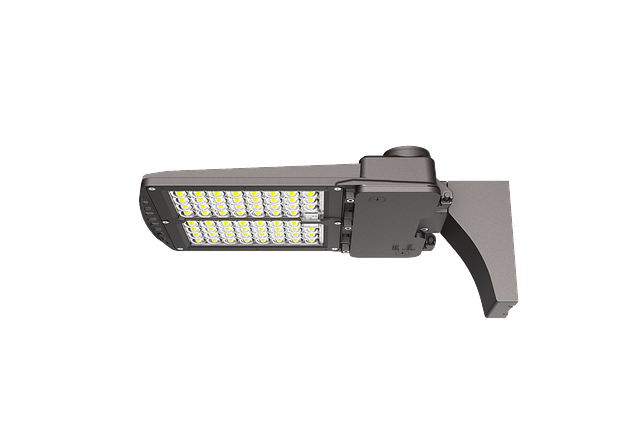

LL-ALS-Pole Mount.png

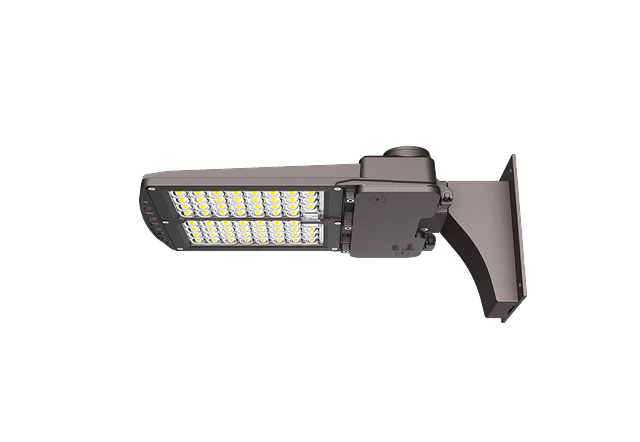

LL-ALS-Wall Mount.png

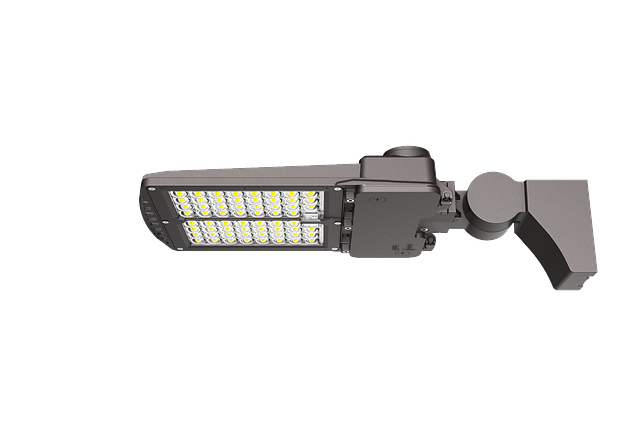

LL-ALS-Pole Mount Adjustable.png

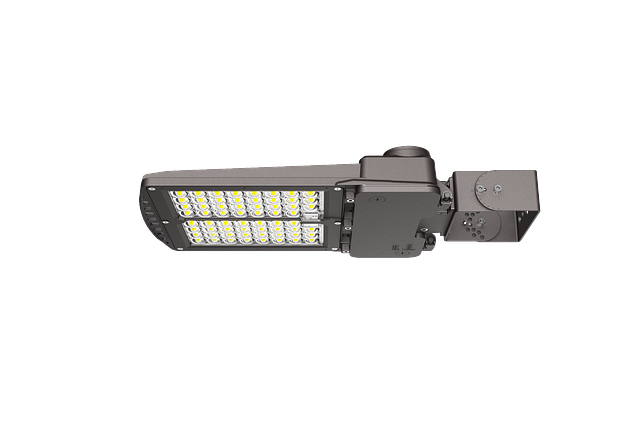

LL-ALS-Trunnion Mount.png

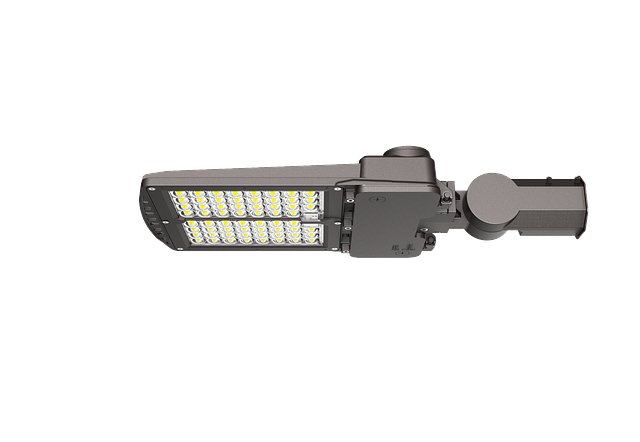

LL-ALS-Slipfitter Mount.png

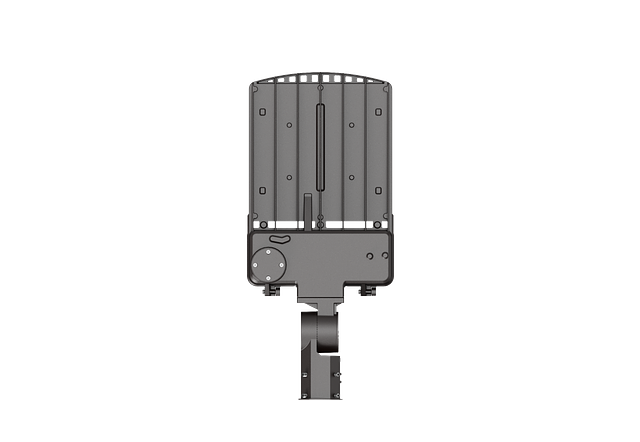

LL-ALS-Slipfitter-Rear.pngLL-ALS (G11)
LED Area Light Small Generation 11
The LITELUME™ Area Light Small (LL-ALS) Generation 11 features the latest in technology, combining style, performance and competitiveness. Featuring a rugged one piece die-cast aluminum housing with outstanding corrosion protection, and secondary UV resistant polycarbonate optics. Compact in design, low profile, and aesthetically pleasing with its steady well defined construction. The highly functioning Field Selectable Power, Color Temperature and Distribution Optics provide maximum flexibility to make the ALS the premier outdoor area light.
Resources
Durable one-piece die-cast aluminum housing
Low profile, 1.5G vibration rated compact design
Housing is completely sealed against moisture and environmental contaminants
Polycarbonate lens
Protective Powder Coat
Standard Audio Jack Controls Ready
Low profile, 1.5G vibration rated compact design
Housing is completely sealed against moisture and environmental contaminants
Polycarbonate lens
Protective Powder Coat
Standard Audio Jack Controls Ready
Premium LED's
Ultra efficient driver
Universal 120-277V AC or 277-480V AC input voltage.
Standard 10KV(@120-277V) or 20KV(@277-480V) surge protection
PF .90
CRI 80
THD <15%
Standard 0-10v dimming with 10 - 100% range
Field Selectable Power lumen range of 9,800 to 24,500 lm
Field Selectable Color Temperature 3000k, 4000k, and 5000k
Field Selectable Distribution Type II, III, IV, V
Operating temperature: -40℃ to 50℃ (-40°F to 122°F)
Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
Ultra efficient driver
Universal 120-277V AC or 277-480V AC input voltage.
Standard 10KV(@120-277V) or 20KV(@277-480V) surge protection
PF .90
CRI 80
THD <15%
Standard 0-10v dimming with 10 - 100% range
Field Selectable Power lumen range of 9,800 to 24,500 lm
Field Selectable Color Temperature 3000k, 4000k, and 5000k
Field Selectable Distribution Type II, III, IV, V
Operating temperature: -40℃ to 50℃ (-40°F to 122°F)
Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
QuickShip Ordering Information
LL-ALS-24L-UNV-SCT-SP-SD-BZ
ALSPM
ALSPMA
ALSWM
ALSSF
ALSTR
LED Area Light Generation 11
LL-ALS-24L-UNV-SCT-SP-SD-BZ
ALSPM
ALSPMA
ALSWM
ALSSF
ALSTR
LED Area Light Generation 11
Availability
- In Stock
- Quick Ship
CRI
- 80
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Custom
- Custom RAL
- Gray
- White
Controls Options
- Bi-level Dimming
- Bluetooth
- Daylight Harvesting
- Daylight Occupancy Sensor
- Daylight Sensor
- Dimmable
- High Frequency Microwave
- Luminaire-Level Lighting Controls
- Microwave Sensor
- Motion Sensor
- Network Wireless Control
- Occupancy Sensor
- PIR Sensor
- Passive Infrared
- Photocell
- Scheduling
- Synapse
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
- Synapse
Distribution
- Type 2
- Type 3
- Type 4
- Type 5
Efficacy
- 175
Installation Type
- New Construction
- Retrofit & Remodel
Lamp Life
- 100000
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
- Polycarbonate
Mounting
- Pole
- Slip Fitter
- Trunnion
- Wall
Ratings & Compliance
- Exterior
- IP66
- NLC
- TAA
- Title 24
- Wet
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
- 277-480 V
Warranty
- 10 yr
