Resources

Die-cast Aluminum Housing
Powder Coat Finish Over a Chromate Conversion Coating
Clear Tempered Glass
3G Vibration Rated
Stainless steel 304 Hardware
Side Openings 3/4 NPT Standard ( Optional M20, M25, 1/2 NPT )

Premium LED's
Premium Meanwell driver
PF .90
CRI 80
THD <20%
Standard 0-10v Dimming
NEMA 4X
IP66
IK08
UL1598 and UL1598A
UL8750
UL924
ABS
CSA
Class 1 Division 2, Group A, B, C, D T6/T5/T4

Class 2 Division 1, Group E, F, G T80°C/T95°/T130°C

Class 2 Division 2, Group F, G T80°C/T95°C/T130°C

Class 2

QuickShip Ordering Information

LL-JJHL-20-50-UNV-GY-CM
LL-JJHL-27-50-UNV-GY-CM

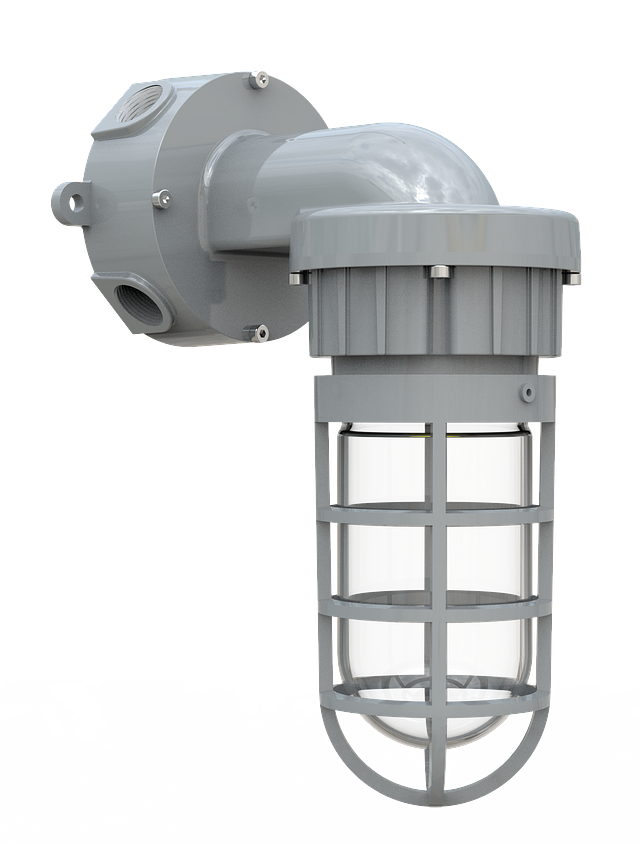

LL-JJHL-20-50-UNV-GY-WM90
LL-JJHL-27-50-UNV-GY-WM90

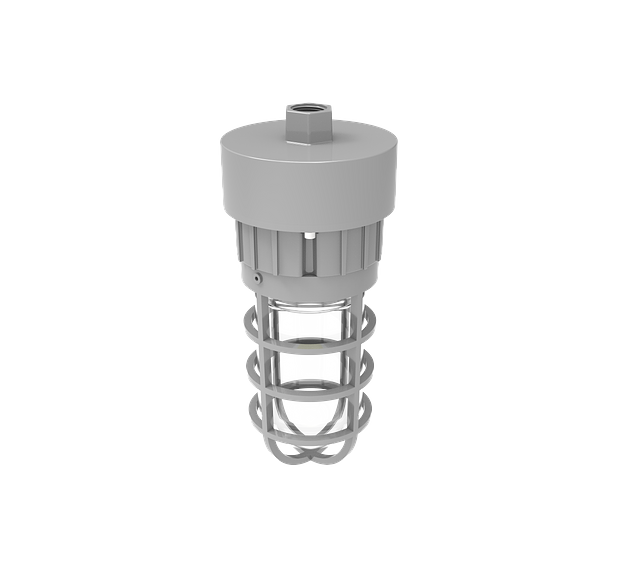

PM12
JB

Built to order Information
6 - 8 Weeks

LITELUME new LED lighting fixtures in Harsh & Hazardous environments Class 1 & Class 2, when delivered in new condition in its original packaging and installed properly by a licensed electrician, will be free of defects in workmanship for a period of TEN (10) YEARS from the date of original purchase. Litelume warrants these fixtures for (10) YEARS or 50,000 hours of which comes first. The LED driver and other internal components are warranted for (5) YEARS or 50,000 hours of which comes first.

LED Hazardous Lights
