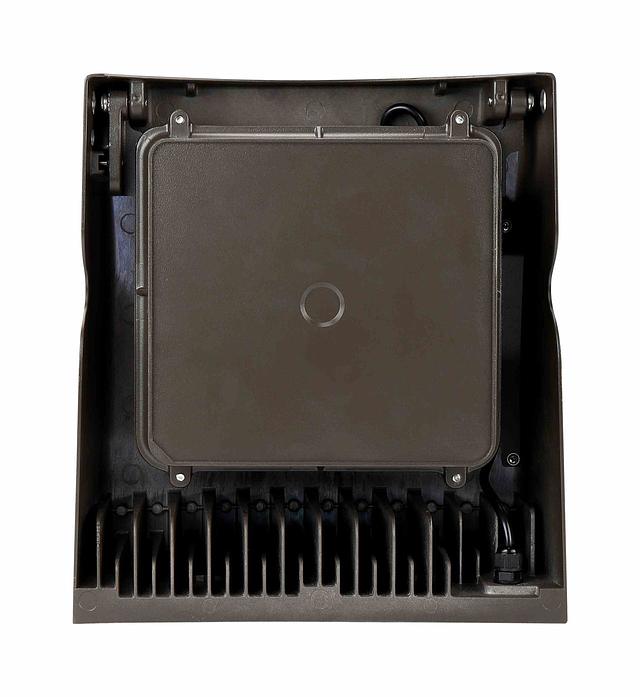

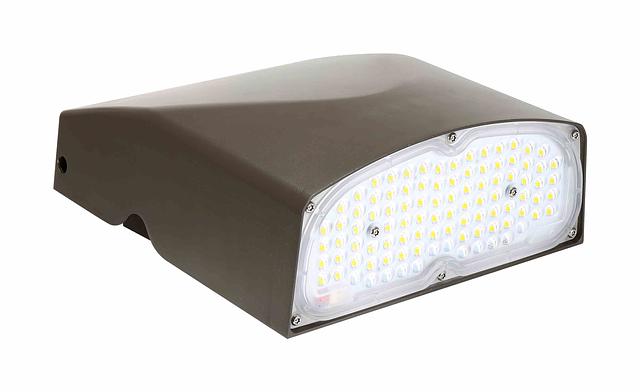

LL-WPA

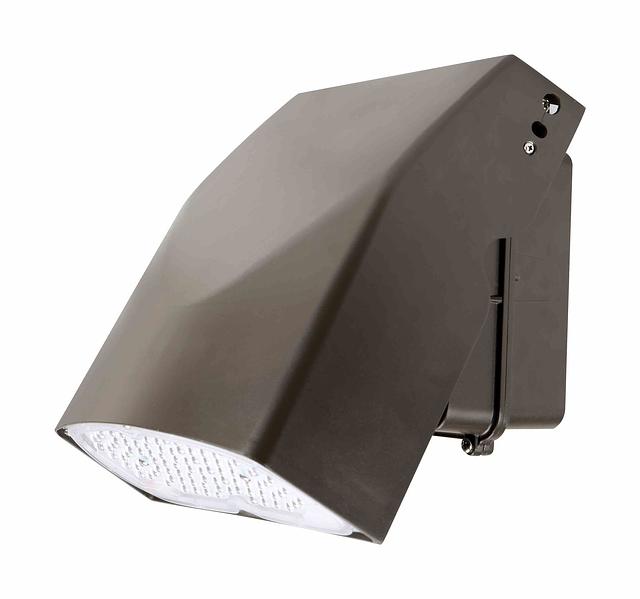

LL-WPA-SIDE.1.jpegLL-WPA
LED Wallpack Adjustable
The LITELUME™ Wallpack (LL-WPA) is a full cutoff LED lighting fixture that features a durable, die-cast aluminum profile and optional 20°head tilt. Applications: Entryways, Tunnels, and Walkways, Exterior Wall Lighting, Building Entrances, Pedestrian Walkways, Multi-use Facilities, Industrial Facilities, Parking Lots, Storage Facilities, Education, Multi-Family, Retail, Office buildings, apartments, town homes, man doors and a broad spectrum of overall multi-family, service and industrial applications.
Resources
High Impact Die-cast Aluminum
Protective powder Coat
Heat & Impact resistant Glass Lens
Compact Robust Design
Rated for inverted use under a canopy
Protective powder Coat
Heat & Impact resistant Glass Lens
Compact Robust Design
Rated for inverted use under a canopy
Premium LED's
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard Dimming 0-10V, 10-100%
Field Selectable Lumens 3,600 to 11,400 lm
Field Selectable CCT
Ultra efficient driver
PF .90
CRI 80
THD <20%
Standard Dimming 0-10V, 10-100%
Field Selectable Lumens 3,600 to 11,400 lm
Field Selectable CCT
QuickShip Ordering Information
LL-WPA-20-50-UNV-BZ
LL-WPA-20-40-UNV-BZ
LL-WPA-27-50-UNV-BZ
LL-WPA-27-40-UNV-BZ
LL-WPA-40-50-UNV-BZ
LL-WPA-40-40-UNV-BZ
LL-WPA-67-50-UNV-BZ
LL-WPA-67-40-UNV-BZ
LL-WPA-80-50-UNV-BZ
LL-WPA-80-40-UNV-BZ
LL-WPA-[16][24][32][40]-3CCT-UNV-BZ-PC
LL-WPA-[32][48][64][80]-3CCT-UNV-BZ-PC
LED Door Pack
LED Full Cutoff Wall Pack
LED Wall Pack Lights
Field Adjustable Wall Pack
LL-WPA-20-50-UNV-BZ
LL-WPA-20-40-UNV-BZ
LL-WPA-27-50-UNV-BZ
LL-WPA-27-40-UNV-BZ
LL-WPA-40-50-UNV-BZ
LL-WPA-40-40-UNV-BZ
LL-WPA-67-50-UNV-BZ
LL-WPA-67-40-UNV-BZ
LL-WPA-80-50-UNV-BZ
LL-WPA-80-40-UNV-BZ
LL-WPA-[16][24][32][40]-3CCT-UNV-BZ-PC
LL-WPA-[32][48][64][80]-3CCT-UNV-BZ-PC
LED Door Pack
LED Full Cutoff Wall Pack
LED Wall Pack Lights
Field Adjustable Wall Pack
Lumens
- 2600 Lm
- 5200 Lm
- 8800 Lm
- 10500 Lm
Watts
- 20 w
- 40 w
- 65 w
- 80 w
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- White
Controls Options
- Photocell
Dimming Protocol
- 0-10 V
Dimming Range
- 10%
Distribution
- Type III
Efficacy
- 143 lm/w
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
Ratings & Compliance
- Buy American Act (BAA)
- Exterior
- IP65
- TAA
- Wet
Special Programs
- Quick Ship
Voltage
- 120-277 V
- UNV
Warranty
- 10 yr
