LL-CYLDP

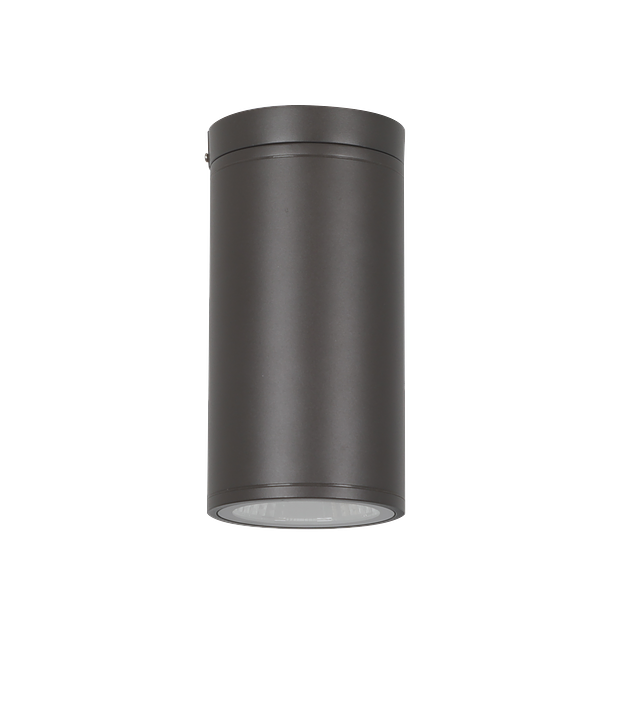

LL-CYLDP-SM.jpgLL-CYLDP
LED Cylinder Down Light Premium
The LITELUME™ LED Cylinder Down Light Premium (LL-CYLDP) is a specification grade field adjustable Downlight luminaire designed for retrofit or new construction. Available in surface mount, suspended with cord mount and optional rigid stem mount. Featuring 5 color adjustable CCT, and 3 different field selectable lumen selections, allowing for customized energy savings and comfortability.
Applications include hospitals, schools, restaurants, offices, hallways, conference rooms, bathrooms and many other commercial, residential & Hospitality areas.
Applications include hospitals, schools, restaurants, offices, hallways, conference rooms, bathrooms and many other commercial, residential & Hospitality areas.
Resources
Specification Grade
High Grade Die Cast Aluminum
Striking Architectural Appeal
Premium Powder Coat Finish
Silicon Dioxide Glass Lens
59" Power Cord (LL-CYLDP-CM-2L-UNV-SCT-SP-BZ)
High Grade Die Cast Aluminum
Striking Architectural Appeal
Premium Powder Coat Finish
Silicon Dioxide Glass Lens
59" Power Cord (LL-CYLDP-CM-2L-UNV-SCT-SP-BZ)
Premium New Generation Cob LED
Ultra efficient driver
PF .90
CRI 90
THD <20%
Surge Protection 4kV
Standard 0-10v Dimming 10% - 100%
Field Selectable CCT
Field Selectable Lumens
Operating Temperature -40F - 113F
Standard 40 Degree Beam Angle, with Field Replaceable 25 and 60 Degree Beam Reflectors Available
Rated Lifetime of 140,000 Hours
cULus listed for wet locations
Complies with FCC part 15, class B
IP65 rated for ingress protection
COMPATIBLE DIMMERS AND CONTROLS
Leviton IP710-LFZ 10%-100% 1200w Load Switching Capacity
Lutron DVSTV 10%-100% 450w Load switching Capacity
Ultra efficient driver
PF .90
CRI 90
THD <20%
Surge Protection 4kV
Standard 0-10v Dimming 10% - 100%
Field Selectable CCT
Field Selectable Lumens
Operating Temperature -40F - 113F
Standard 40 Degree Beam Angle, with Field Replaceable 25 and 60 Degree Beam Reflectors Available
Rated Lifetime of 140,000 Hours
cULus listed for wet locations
Complies with FCC part 15, class B
IP65 rated for ingress protection
COMPATIBLE DIMMERS AND CONTROLS
Leviton IP710-LFZ 10%-100% 1200w Load Switching Capacity
Lutron DVSTV 10%-100% 450w Load switching Capacity
QuickShip Ordering Information
LL-CYLDP-SM-2L-UNV-SCT-SP-BZ
LL-CYLDP-CM-2L-UNV-SCT-SP-BZ
CYLDP-STEM-BZ
CYLDP-JBC-BZ
CYLDP-25D
CYLDP-60D
LED Cylinder Downlight
LED Architectural Pendant
LL-CYLDP-SM-2L-UNV-SCT-SP-BZ
LL-CYLDP-CM-2L-UNV-SCT-SP-BZ
CYLDP-STEM-BZ
CYLDP-JBC-BZ
CYLDP-25D
CYLDP-60D
LED Cylinder Downlight
LED Architectural Pendant
Lumens
- 1200 Lm
- 1600 Lm
- 2000 Lm
Watts
- 11 w
- 15 w
- 19 w
Weight
- 2 lbs
Availability
- In Stock
- Quick Ship
Beam Angle
- 25
- 40
- 60
CRI
- 90 CRI
CCT
- Field Selectable CCT
- 2700K
- 3000K
- 3500K
- 4000K
- 5000K
Color / Finish
- Bronze
Dimensions
- H: 8.27 In. L: 4.17 In. W: 4.17 In.
Dimming Protocol
- 0-10 V
Dimming Range
- 10%
Distribution
- Direct
- Medium
- Medium Narrow
- Narrow
Efficacy
- 103 lm/w
Lamp Life
- 140000 hrs
Lamp Source
- LED
Listings
- UL
- cULus
Materials
- Die-Cast Aluminum
- Glass
Mounting
- Ceiling
- Stem
- Surface / Canopy
- Suspended
Ratings & Compliance
- Exterior
- FCC
- IP65
- Wet
Shape
- Cylinder
Special Programs
- Quick Ship
- Stock
Voltage
- 120-277 V
- UNV
Warranty
- 10 yr
