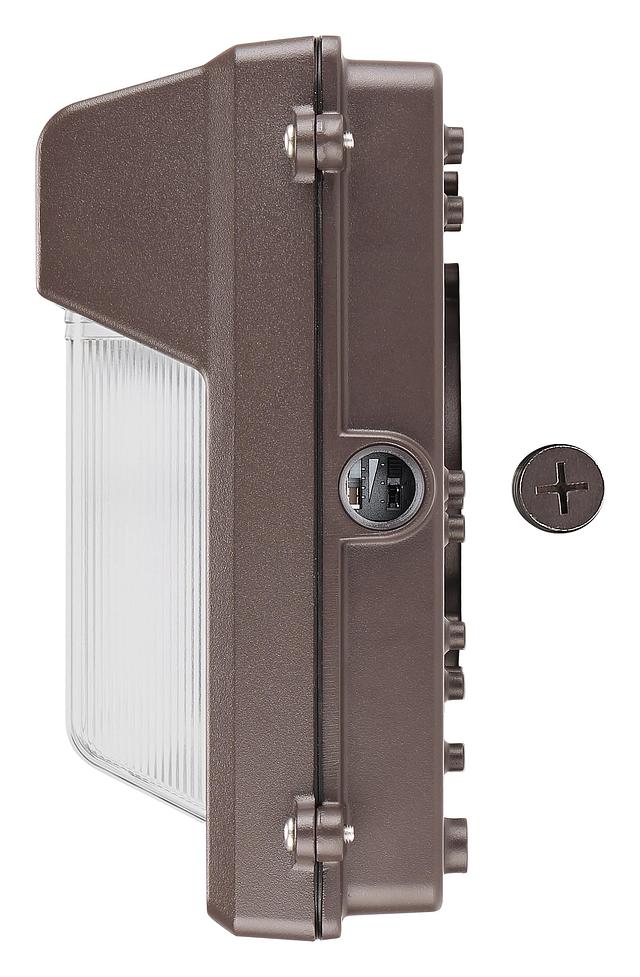

WP16 60W-Side 1.jpg
WP16 60W-Front.jpg
WP16 120W-back.jpg
WP16 CCT & Watts Selectable.jpg
WP16-Photocell.jpgLL-WPG
Wallpack Glass
The LITELUME™ Wallpack Glass (LL–WPG) features a die-cast aluminum housing with a glass optical lens for long-lasting durability. Specification Grade, available for retrofit or new construction. Featuring 4 level lumen output and 3 level adjustable CCT, along with a standard ON/OFF photocell with dip switch. The sleek and low profile appearance brings modern aesthetics to a traditional wallpack.
Applications: Site, Hallway, Perimeter lighting and Walkway lighting.
Resources
Lumens
- 4300 Lm
- 5000 Lm
- 6400 Lm
- 7500 Lm
- 8500 Lm
- 10200 Lm
- 12500 Lm
- 14500 Lm
- 16500 Lm
Watts
- 25 w
- 30 w
- 40 w
- 50 w
- 60 w
- 70 w
- 80 w
- 90 w
- 100 w
- 120 w
CRI
- 80 CRI
CCT
- Field Selectable CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Grey
- White
Controls Options
- Photocell
Dimming Protocol
- 0-10 V
Dimming Range
- 10%
Distribution
- Type III
Efficacy
- 133 lm/w
- 172 lm/w
Lamp Life
- 100000 hrs
Lamp Source
- LED
Listings
- UL
Materials
- Die-Cast Aluminum
Mounting
- Wall
Emergency Options
- Integral EM Battery
Ratings & Compliance
- Buy American Act (BAA)
- TAA
- Wet
Voltage
- 120-277 V
Warranty
- 10 yr
